Olidesmart Olide-120B Automatic Swing Door Opener with PIR Sensor

  • $573.07
Shipping calculated at checkout.

Only 127 left!

Olidesmart Automatic Swing Door Opener with PIR Sensor Video

The olide-120b is a kit with an automatic door opener for both inswinging and outswinging doors and  two stainless handicap push to exit buttons for automatic doors.

This system is designed to secure your door and have the capabilities of automatically and manually opening and closing it as well. A simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.

Olidesmart Automatic Swing Door Opener Complete Kit with PIR Sensor


Passive infrared sensor swing door closer entrance system

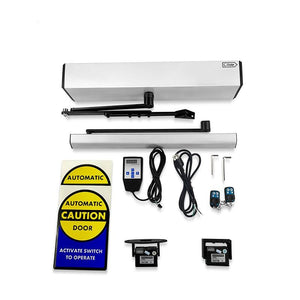

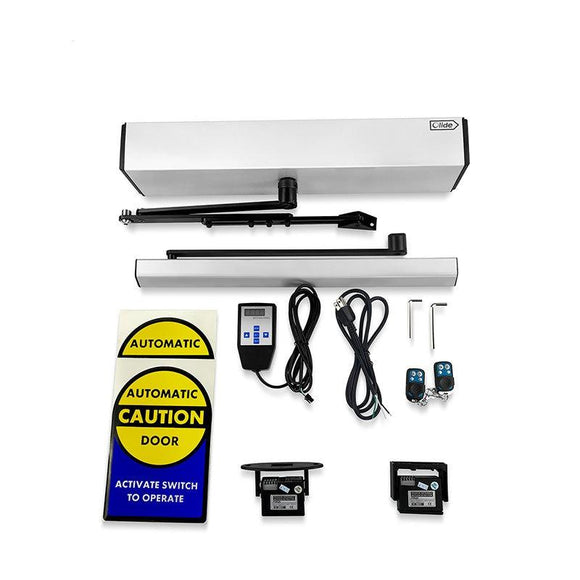

One set electric door opener includes: Opener,  2 arms, 2 remotes,1 hand programmer, 2 push buttons,2 body sensors

Push arm and pull arm both available, can be mounted on the hinge side and opposite hinge side.

automatic swing door opening direction

Motion Sensor Automatic Swing Door Opener Applications and Advantages

  • Commercial: Shop mall, Hospital,ect.
  • Residential: bathroom room, bedroom, patio,etc.
olidesmart automatic swing door opener with PIR sensor

touchless open automatic swing door opener

Hands free motion sensor activate the swing door, widely in both residential swing door and commercial swing door.

Motion Sensor Features

It can be used as supporting motion sensors for various autodoors, particularly suitable for auto rotation doors and are doors as well as sliding autodoors, both concealed mounting and surface mounting are acceptable.

  • A whole set of passive detector made in Germany is used and the shape, structure is reasonable and convenient, with strong auti-interference ability, high sensitivity, unique zoom design and light control device.
  • The focusing angle is adjustable, so that the sensor detects the designated focus area.
  • Special signal contact  output is adjustable between normally open and closed, so that anode detection can transmit in case of power failure or power cable disconnection.

motion sensor

More detail about motion sensor

Olide120bs Automatic Swing Door Opener Characters:

  • Reinforced high strength aluminum alloy and imported original parts used.Imported motor from Germany with fast speed and service life of more than 1 million times,it can work stable and with smooth operation.
  • Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage.
  • Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.
  • Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.
  • The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (lock, normally open, reset, automatic).
  • The swing door opener model olide120bs can bear withstand the door weight of 120kgs(264.55lbs).

    Motion Sensor Automatic Swing Door Opener Control Panel Detail

    olide handicap door opener manually/automatic
    automatic door closer for disabled

    Parameters easily adjustable by hand programmer:
    ①Opening or closing speeds
    ​②Manually open force (Push go function)
    ③Opening direction
    ④Hold-open time

    Wiring Diagram

    olidesmart dsw120 wiring diagram with motion sensor

    Motion Sensor Automatic Swing Door Opener Technical Specifications

    • Model Number: olide-120bs
    • Brand Name: olide
    • Rated power: 50W
    • Power input: 220V/AC 110V/AC 50/60Hz
    • Door width: 1200mm
    • Door weight: 120kgs
    • Material: Aluminum alloy
    • Feature: Smooth, quiet operation
    • Motor: DC 24V brushless motor


    DSW120 Swing Door Opener Manual

    We Also Recommend


    Ask a Question
    • Do the body sensors serve as a trigger to open the door or do they serve to detect non-presence for closure?

      Hi, it is triggered to open the door, it will automatically open the door when it detects the human body

    • Can it be used outside?

      Yes,it can be

    • Does it work with power supply AC110V?

      Yes,the input power supply can be AC100V-AC240V

    • i need a controller for olide-120bs

      You can place order thru the product link directly: https://www.olidesmart.com/collections/olide-120b/products/olide-120b-automatic-swing-door-opener-controller?variant=40574090051627

    • does it also work the lock on the door?

      Do you mean the door handle lock on the door? If yes, you need keep the handle lock unlocked or open the lock by hand first, the door will open automatically.
