Automatic Motion Sensor, Passive Infrared Sensor For Automatic Door,Manufacturer

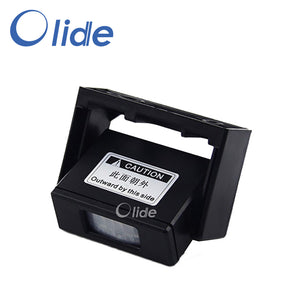

Automatic Motion Sensor
It can be used as supporting motion sensors for various autodoors, particularly suitable for auto rotation doors and arc doors as well as sliding autodoors, both concealed mounting and surface mounting are acceptable.
Passive Infrared Sensor For Automatic Door Functions:
- Production of ABS fireproof materials
Safer to use, heat-resistant and fire retardant;
Selected ABS material, fire-proof and fire retardant with high protection grade! Longer service life.
- Intelligent function
Induction sensitivity and zoom range can be set；
Sensitivity of the sensor and zoom range of the detection area can be intelligently regulated.
- Original emission sensor components
Original components, steady operation, high emission frequency, after-sale protection;
Imported high quality inner cores are adopted, transmitter sensing detection is accurate and suitable for various background enviroment.
- Exposed/concealed installation
The products are beautiful in appearance, equipped with special bracket for exposed installation and bottom case for concealed installation;
Designed with selected plastic, two mounting method-swivel bracket for exposed installation or bottom case for concealed installation with very strong applicability！
Olide Automatic Motion Sensor Features：
Fire Retardant materials, imported components, safe and stable, more durable, affordable brand products.
- Integral face cover design, beautiful and rainproof, dustproof, easy to fix, simple wiring
- Can be matched with various automatic doors and electric doors, can effectively prevent all kinds of collision between the human body and the goods
- Intelligent background learning system is adopted, which can automatically adapt to different reflective material for the background, so as to be suitable for installation and use on all
- Exposed installation and concealed installation can be selected with wide mounting scope, and can meet various installation conditions.
- Passive infrared sensor, just install on the side, so as to greatly facilitate on-site construction!
Passive Infrared Sensor For Automatic Door Technical Parameters:
|Working voltage:||AC/DC 12-30V (-0% -- +15%)||Static current:||6mA|
|Action current:||18mA (powered by DC12V)||
|Exposed or concealed|
|Max mounting height:||3.5m||Max detection speed:||0.1m/s|
|Hold-up time of output:||0.5s||Protection class:||IP52|
|Tilt adjustment height:||0° to 6°||
|-40° to 60°|
1.In debugging, to aviod false foreground information occurring in the system, please ensure that the automatic door is closed before self-learning; during the whole self-learning, all unrelated background objects (such as debugging personnel, tool case, etc.)
2.Method of exposed installation and concealed installation (as shown in the figure)
We Also Recommend
Olide-504W Smart Pet Collar Sensor and Receiver for Automatic Door System
Microwave Motion Sensor for Automatic Door 24.125Ghz, Autodoor Sensors Supplier
QUESTIONS & ANSWERSAsk a Question
it states above "Induction sensitivity and zoom range can be set" but there is no instructions on how to do this. Can someone help please
Hi, there is a sensitivity adjusting knob, please see product detailed page:
Is this item compatible with all Olide swing door openers?
Yes, it can work with all olide swing door openers.
