Olide DSW120 Push Button Automatic Swing Door Opener With Hand Programmer

$573.07

Shipping calculated at checkout.

DSW120 Automatic Swing Door Opener Installation Video

This system is designed to secure your door and have the capabilities of automatically and manually opening and closing it as well. A simple yet secure system for areas such as offices, hospitals,elderly homes, banks, commercial locations, and much more.

Electric Handicap Door Opener With Hand Programmer

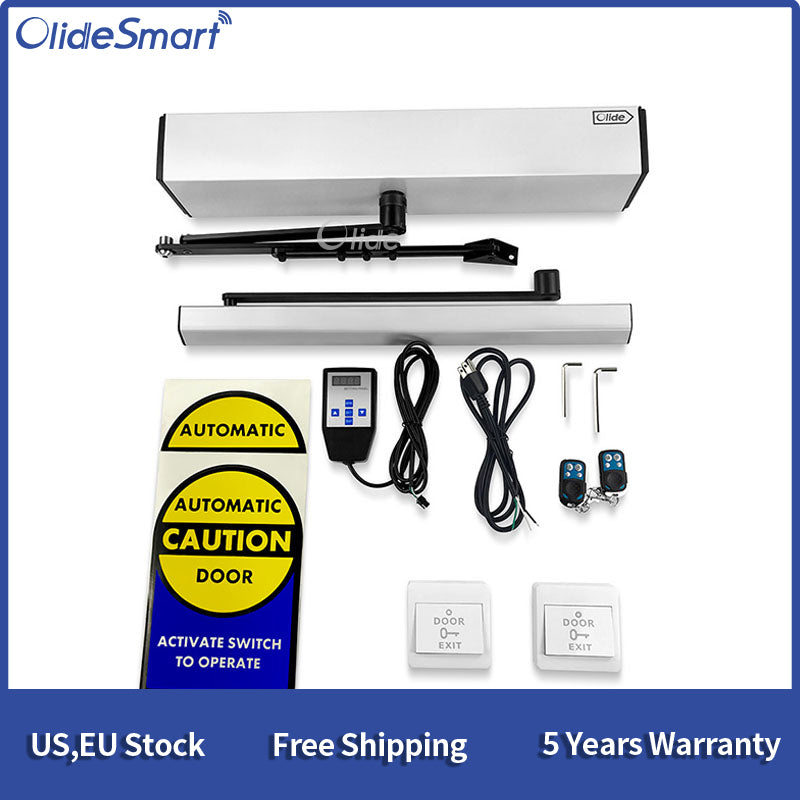

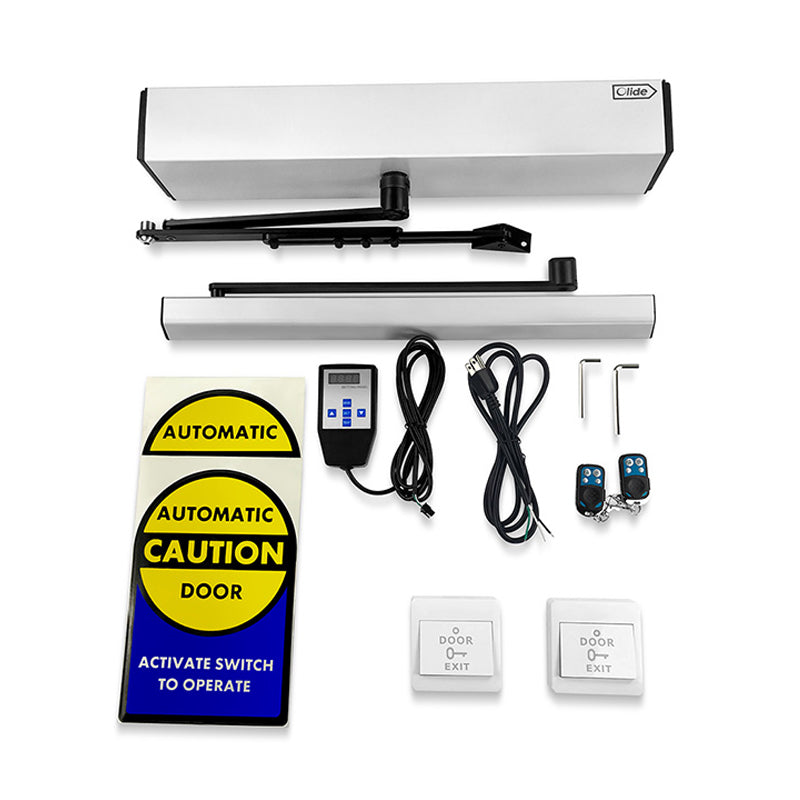

One set electric door opener includes: Opener, 2 arms, 2 remotes, 2 push buttons,1 hand programmer.

Automatic Swing Door with Passive Infrared Sensor Package

automatic swing door with passive infrared sensor

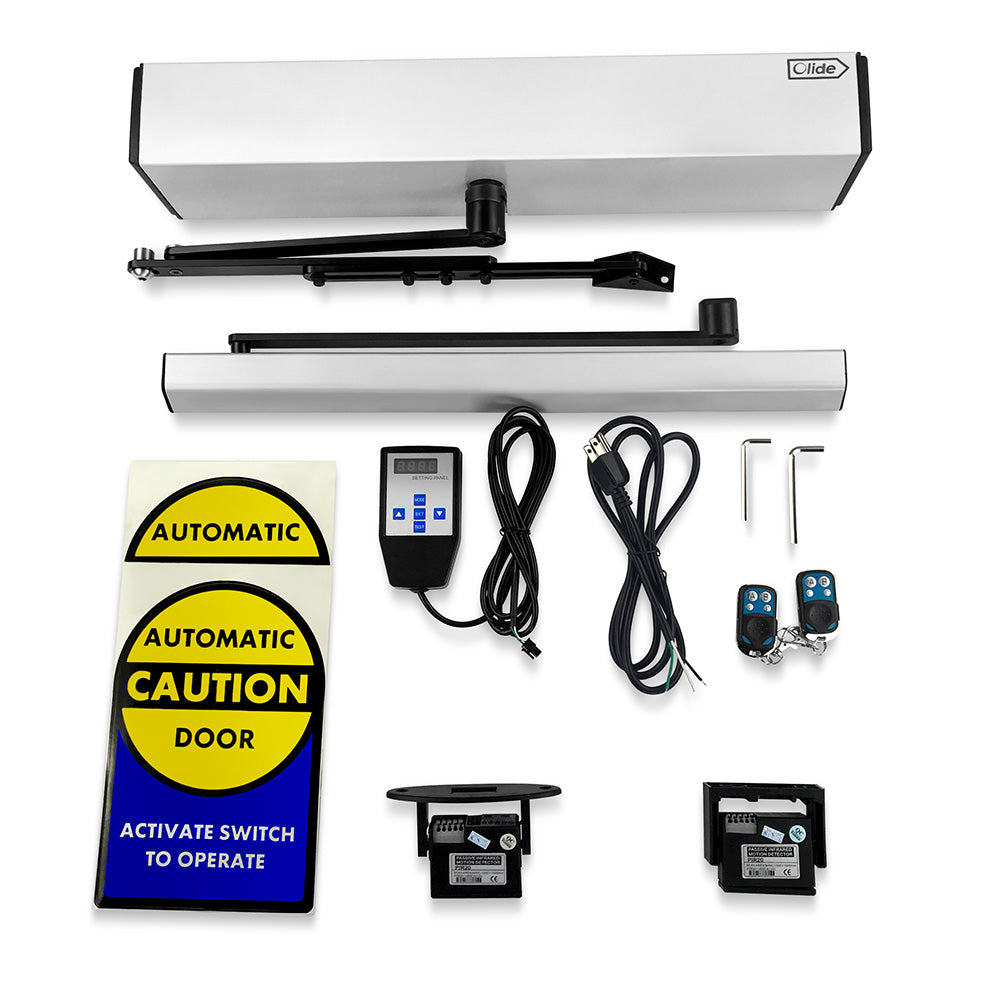

Package includes: Opener, 2 arms, 2 remotes, 2 push buttons, 2 passive infrared sensor, 1 hand programmer.

DSW120 Electric Swing Door Closer with No Touch Hand Sensor Switch

dsw120 electric swing door closer with no touch hand sensor switch

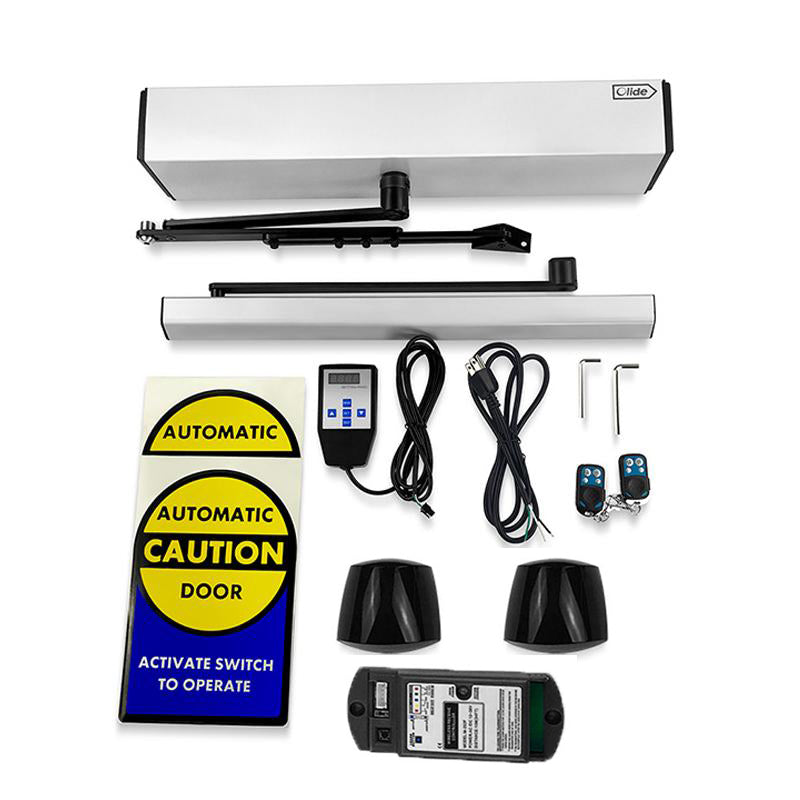

Package includes: Opener, 2 arms, 2 remotes, 2 push buttons, 2 no touch hand switches, 1 hand programmer.

Passive Infrared Sensor Automatic Handicap Door Operator Features

Reinforced high strength aluminum alloy and imported original parts used.

Imported motor from Germany with fast speed and service life of more than 1 million times，it can work stable and with smooth operation.

Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage.

Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.

Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.

The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (lock, normally open, reset, automatic).

The swing door opener model SW120 can bear withstand the door weight of 120kgs(264.55lbs).

automatic swing door opener with hand programmer 6

automatic swing door opener with hand programmer 2

DSW120 Control Panel Display

automatic swing door opener with hand programmer 4

Parameters easily adjustable by hand programmer:

①Opening or closing speeds
②Manually open force (Push go function)
③Opening direction
④Hold-open time

olide sw120 automatic swing door opener component description

Wiring Details with Accessories

wiring diagram of SW120 swing door closer

DSW120 Technical Specifications And Installation Note

Open way:	single open or double open	Max door weight:	120kg
Max door width:	1200mm	Power input:	AC 110V/AC220V, 50~60Hz
Power consumption:	50W	Open speed:	250-450mm/s (adjustable)
Close speed:	250-450mm/s (adjustable)	Open time:	3-7s(adjustable)
Hold-open time:	1-30s(adjustable)	Manually open force:	<30N
Running noise:	<=55Db	Environment temperature:	-20°C ~ +50°C

Note：Articulated arm and sliding arm both available, can be mounted on the hinge side and opposite hinge side.

swing door push and pull arms

DSW120 Swing Door Opener Manual

Japanese Version Manual

We Also Recommend

automatic handicap door opener with wireless handicapped push switch

DSW120 ADA Automatic Swing Door Opener with Wireless&Wired Handicapped Switches

Olide-120B/DSW120 Automatic Swing Door Opener Remote Control

olidesmart contactless automatic swing door opener with smart RFID pet tags

Olidesmart Contactless Automatic Swing Door with Smart RFID Pet Tags

Phone APP Control Swing Door Operator Alexa Google Speaker Workable

Phone APP Open Wireless Touchless Automatic Swing Door Opener with Wave to Open Switch, Hands Free Electric Door Operator

QUESTIONS & ANSWERS

Ask a Question

Can the push buttons be used to close the door after walking through, or do the push buttons only "open" the door

Hi Rick,

Yes, the button can both push to open and close the door.
You can adjust the door open holding time to "--" on the controller, which means the door open holding time is infinite. And then press the button to open, the door will keep normally open, and press button to close.
Can this system interact with current keypad access control

Hi Matt,

What kind of keypad is yours? This opener can be used with kinds of access control device, usually through wiring to make them work together
Hola. Come. Conectar el Seguro de Puerta electrico

Hi Denis, Do you mean how to connect with electric door lock? Please let me know which door lock you want to connect, so that I can give you correct wiring diagram, you can send to our email address, can not upload image here. Best Regards, Olidesmart
Does the unit come with electric strike?

No,it does not, you can purchase the optional electric strike on following page:https://www.olidesmart.com/collections/door-lock/products/olide-electric-strike-for-automatic-swing-door
Hi, how long it takes to my place in US？

Thanks for your message, we have warehouse in WI, it takes about 3-6 days to your door.
door is closing to tight. What adjustment can I make to solve this?

Hi, you can try to decrease the value of "end closing speed".
Does this system still allow the door to be opened and closed manually?

The manual open function can be turned on or off; If you open the door manual, it will close automatically.
I have a Unifi Access controller. It is currently wired to a door access key pad via an ethernet cable. The electric strike plate is powered by the Unifi Access Controller (with 18 gauge wire I believe). How would I connect this automatic door opener so that it unlocks and opens simultaneously?

Hi, if it's not our electric strike or access controller, please show us your terminals of the device, so we can check for you.
