Olidesmart Contactless Automatic Swing Door with Smart RFID Pet Tags

  • $689.98
Shipping calculated at checkout.

Only 155 left!

How the Dog Sensor Collar Work with the Automatic Swing Door Opener

Olidesmart Contactless Automatic Swing Door with Smart RFID Pet Tags

Olidesmart contactless automatic swing door with smart tags both can used by people and pets.

The smart pet collar set uses RFID technology to communicate between your pet's tags and the RFID transmitter to activate your auto enabled door. It offers the highest security in preventing the chance of wild animals such as possums, raccoons, or your neighbors’ pets from activating your auto door system.

olidesmart automatic pet door opener

In addition, the smart pet collar can also be used as a WiFi switch, because it can also realized by using mobile phones and smart speakers to control the door. The receiver has built-in smart chip technology, so you can directly download the mobile APP "eWe-link" to control the door, and you can also connect to a smart speaker Alexa and Google home~ You can open and close the door remotely and regularly(time setting), so you can better arrange your own schedule~

olide-120B remotely control by phone app

One full package including 2pcs smart tags and 1pc RFID receiver, if you have more than 2 pets, you can purchase additional tags. The receiver can be fixed on the wall, wired with the swing door opener, the receiver can receive the signal transmitted by tags and trigger the door to open.

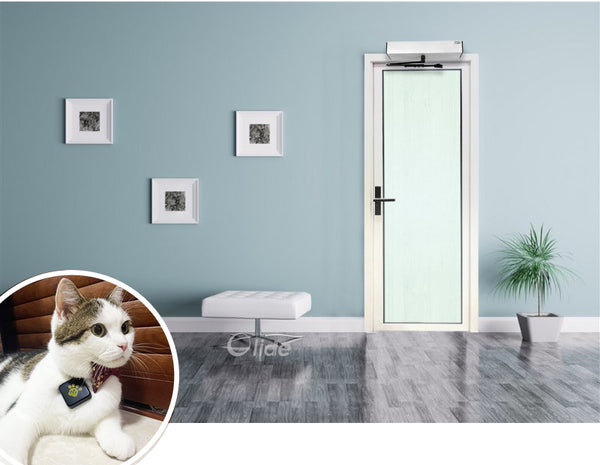

contactless automatic swing door with smart pet tags

Olide-120B Automatic Swing Door Opener Manual

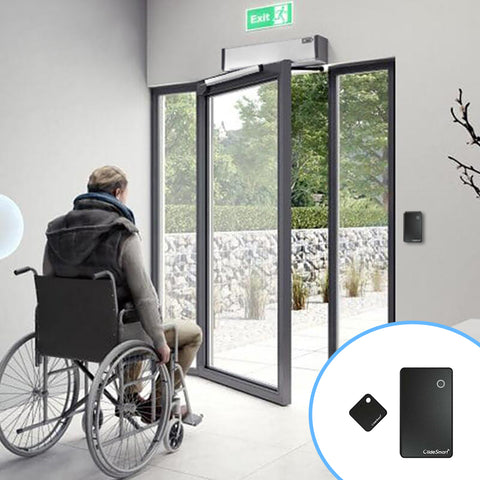

Contactless Automatic Swing Door Opener for Disabled and Home/Office Safety Advantages

  • People with disabilities are sometimes inconvenient to move, they can carry a tag with them, and the door will automatically open within the sensing range.

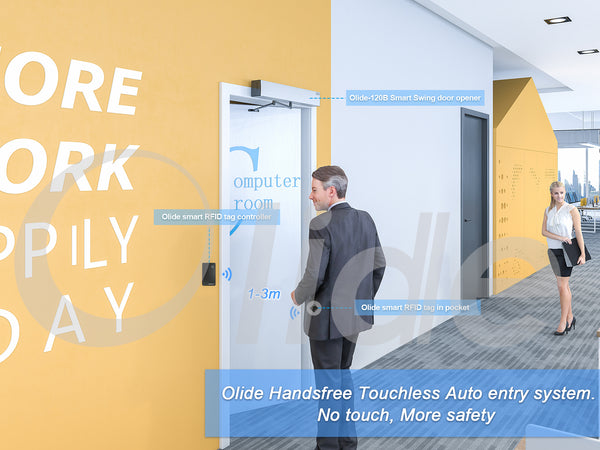

contactless automatic swing door opener with smart tags
  • If the door is outside, you are afraid that it will be unsafe if the switch/push button is installed. You can choose smart tags, which only have the "key" for you or your family, so there is no need to worry about a thief entering the door. It's a contactless way to open the door,too.
  • It's also a good choice for office. People come and go, everyone need to open the door with hand, there are many bacteria on the door, and it is easy to cause cross infection. If an automatic door opener be installed and bring a smart RFID tag, you don’t have to worry. Everyone has a separate "key", which is convenient and safe.
olide-120B automatic swing door opener with smart rfid tags

Features for Smart RFID Pet Tags

  1. The tag adopts waterproof design and has a compact appearance.
  2. Three-gear sensing distance adjustable, more flexible.
  3. Adopt dual frequency wireless signal control (125KHZ and 2.4GHZ )
  4. The tag is low-power comsumption design, which makes battery life more durable.
  5. The identifier adopts a wide voltage AC and DC power supply design, which is flexible in power supply.
  6. One controller can connect with 200pcs tags max..

automatic door samrt rfid tags features

Olide-120B Automatic Swing Door Opener Features

  • Various parameters can be adjusted through the debugging handle, such as opening and closing speed;
  • Multi-function port design, can be connected to switches, electric locks, sensors and other accessories to meet diverse needs;
  • The automatic mode and manual mode can be adjusted. If you don't want to push it open by hand, you can increase the opening force; on the contrary, you can open the door manually by reducing the force.
olidesmart automatic pet door features
smart automatic pet swing door opener features

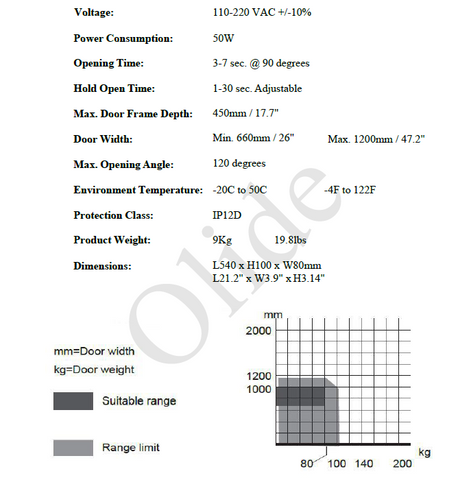

Olide-120B Automatic Swing Door Technical Specifications

automatic swing door opener technical Specifications

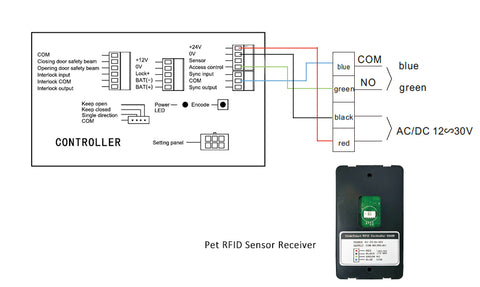

Wiring Diagram

olide-120B wiring with pet rfid collar sensor

We Also Recommend


QUESTIONS & ANSWERS

Ask a Question
  • what if door doesn't open, in case of fire, is there a way to override the unit?

    Hi Dear, Whether it is power on or power failure, the door can be open manually. When it's power on, you can adjust the hold closing force to a low value, the door can be open by hand.

  • If your door is locked and your pet sets the sensor off, does the door opener have an automatic shut off to prevent damage? I have a KiwiSet Halo Lock I wish to lock during center hours and do not want to damage the opener.

    Hi, When the door is locked but there is an open signal, the door will try to open, but if there is resistance, it will stop opening without causing damage to the door opener.

  • How close to the door does the pet have to be to open the door? What is the range of detection?

    Hi,
    The detection range is adjustable from 1m, 3m and 5m. When the pet in the detection range, the door will be triggered to open.
