wireless automatic swing door opener with touch button

Automatic Door Opener With Wireless Fingerprint Door Lock/Hand Touch Switch, Manufacturer

$665.85

Shipping calculated at checkout.

Olide-120B Automatic Swing Door Opener Installation Video

Olide Wireless Fingerprint Door Lock Automatic Swing Door Opener

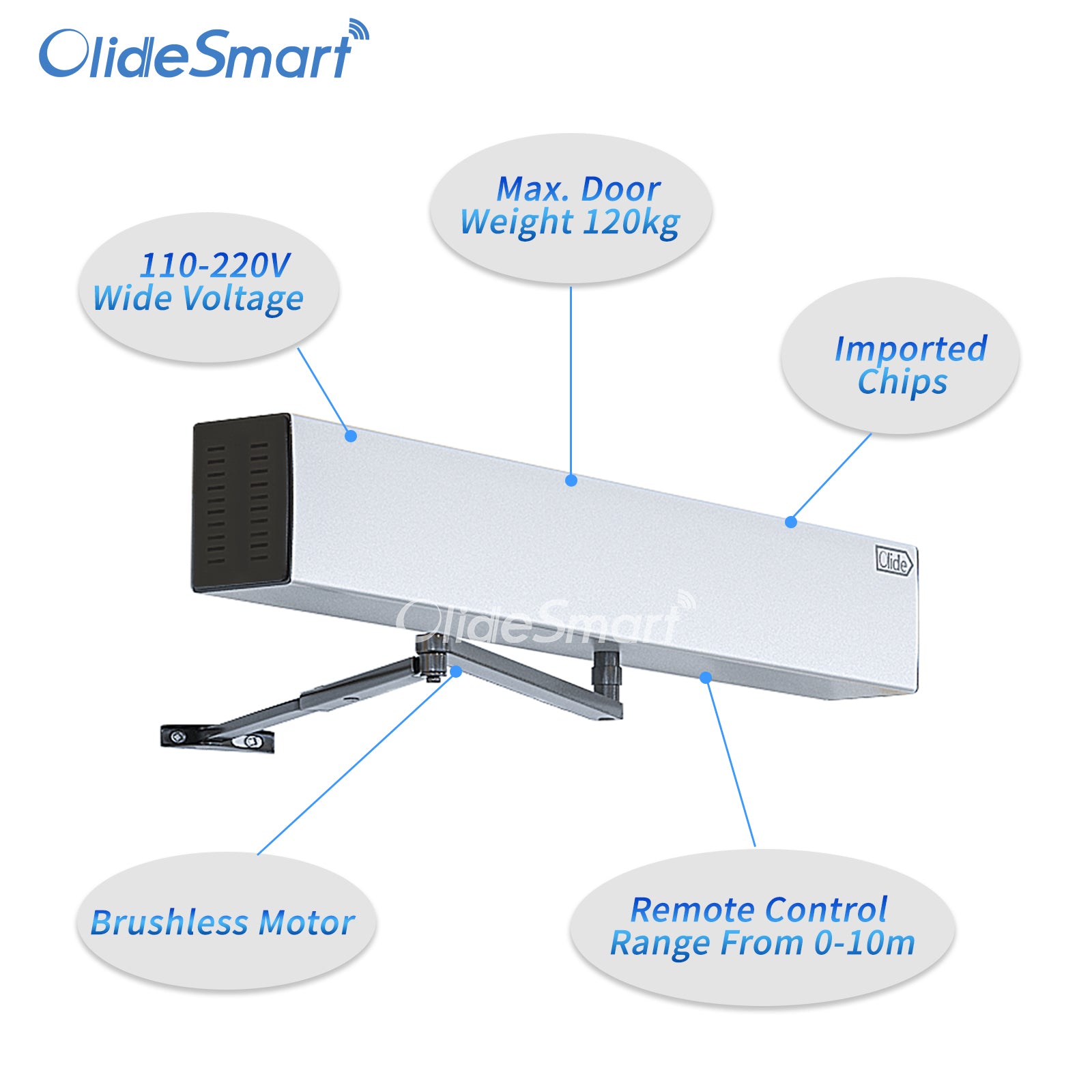

Multi-Swing has been engineered to open doors for people with disabilities, the elderly and children.Our unique one-way clutch mechanism allows the door to be opened manually with incredible ease.

Wireless Fingerprint door lock and card reader make enter the door more convenient and safe.Also meet the needs of specific office personnel to enter and exit the room.

Wireless smart fingerprint lock make access control easy

PUSH&GO FUNCTION：Manually push force can be adjusted

Automatically re-open door if it notices an object in the closing path

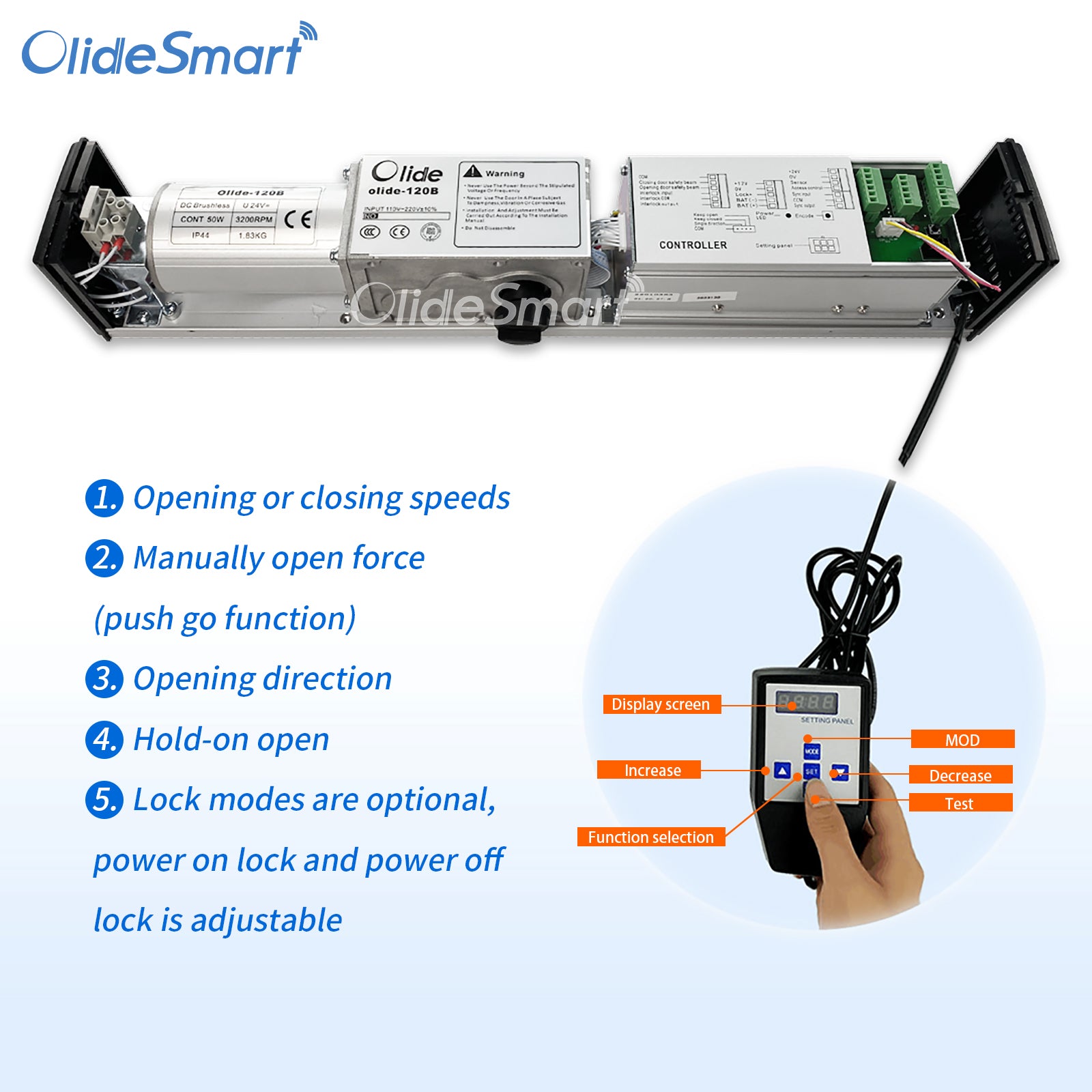

Easily set all of parameters by hand programmer

Installation Video makes install easier

There are two arms to choose from.

automatic swing door opener optional arms

272 Wirelesss Access Card Reader Technical Specifications

272 wireless access keypad technical specification

270 Fingerprint Access Keypad

270 fingerprint access keypad technical parameters

Wireless Hand Push/Touch Switch Automatic Door Opener Technical Specifications

Model:	Olide-120b	Swing application:	one-way open, single leaf and double leaf standard doors
Power supply:	100V-240V AC, 50/60Hz	Motor:	DC 24V brushless motor
Rated power:	50W	Door weight:	120kg/264lbs
Door width:	Min. 660mm/26"; Max. 1200mm/47.2''	Opening/closing speed:	3~8s (adjustable)
Opening time:	0~120s (adjustable)	Hold-open time:	1~30s (adjustable)
Environment temp:	-20~50°C	Operation size:	21.45''(L)3.35'' (W)3.74''(H)
Operation noise:	<55db	Max. door frame depth:	20cm/7.87"(with push arm)

Olide-120b Swing Door Opener Manual

We Also Recommend

automatic handicap door opener with wireless handicapped push switch

DSW120 ADA Automatic Swing Door Opener with Wireless&Wired Handicapped Switches

Olide-120B/DSW120 Automatic Swing Door Opener Remote Control

Olide DSW120 Push Button Automatic Swing Door Opener With Hand Programmer

olidesmart contactless automatic swing door opener with smart RFID pet tags

Olidesmart Contactless Automatic Swing Door with Smart RFID Pet Tags

Phone APP Control Swing Door Operator Alexa Google Speaker Workable

QUESTIONS & ANSWERS

Ask a Question

JE VIENS DE RECEVOIR DS W120 ET LE MOTEUR TOUNE TOUJOURS ERR 3 .BESOIN DE RECONNECTER, RESET NE FONCTIONNE PAS PAS DE SON RESET ENCODEUR ???????

Veuillez brancher le programmateur à la mise sous tension et rebranchez-le, l'erreur 3 disparaîtra, veuillez essayer.
