Olide Smart Touchless Electric Glass Door Operator with Wireless 2.36" Hand Sensor

  • $634.90
Shipping calculated at checkout.

Only 150 left!

OlideSmart Automatic Swing Door Working with Alexa

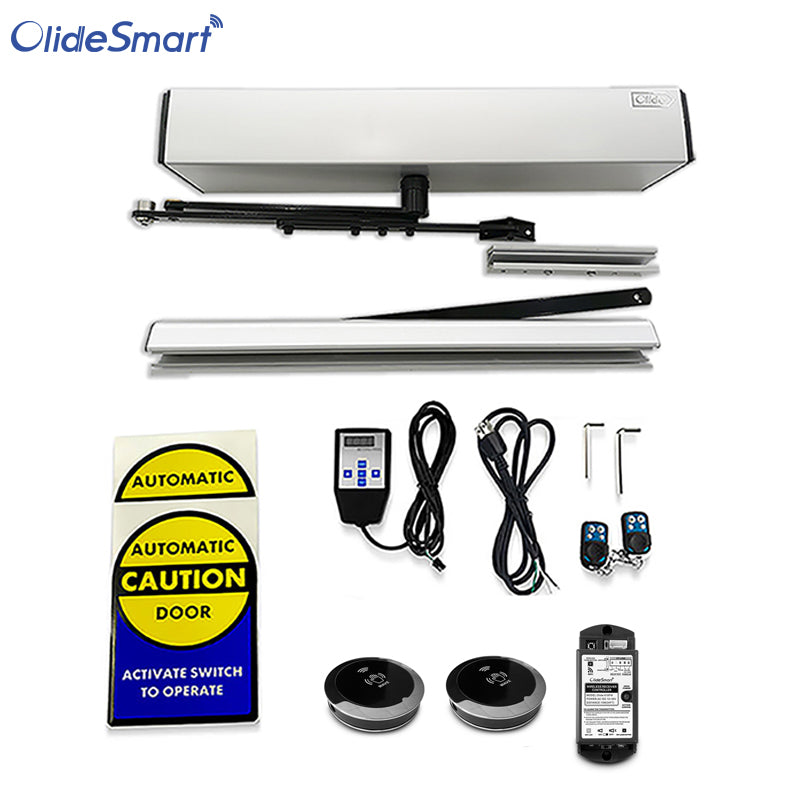

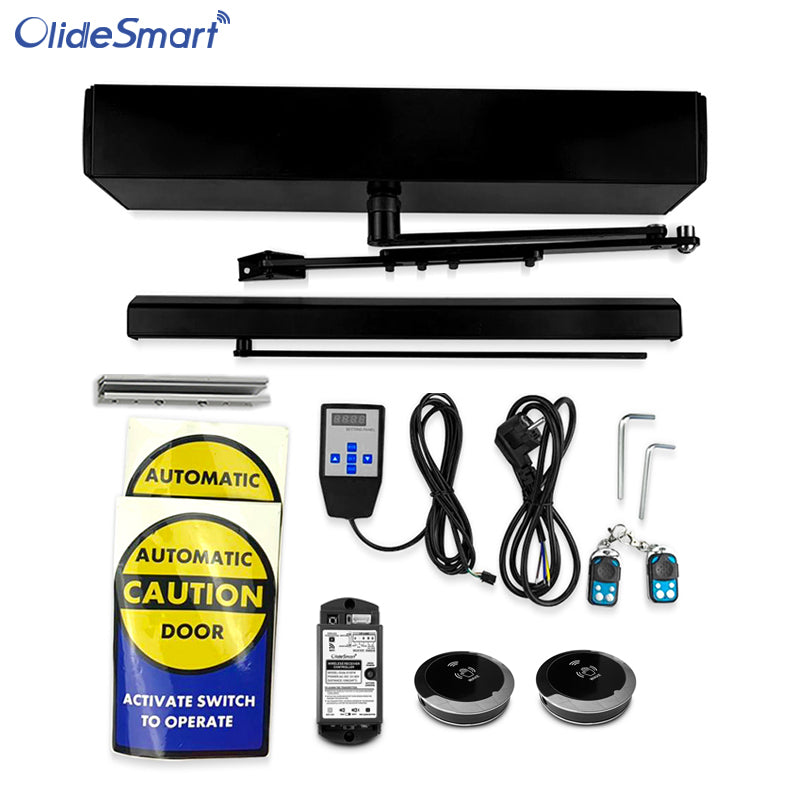

Olide Smart Touchless Electric Glass Door Operator with Wireless 2.36" Hand Sensor

The kit is work for frameless glass door. The Olide-120B electric glass swing door opener is activated by the wireless hand sensor, and you can connect to tuya smart APP thru the wifi smart receiver 510FW, timing open and close can be set in the APP; And support Alexa, Google home assistant; You can also control your door from the APP even you are not at home.

smart remote control swing door opener

The door opener can be operated automatically and manually, the closing force can be adjusted by hand programmer.

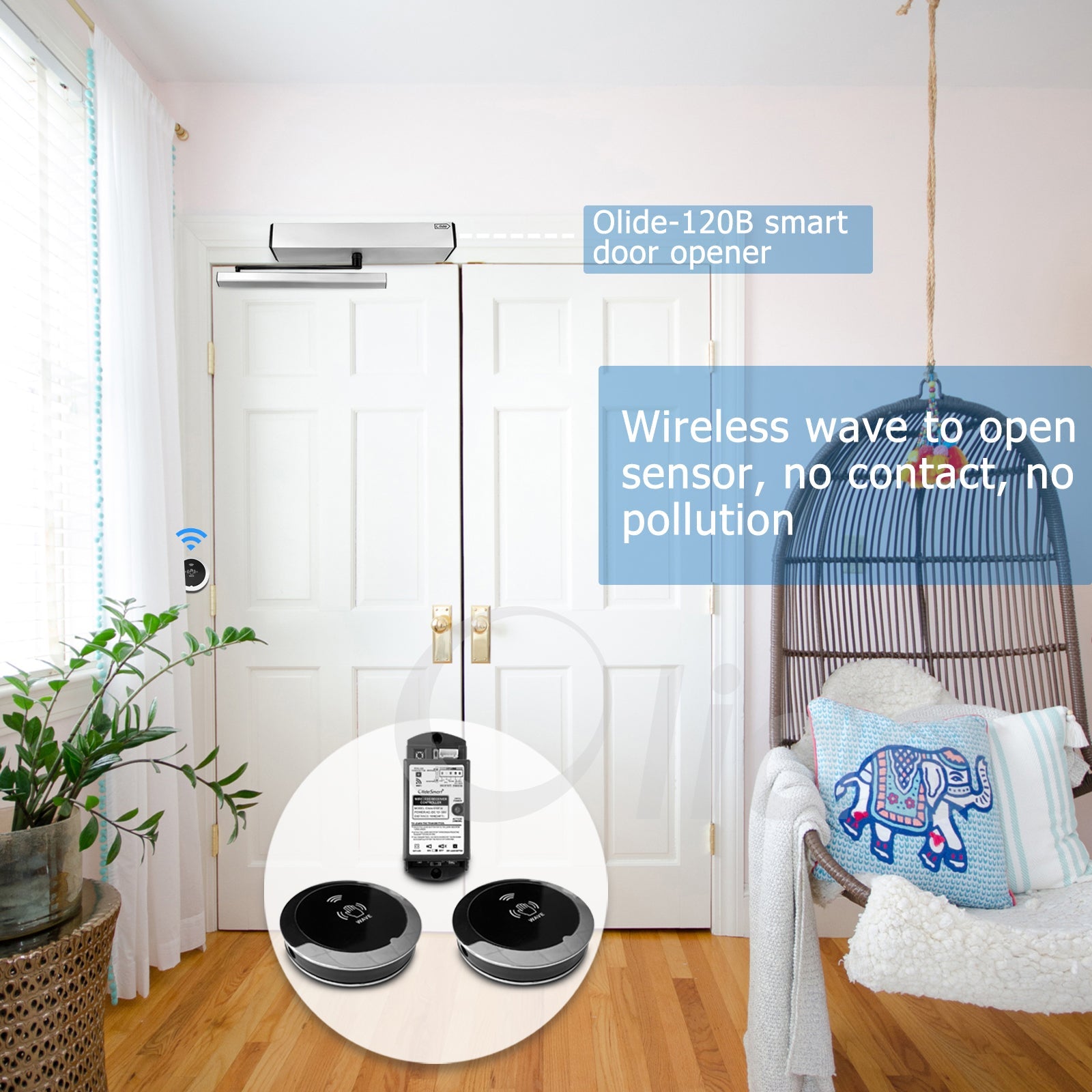

wave to open swing door opener

Olide-120B Touchless Automatic Swing Door Opener Features

  • No touch to open the doors, with sensitive sensing, clean and convenient;
  • Smart control via tuya smart APP, compatible with Alexa and google home;
  • Touchless sensing distance is adjustable from 3-18cm;
  • Hand sensor switch both embedded concealed and unfold install design, can be embedded in glass installation, and waterproof design;

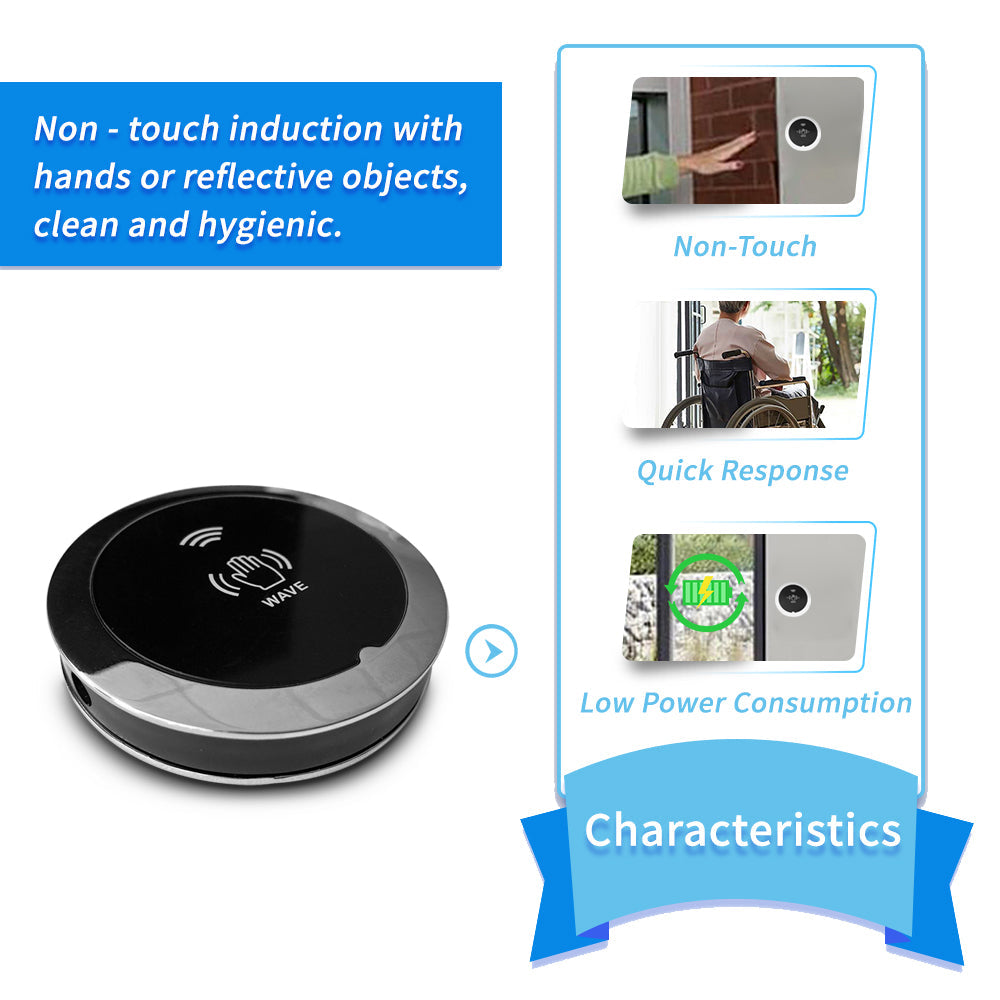

wireless round hand sensor

  • When the door is closing, the door will stop and re-open if there is people on the path, ensure the safety of personnel entering and leaving;

Technical Parameters

 Olide-120B swing door opener

Voltage: 110-220VAC +/-10% Power Consumption: 50W
Opening Time: 3-7s @ 90degrees Hold Open Time: 1-30s Adjustable
Max. Door Frame Depth: 450mm/17.7" Door Width:

Min. 660mm/26"

Max. 1200mm/47.2"

Max. Opening Angle: 120 degrees Protection Class: IP12D
Environment Temperature:

-20C - 50C

-4F - 122F

Dimensions: L21.2" x W3.9" x H3.14"



 501H Wireless Touchless Switch

Power supply(Wireless receiver): DC12-30V
Static current: 34mA(DC12V)
Action current: 62mA(DC12V)
Main contact capacity(wireless receiver): 1A 24VDC
Contact suction holding time: 1.5s
Power supply(transmitter): 3V(2pcs 3V battery payallel)
Standby current(transmitter): <=22uA(M mode) 40uA(K mode)
Emission current(transmitter): 10mA
Touchless sensing distance: 3-18cm
Infrared modulation frequency: 38KHz
Infrared scanning interval:  M mode: 330ms, K mode: 250ms
