Low Energy ADA Handicap Door Opener, Pair with 2pcs Wireless/Wired Touchless Activation Swtiches

  • $759.59
Shipping calculated at checkout.

Only 80 left!

Olide-120B Installation Video

Touchless Handicap Door Opener Working Video

Low Energy ADA Handicap Door Opener

olidesmart low energy handicap door opener including

Package including: swing door motor, push and pull arms, remote control, stickers, hand programmer, allen wrench, power cord, wireless touchless handicap sensor switch, wireless receiver.

Olidesmart low energy ADA handicap door opener can be used in various public places and household places, such as stores, shopping malls, restaurants, front doors, bedrooms, etc. It is in line with the American ADA standard. The minimum door width of the Olide low energy ada handicap door opener is 660mm/26'', the longest is 1200mm/47.2'', and the maximum door weight can reach 120kg, which is suitable for most doors.

Low Energy ADA Handicap Door Opener Manual

Low Energy ADA Handicap Door Opener Features

Olidesmart low energy ada handicap door opener which is working with wireless touchless activation sensor swtich, open the door without contact, it's more safety.

low energy handicap door opener advantage

  • Wide Voltage 100-240V

Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.

olidesmart handicap door opener features

  • Multi-function Interface

It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.
olide-120B automatic swing door opener controller features

  • Hand Programmer

Easily adjust parameters with hand programmer, opening/closing speeds, force, direction, etc. can be adjusted.

olide-120B hand programmer

  • Remote Control

The remote control distance can be more than 10 meters, and flexible adjustment of automatic door (automatic, normally open, normally closed, semi-open).

Hold the "encode" button on the machine, and then press any button on the remote control, you can easily code with the machine.

remote control of olide-120B automatic swing door

Olidesmart Automatic Swing Door Advantages

olidesmart automatic swing door advantages
Both inswing and outswing doors are available
swing door opening direction

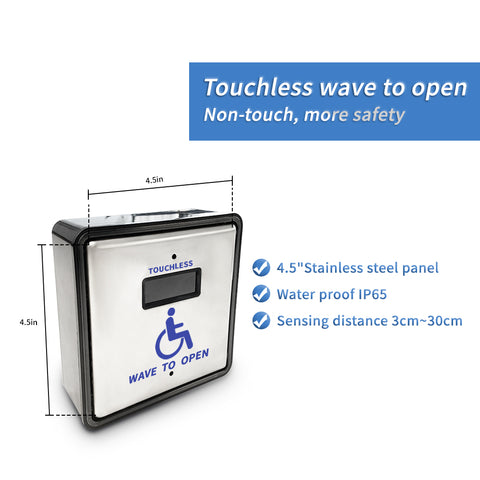

M-512N Wireless Touchless Activation Sensor Switch

Features

wireless touchless activation handicapped sensor switch

  • 4.5” stainless steel panel
  • Water proof IP65
  • Sensing distance 3cm-30cm

Wireless Receiver Feature

  • 2.4GHz radio frequency, high sensitivity and stability;
  • Max wireless receiver distance: 10mters

olide-512N wireless touchless activation handicapped sensor switch receiver

Wiring Diagram

Olide-120B wiring diagram with M-512N wireless touchless activation handicap switch

Olide-120B Handicap Door Opener Technical Specifications and Size

Voltage: 110-220V AC +/-10%

Power Consumption: 50W

Opening Time: 3-7 sec. @90 degrees

Hold Open Time: 1-30 sec. Adjustable

Max. Door Frame Depth: 450mm/17.7"

Door Width: Min.660mm/26"    Max. 1200mm/47.2"

Max. Opening Angle: 120 degrees

Environment Temperature: -20C°- +50C°

Protection Class: IP12D

 olidesmart low energy ada handicap door opener size




We Also Recommend


QUESTIONS & ANSWERS

Ask a Question
  • With the 512N wireless system, what provides power to the push buttons and the actual actuator?

    Hi,

    The wireless button 512N is inside battery, and the door opener is powered by the power source, it has a plug.

  • Can the door be opened manually without disarming the opener? In other words, can people use the door manually, and then handicapped people use as needed?

    Hi, model olide-120b can be manually opened, you can adjust the hold closing force to a lower value, you can open doors by hand.

  • what is the opening force when power is on and off

    Hi, there is no opening force, only closing force, it can be adjusted. And power consumption is 50W.
