Automatic Handicap Door Opener, Electric Door Operator Supplier

  • $625.13
Shipping calculated at checkout.

Only 198 left!



More Video

DSW120 Swing Door Opener Manual

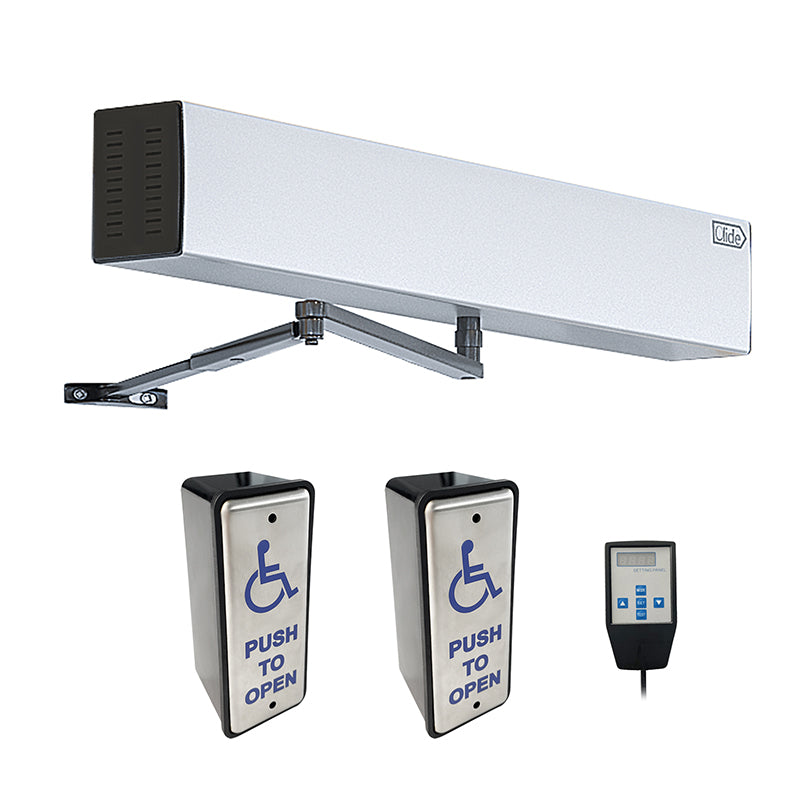

Automatic Handicap Door Opener

The SW120 operator can be used as a door closer, break through and expand the range of use of the automatic swing door operator. Under normal operating conditions, the noise generated by the operation of the SW120 operator is very low, no more than 55 db, and it has more reliable economic performance and energy saving advantages compared with similar products.

Disabled Electric Door Opener Features

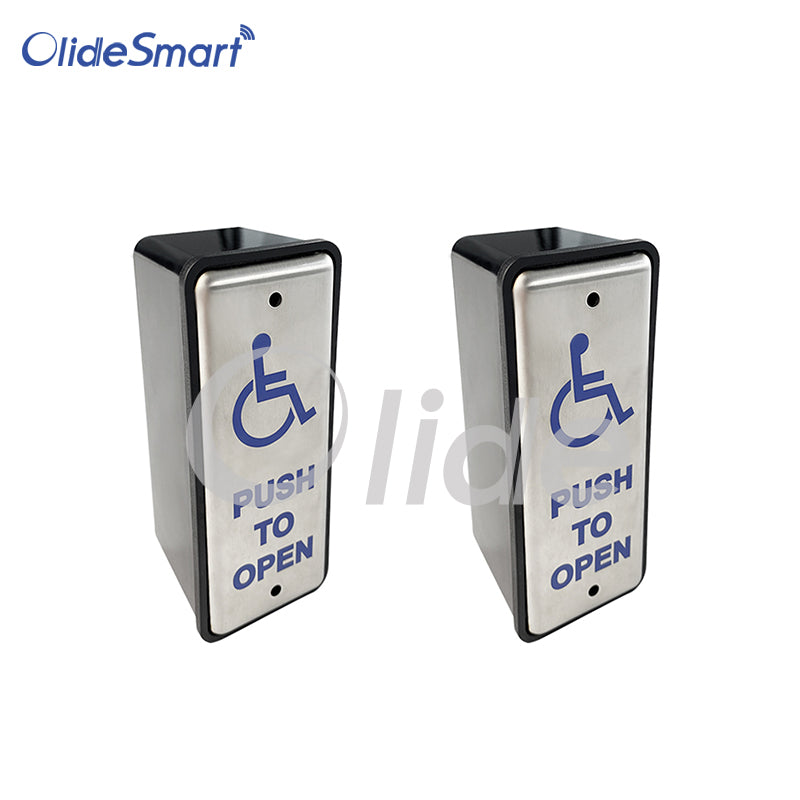

  • The disabled switch is specially set up in the conspicuous position of the door to provide the maximum safety and convenience for the disabled to enter the door.
  • The SW120 operator can work with a variety of olide automatic door sensors, and the detection range will be expanded to ensure the safety of the person passing enter the door.
  • When the door is about to reach full open, the operator will automatically slow down the door opening speed until the door opens to the maximum width and the door will stop. When the door is closed, the operator will make the door to the fully closed state at low speed under the action of the motor and spring force, ensuring the safety of the door when it is running.

Select push arm or pull arm as needed

handicap door opener push arm and pull arm

Automatic Handicap Door Closer Technical Specifications

Swing

Application:

one-way inswing or outswing open; single leaf and double leaves standard doors Voltage: 110-220V AC+/- 10%
Motor: DC 24V brushless motor Power Consumption: 50W
Opening Time: 3-7sec. @ 90 degrees Hold Open Time: 1-30sec.Adjustable
Max. Door Frame Depth: 450mm/17.7" Door Width:

Max.1200mm/47"

Min.660mm/26"

Max. Opening Angle: 120 degrees Environment Temperature: -20C to 50C -4F to 122F
Operation Noise: less than 55db



DSW120 Swing Door Opener Manual


We Also Recommend


Customer Reviews

Based on 1 review Write a review

QUESTIONS & ANSWERS

Ask a Question
  • If l order a opener how soon will i have it

    May I know which country are you in? As usual, it takes about 5-11days to arrive

  • Does it work perfectly for the disabled?

    Of Course
