Olidesmart Residential Automatic Sliding Barn Door Operator, Factory Free Shipping
"How To Install" Video In YouTube
Installation of Casa2 for Framed Door
Installation of Casa3 for Frameless Glass/Wooden Doors
Olide Residential Automatic Sliding Door Operator Belt Type
Standard track length is 2.2m, suitable for single leaf 0.9m-1.1m;

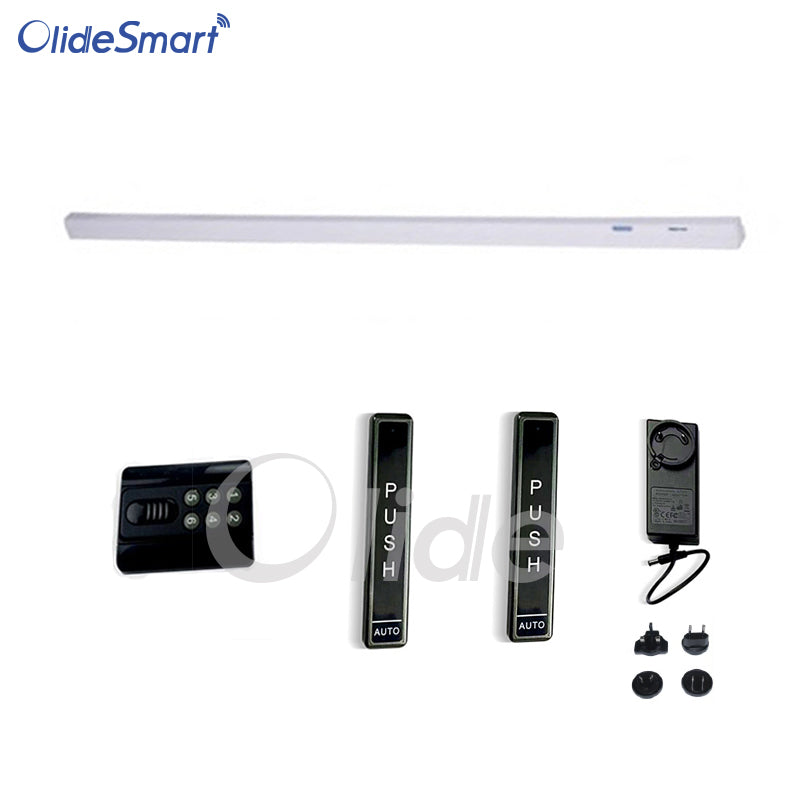

CASA2 electric door opener for framed door includes: Win-slider, adapter, install bracket, remote, one pair wireless push button and gear rack.

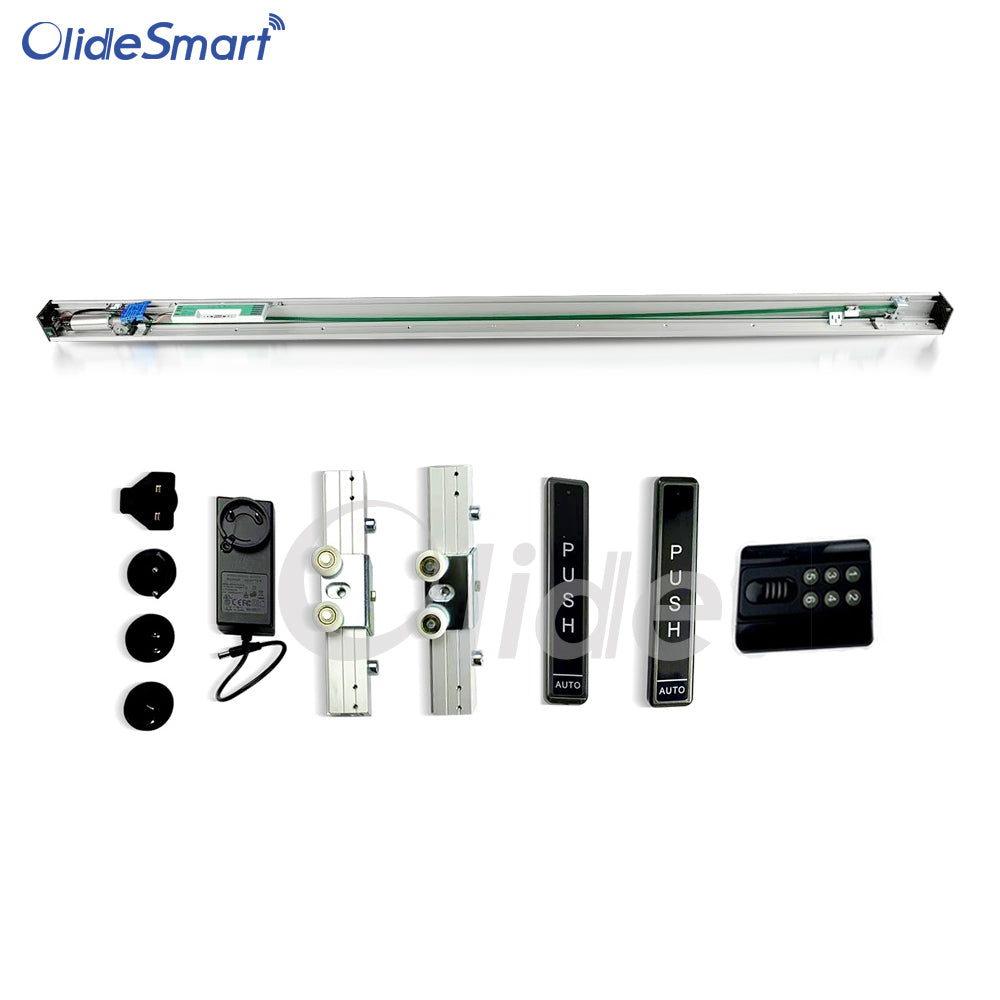

CASA3 residential sliding door operator for frameless glass/wooden door includes: Win-slider, adapter, remote control, one pair wireless push button, belt, stopper, hanger, belt connector, pulley, belt auti-drop device; (Frameless wooden door will addtional equipped wooden door connector)

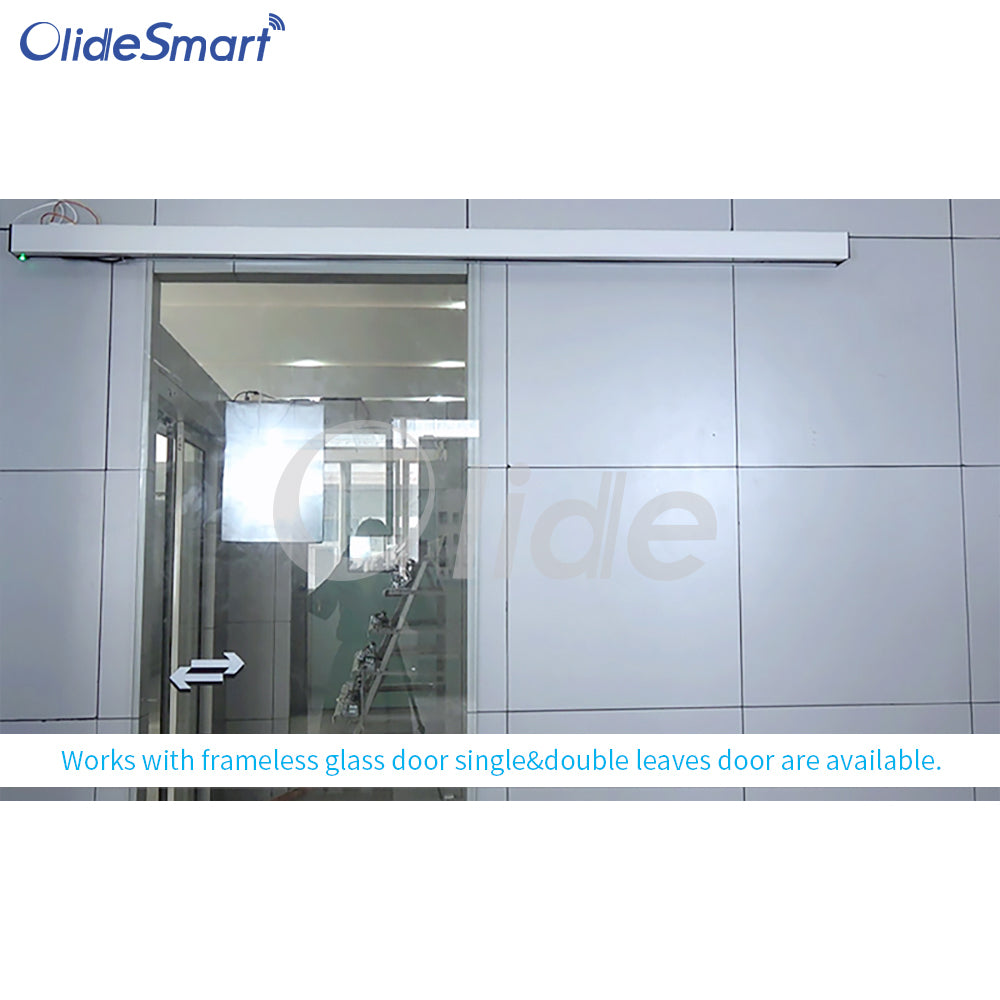

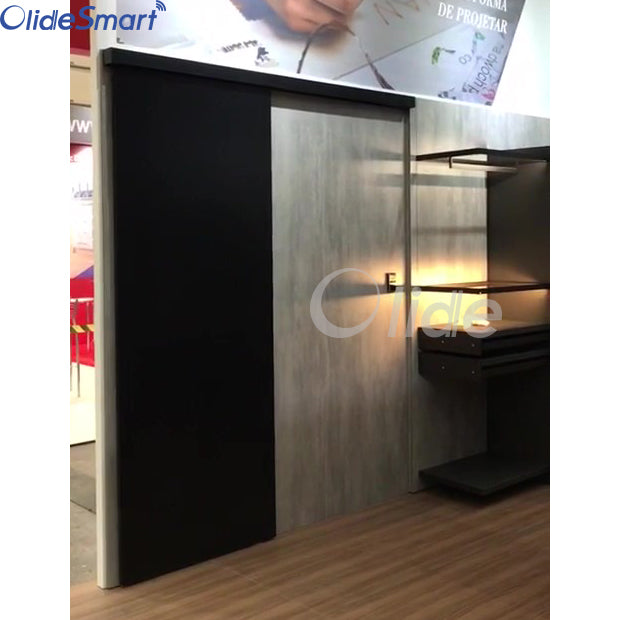

There are 2 types of door opener, please select according to the type of your door(framed or frameless). Casa2 is for framed doors, such as framed wooden door, framed glass door; Casa3 is for frameless glass doors and frameless wooden doors(barn door). You can note door type when you placing order.
Olide Residential Automatic Sliding Door Operator Belt Type Features
- Easy for installing,without change existing door strcture.
- Compact size,nice appearance and modern design.
- System can apply with sensor,remote control,push button,pet switch,photocell,card reader,magnetic lock and so on.
- Window and door mode can be switched arbitrarily.
- 433.92hz module can be suit for smart home.

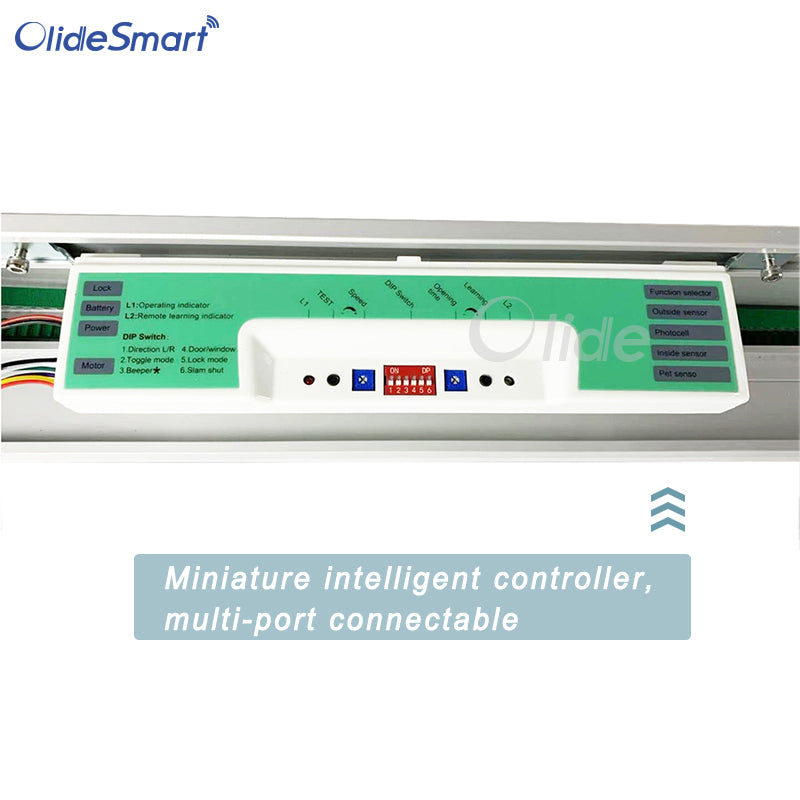

-Microcomputer Controller
Use most advanced technology to meet your needs, there are 6 dip switches and 5 modes for different functions.
-Efficient Motor
Adopt brushless DC 24V electric motor, long life and high efficiency.
-Hanging Wheel
The hanging wheels are made of aluminium material, longer life and more stronger.
-Wireless Push Buttons
One mounted inside and one outside, you can just push it for opening the door automaticlly.
Technical Specifications
Single leaf door weight: 1*60kg
Door width: max 47.2inch(1.2m)
Opening speed: 100-400mm/s(adjustable)
Closing speed: 120-220mm/s(adjustable)
Motor: 24V 40W3000rpm
Keep opening time: 0-20s
Power supply: AC100V-220V 50-60Hz
Working temperature: -10°C~70°C
Color: silver
Product measurement: 2200mm*72mm*63mm
We Also Recommend
QUESTIONS & ANSWERS
Ask a Question-
On the Olide Residential Automatic Sliding Door Operator Belt Type Can you fit (1) the Microwave Motion Sensor for Automatic Door 24.125Ghz, Autodoor Sensors Supplier and (2) a Autodoor Remote Controller, Autodoor Function Remote Supplier Thank you.
Hi,
CASA3 can work with the microwave sensor and the remote control, but the remote control will only have open function.
The door opener itself is equipped with 6key remote control, so you don't need connect with other remote. -
Would your CASA 3 Automatic Sliding Barn Door Operator work for this wooden frameless door? https://mobileimages.lowes.com/productimages/54a6fe2c-f474-4158-b81c-f98463657f04/42695377.jpg?size=mthb Its dimensions would be 28 inches x 84 inches x 1.375 inches. I assume that the rail would need to be, say 58 inches long. https://www.olidesmart.com/products/casa3?variant=15711081300003
Hi,
Yes, CASA3 sliding door opener can work with wooden frameless door, the standard rail is 2.2m, if you need 58inches or longer, we can cut it off to fit your door. You can leave your size when placing order. -
Can I make double door opening 18” each wide? Should I order 2 more hanging wheel?
The door opener can work with double opening doors, and you don't need order 2 more hanging wheel. We'll send fittings based on your usage.
-
Do you have a system for biparting barn doors
Hi,
We have magnetic sliding door opener and automatic sliding door opener model SD150, SD190 , SD280 can work with bi parting barn doors;
https://www.olidesmart.com/collections/magnetic-sliding-door-opener
https://www.olidesmart.com/collections/sd150/products/sd150b
https://www.olidesmart.com/collections/sd190/products/sd190-automatic-sliding-door-opener
https://www.olidesmart.com/collections/sd280/products/sd280
