Olide SD280 Commercial Heavy Duty Automatic Sliding Door Opener Manufacturer
Olide SD280 Installation Video

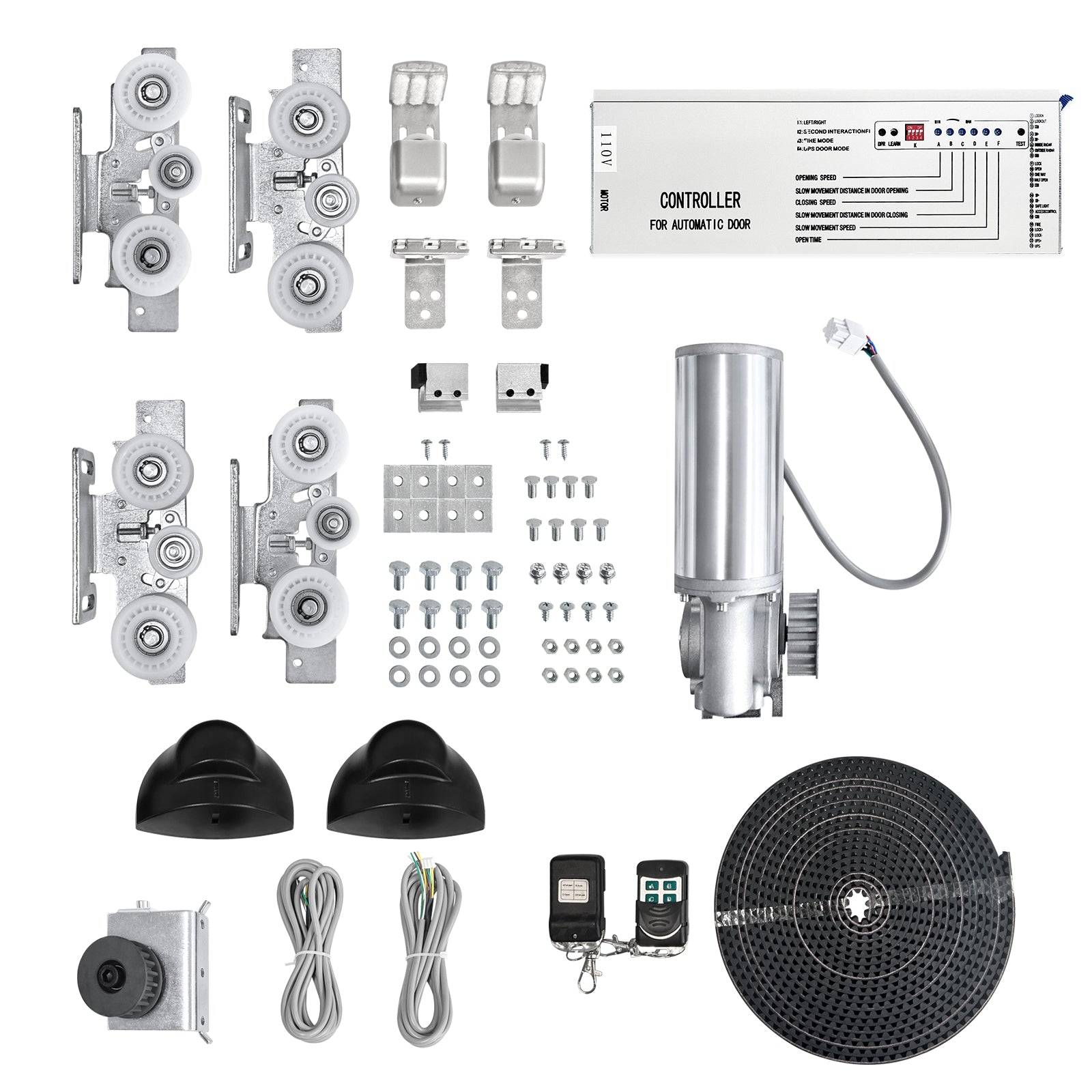

Olide SD280 Commercial Automatic Sliding Door Opener Include
|Motor gear box assembly||1||Return pulley||1|
|Microwave sensor||2||Terminal input assembly||1|
|Tooth belt||1*7m||Power switch||1|
|End stop||3||Hanger roller bracket||2|
|Remote control||2||Belt bracket link assembly||2|
|Device for yaw checking||1||Transformer||1|
|Transmission rail and cover||2*2.1m||Microwave sensor||2|
1.The products we deliver include 4.2meters transmission rail and cover,if yor total door width is less than 4.2m, it saves some shipping cost, please contact with us to adjust price.
2. If the door is frameless, the optional accessory glass hunger is needed, the price will be 10$-20$ higher , single leaf door need 2 pieces glass hunger, double leaves door need 4 pieces. please contact us to adjust the price for you if need them.
3.If you need more functions and have additional requirements, like mobile/ Wifi control device, Debug version, need other accessories or remote controls and etc., please contact us.
Please leave a message about your door size and type details and we will double confirm our best offer for your order.
Video on YouTube
Heavy Duty Automatic Sliding Door Opener Technical Specifications
|Door range||Single leaf Double leaf|
|Door leaf weight||Max 180kg*1 Max 180kg*2|
|Door width||600-3000mm 600-1500mm|
|Opening time||0~10 s|
|Motor||DC 24V Brushless DC Servo Motor|
|Supply voltage||Input AC 110V/220V; 50-60Hz|
|Working noise||Less than 50db|
Features Of SD280 Automatic Glass Sliding Door Opener
DC 24V Brushless Motor
Worm gear reduce make it low noise;
Advanced PWM Pulse width control mode providing reliable strong driving force and protect the stable operation of the product;
Full enclosed structure ensure long service life.
Separete transformer,electric voltage and electric current transform easily.
32 bit microprocessor in electric board make the door sliding reversely when touch obstacles;
Opening&closing parameters can be intelligently adjusted by control panel without extra programmer;
Separate transformer with control panel,electric voltage and electric current can transform easily.
One more reducer wheel,more stable and low noise
One more reduce wheel make the teeth belt more stable and low operation noise,
The roller is made of polyurethane,it is durable and light.
The large space between the wheels make little friction between the belt and wheel.
Complete perfect access control system
Only entering the passcode or swiping card on the optional access keypad,people can be entered.
Autodoor can reach the functions of automatic/exit only/partial open/locked and open by the optional five key selector.
Various optional accessories such as foot sensor,touch sensor,push button etc.can be equipped.
Functions of Safty beam and microwave sensor are perfectly combined.
The optional active rader&infrared safety sensor is combined the function of safety beam and microwave sensor If install it, no need safety beam and microwave sensor.
More intelligent and convenient ,only need one wire connection, no need more for safety beam and microwave sensor.
SD280 Profile Drawing
