Wifi Smart AC Adjustable Stroke Automatic Window Opener Alexa Workable
Wifi Smart AC Adjustable Stroke Automatic Window Opener Function
Use Alexa and Google home smart speakers to control window switch with simple voice to free hands,use your voice to control the connected devices easily.
Open and close your windows according to your own schedule.
Don't worry about forgetting to turn it on or off.
Phone APP Control
Work with "smart life" APP. Control your windows at anytime, anywhere with your mobile phone. No matter you are at work or traveling, no matter it is raining or sunny, you can open and close the window with one touch of your mobile phone.
Never have to rush home in rainy days, and you don’t have to worry about the air in your home when you going out for a long time.
Capacitive Touch Panel Control
Touch feel like a mobile phone's touch screen. Touch sensitive, stable response.
Clear action icons on touch panel: open, stop, close.

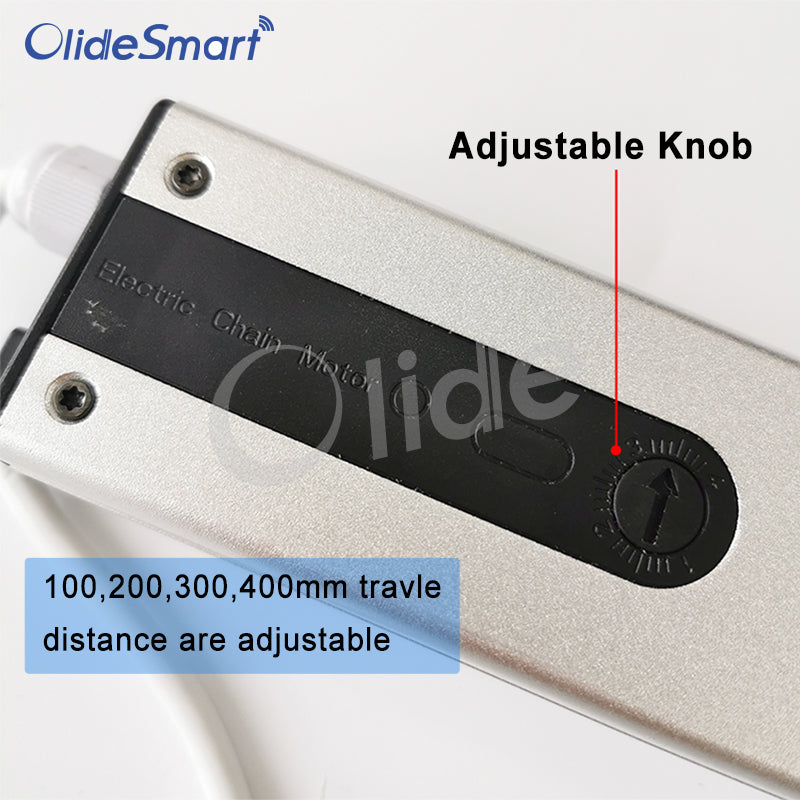

There are 1, 2, 3, 4 four figure on the adjusting knob, as the left photo shown, each figure means I 00mm, 200mm, 300mm and 400mm joumey. You could refer to these figures adjust the journey you want.
For example: If you want the motor extend 200mm, you could operate as follow:
1. Adjust the knob to figure 2.
2. Operate the motor, the motor will open the window 200mm and stop automatically(If the journey is not the perfect position, you could adjust the knob a little; the motor will not run automatically after your adjusting, you have to shut the window and then open the window again, motor will run to the new limit position).
Attention: The motor closing stop against obstacle.
Smart Adjustable Stroke Automatic Window Opener Features
1. Wide voltage 100-240V AC power input, suitable for all country's different requests.
2. Adjust the journey by adjusting knob; the maximum stroke could reach 400mm.
3. Apply to small size window, down to 470mm windows.
4. The chain materials use double layers stainless metal.
5. Quality stable and smooth running.
6. Aluminum housing with sand blast treatment; the cover and brackets are zinc alloy die castings.
7. Two frame resistance ABS holders and the POM sliding guide make the motor more safety and silent.
Model No.: AM56
Rated Voltage: AC 100-240V
Rated Power: 28W
Push/Pull Force: 250N/250N
Running Trip: 100-400mm
IP Class: IP 43
Product size: 43(L)x5.5(W)x4.5(H)cm / 16.93(L)x2.17(W)x1.78(H)inch
Wiring Diagram With WiFi Switch
We Also Recommend
Tuya Wifi Automatic Window Opener Include Wall Switch and Remote Control, Compatible with Alexa/Google Home
Intelligent Electric Chain Window Opener with Gas Detector, Work with Phone APP and Alexa
WiFi Smart Adjustable Stroke Electric Window Opener with Thermohygrometer, Phone App Control and Alexa Workable
QUESTIONS & ANSWERSAsk a Question
Can I put multiple operators on one switch panel I bought three sets but I would like to use just one switch panel to control all three is that OK?
You can download the "Tuya/Smart life" APP, so that you can multiple control in the same time.
The last person was clearly asking about the ***retraction*** of the chain, not the extension of the chain. How do you set the device to stop before it retracts all the way back into the housing? I've looked in all the documentation and on your website, but can't find this answer listed anywhere. Thx
Generally speaking, the machine will stop until the window is closed. If you want to control the retracted position, you can use the remote control and switch to stop.
Hello, How do you set the limit on the retraction of the chain? Currently the chain wants to retract all the way back into the unit, but due to the standoff distance of the mounting brackets it is unable. Thank you
Have you read the instructions? Window opening stroke can be adjusted by Knob on the machine.
