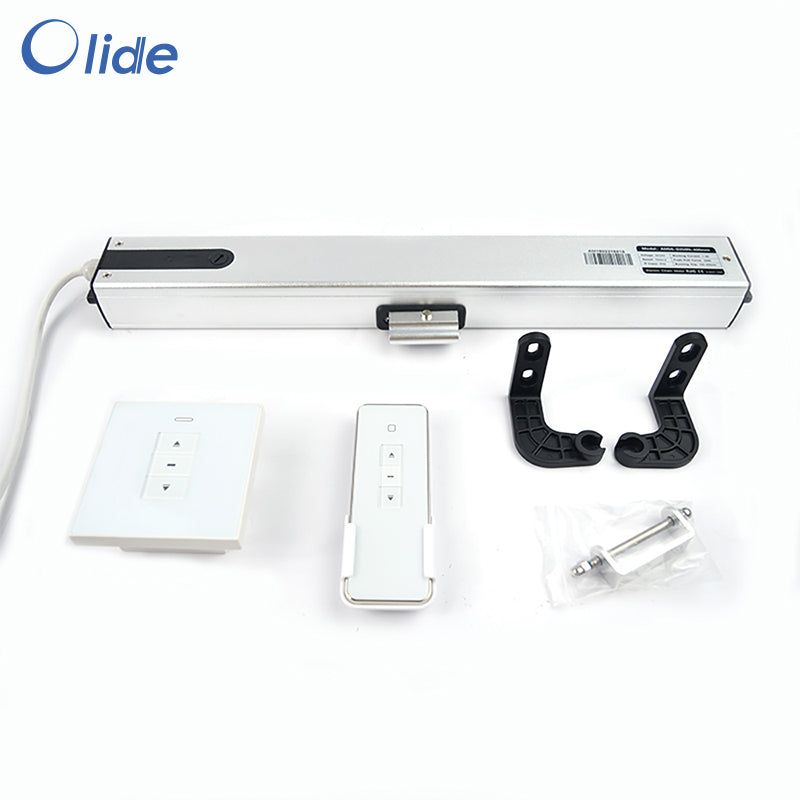

Olide AM56 Manual Adjustable Stroke Window Closer

The chain type electric window opener is suitable for electric swing window, electric casement window, electric window opening, etc.It is especially suitable for places where window height is not convenient for manual operation.

With various automatic control systems, it can realize manual on/off,automatic smoke on/off, automatic temperature on/off, etc.

Olide AM56 Electric Chain Window Opener Characteristics

• Wide voltage 100-240V AC power input, suitable for allcountry's different requests;
• The chain materials use double layers stainless metal.Quality stable and smooth running;
• Adjust the journey by adjusting knob; the maximum stroke could reach 400mm
• Aluminum housing with sand blast treatment; the cover and brackets are zinc alloy die castings;
• Apply to small size window, down to 470mm windows;
• Two flame resistance ABS holders and the POM sliding guide make the motor more silent and safer;
• Long service life, more than 10000 times open and close.

Olide AM56 Electric Chain Window Opener Technical Specifications

Journey setting

There are 1, 2, 3, 4 four figure on the adjusting knob, as the left photo shown, each figure means I 00mm, 200mm, 300mm and 400mm journey. You could refer to these figures adjust the journey you want.

For example: If you want the motor extend 200mm, you could operate as follow:
1. Adjust the knob to figure 2.
2. Operate the motor, the motor will open the window 200mm and stop automatically(Ifthe journey is not the perfect position, you could adjust the knob a little; the motor will not run automatically after your adjusting, you have to shut the window and then open the window again, motor will run to the new limit position).

Attention: The motor closing stop against obstacle.
