"How To Install Frameless Glass Door Opener" Video In YouTube

Installation of Casa3 for Frameless Glass/Wooden Doors

More Video

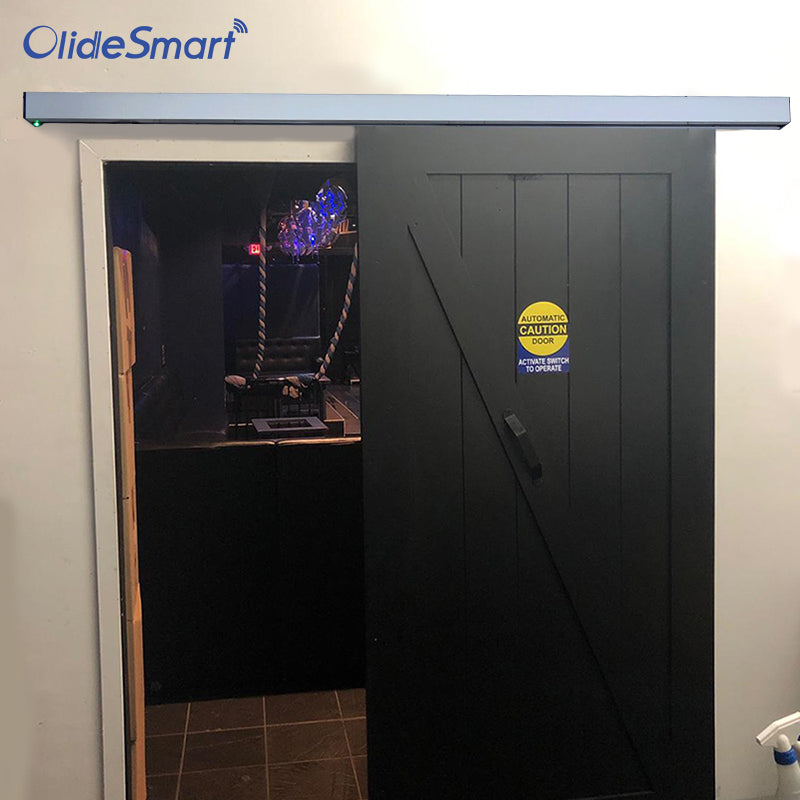

Smart Automatic Barn Door Opener with M501H Wireless Touchless Button

Standard track length is 2.2m, suitable for single leaf 0.9m-1.1m;

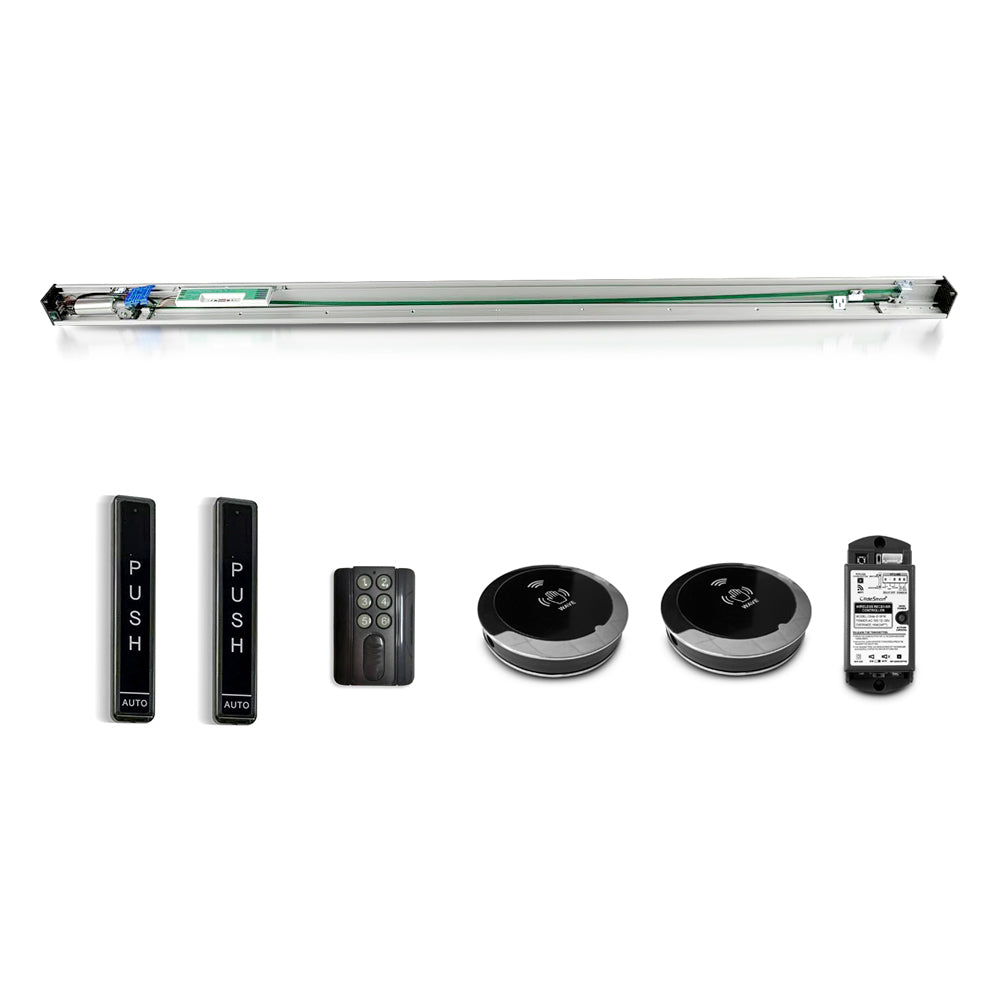

CASA3 frameless glass/wooden door opener includes: motor, adapter, remote control, 2 wireless push buttons, belt, stopper, hanger, belt connector, pulley, belt auti-drop device, M501H set; (Frameless wooden door will addtional equipped wooden door connector)

Smart Automatic Barn Door Operator Features

• With wifi smart receiver, it compatible with tuya smart app, Alexa and Google home assistant, you can open the remotely from anywhere;

• With round panel, wireless&touchless design, installation without wiring, more flexible mounting;

• The system is simple to install and does not require any modification to your existing door structure.
• Its compact dimensions and aesthetic, contemporary design make it a visually pleasing addition.
• The system is versatile and can be used with a variety of tools, including sensors, remote controls, push buttons, pet switches, photocells, card readers, and magnetic locks.
• You have the freedom to switch between window and door modes.
• Furthermore, its module is compatible with 433.92Hz, making it suitable for integration with smart homes.

Microcomputer Controller

Use most advanced technology to meet your needs, there are 6 dip switches and 5 modes for different functions.

Efficient Motor

Adopt brushless DC 24V electric motor, long life and high efficiency.

Hanging Wheel

The hanging wheels are made of aluminium material, longer life and more stronger.

Wireless Push Buttons

One mounted inside and one outside, you can just push it for opening the door automaticlly.

Technical Specifications

Single leaf door weight: 1*60kg

Door width: max 47.2inch(1.2m)

Opening speed: 100-400mm/s(adjustable)

Closing speed: 120-220mm/s(adjustable)

Motor: 24V 40W3000rpm

Keep opening time: 0-20s

Power supply: AC100V-220V 50-60Hz

Working temperature: -10°C~70°C

Color: silver
