DIY Automatic Sliding Door Opener SD190 Commercial Sliding Door Operator Supplier

  • $745.55
Shipping calculated at checkout.

Only 500 left!

More Video

DIY Automatic Sliding Door Opener Include

olide SD190 automatic sliding door opener

Components

Quantity

Components

Quantity

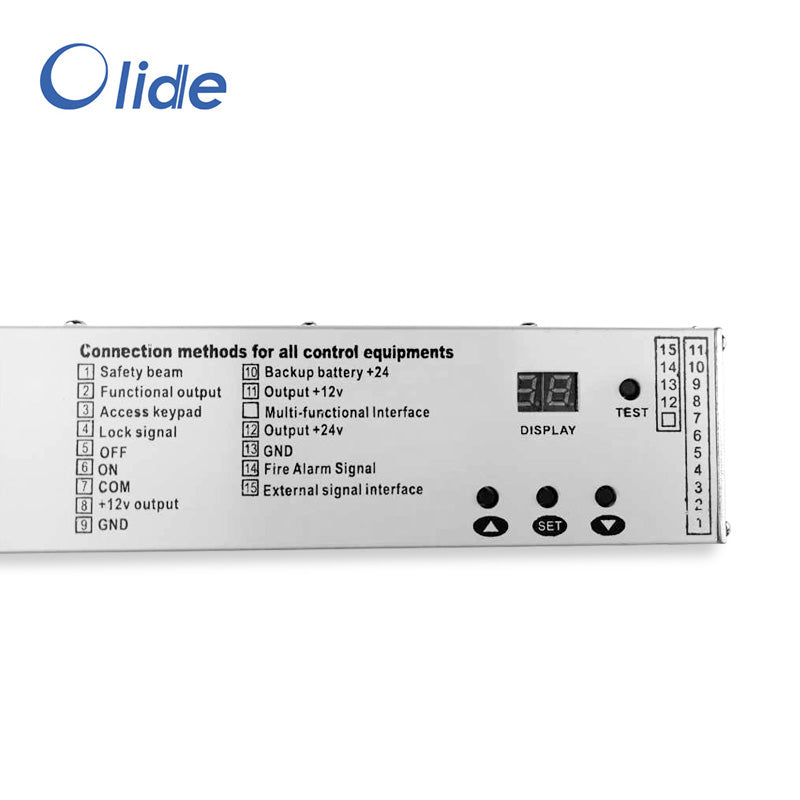

Control panel

1

Receiver

1

Motor gear box assembly

1

Return Pulley

1

Microwave sensor

2

Terminal input assembly

1

Tooth Belt

 1*7m

Power switch

1

End stop

3

Hanger roller bracket

4

Remote control

2

Belt bracket link assembly

2

Device for yaw checking

1

Transformer

1

Aluminum rail and cover

2.1*2pcs

Plastic Push buttons

2

If you need more functions and have additional requirements, like microwave sensor, mobile/ Wifi control device, Debug version, need other accessories or remote controls and etc., please contact us.

Please leave a message about your door size details, single door or double door, framed or frameless, so that we can send you suitable aluminum rail and cover length.

SD190 Commercial Sliding Door Operator Features

  • Good applicability and high selectivity

It can be applied to all kinds of doors, The automatic sliding door opener has a wide range of applications, like convenience stores, dining-hall, hotel, office, bank,and etc..

  • Imported chips, aviation aluminu

High aluminum alloy rail and cover,microcomputer controller,brushless DC motor, remote control door.

  • Low noise, smooth running

Adopt special lubrication measures, special deceleration and static wheel structure, professional design of the crane roller structure, greatly reduce the running noise.

  • Obstacle avoidance design

When the door closes, encounter certain obstacle, automatic door can bounce back automatically

  • Imported motor

With fast speed and service life of more than 1 million times; Brushless dc motor, fully sealed structure. Small size and high power dc brushless motor, longer than brush motor life, less noise.
safety protection circuit device, even if the frequent open and close, can achieve long-term no-fault operation

  • Microcomputer controllers

Use cutting-edge technology,has efficient loop, overload protection, memory and correction functions; It can be checked to know the door leaf (size, weight) to set the operation parameters, so that the door maintains a good operation state of reliability.

Model SD190 Sliding Door Opener Technical Specification

Model

SD190

Door range: Single leaf Double leaf
Door leaf weight: Max 150kg x 1 Max 135kg x 2
Door width: 600~3000mm 600~1500mm
Opening speed:

100~550mm/s

(Adjustable)

100~550mm/s

(Adjustable)

Closing speed:

100~550mm/s

(Adjustable)

100~550mm/s

(Adjustable)

Opening time: 0~9s 0~9s
Motor: DC24V Brushless Servo Motor DC24V Brushless Servo Motor
Supply voltage: Input AC110V/220V; 50-60Hz Input AC110V/220V; 50-60Hz
Working temperature: -20~50°C -20~50°C
Working noise: Less than 50 db Less than 50 db


SD190 automatic framed sliding door opener drawing
