Olide Home Automatic Sliding Door Operator For Pet

  • $397.14
Shipping calculated at checkout.

Only 48 left!

Automatic Sliding Door Opener For Pets Use

residential electric sliding door operator

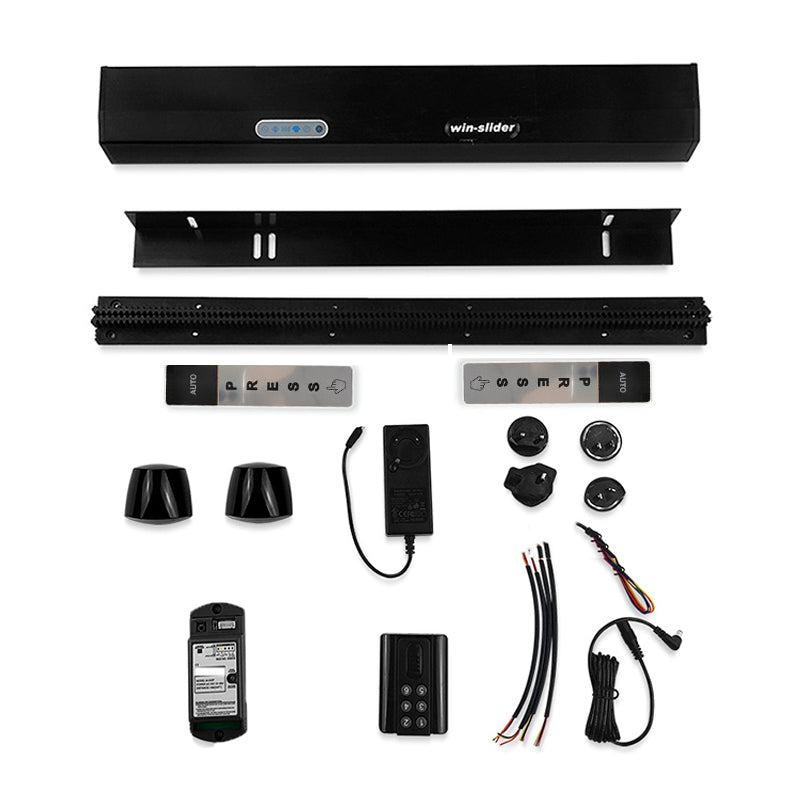

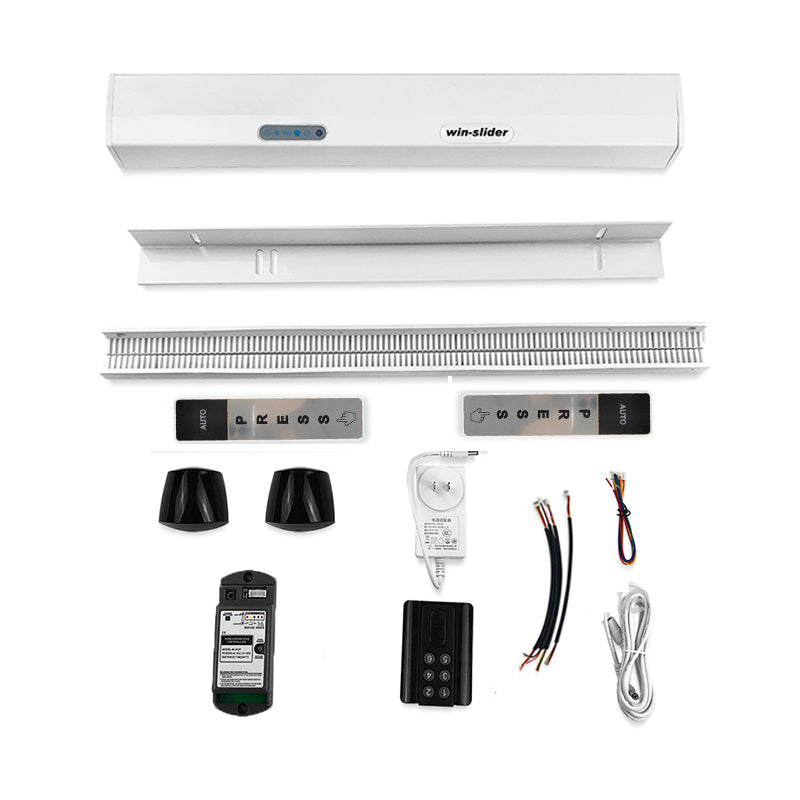

One set electric door opener includes: Auto slider, adapter, install bracket, remote, tooth cap nut, one pair wireless push button, two pair pet presence detector and gear rack.

Residential Sliding Door Opener Manual

Automatic Sliding Door Opener For Pets Features

1. Pet mode can be set, the width of the door can be adjusted, and the width specifically for pets can be set (see below for detailed adjustment methods)

2. Compact size, nice appearance and modern design.

3. System can apply with sensor, remote control, push button, pet switch, photocell, card reader, lock and so on.

4. Window and door mode can be switched arbitrarily.

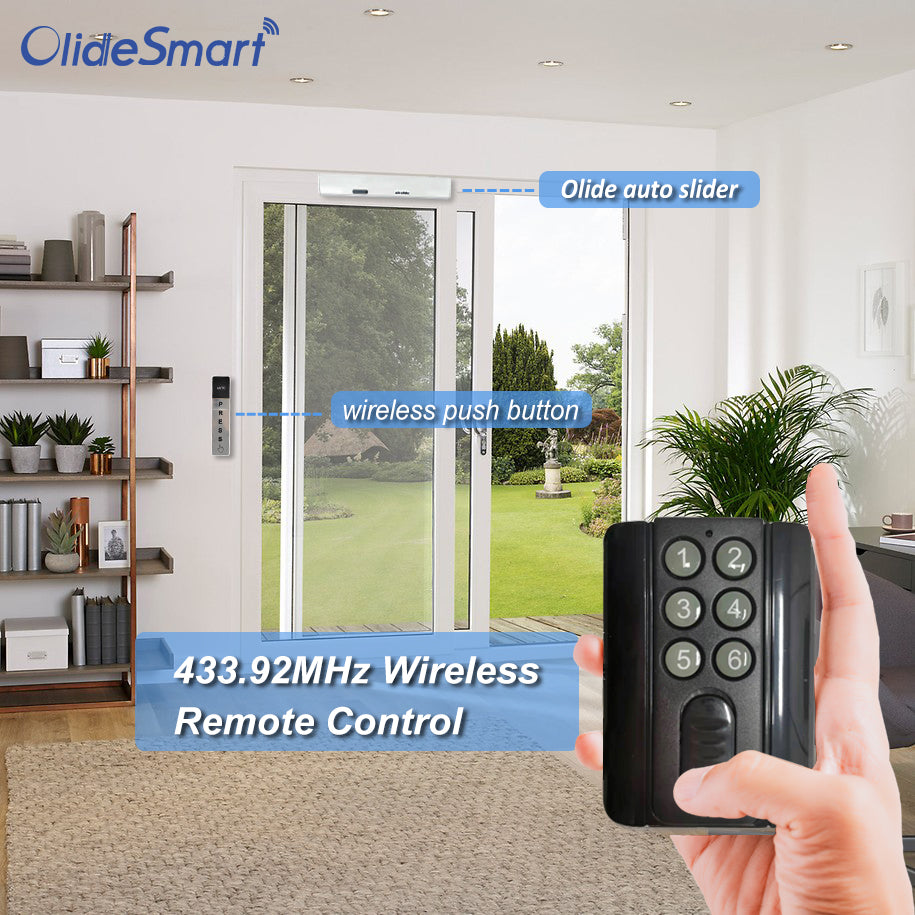

5. 433.92 hz module, can be suit with smart-home.

6. Easy to install, without change existing door structure.

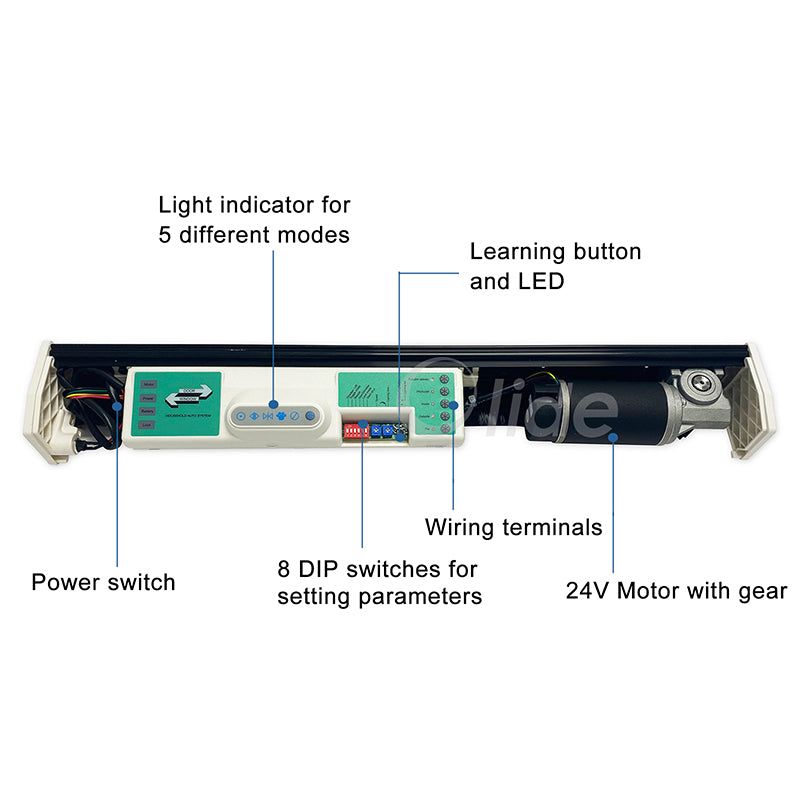

Door Opener Control Panel Detail Diagram

autoamtic sliding door closer

Home Sliding Door For Pets Parameter Adjustment

Speed: Opening 10-45cm/s, Closing 10-25cm/s (adjustable)

Opening Time: 0-20s (adjustable)

Learning Button: Learning button of remote or wireless push button, added and delete remote process

Learning LED: Remote learning indicator

office sliding door operner

Door Opening Width Setting

Turn on the power switch of controller(on the left), make sure DIP 1 is correct selected. The correct order is from open to close, please adjust the DIP switch to opposite position if direction is wrong, turn off the power and make door/window to full closed status, then turn on the power again.

  • Setting of Pet Door Opening Width

1. Make sure it's PET Mode, window or door will open slowly with pet mode indicator flash, you can use your foot to block the width of the door opening you need, (Note: do not get anything stuck in the process) After a short delay, the door will begin to slowly close. Once the door fully closed,  it means that the pet door opening width setting is completed.

  • Normal Opening Width Setting

2. All the indicators will flash, then door will slow open and close to the position, when the all indicators turn from flash to normal, it mean width measure is done controller has saved the opening width.

Five Mode Are Available

  • Automatic Mode: The door will open when a sensor is triggered and close after the preset dwell time has elapse (all signal working normal)
  • Hold-open Mode: The door will open and remain open until another mode is selected.
  • Lock Mode: Door will close and remain closed until another mode is selected.
  • Pet Mode: For use with pet sensors and when pet door opening width has been set. Will open the door to the pet opening width when any pet sensor is triggered and close after the preset dwell time has elapsed. (This mode can only be set when a pet sensor is connected)
  • Manual Mode: The door can be manually operated, the system will not drive the door.

Sliding Door Installation (for more detail, can see the video)


electric sliding door opener for pet installation

Residential Sliding Door Opener Technical Specifications

Power supply: 100-240V
Max weight: 80kg
Max width: 5 meters
Standard track: 1 meter(Length can be customized)
Color: White/black
Lemgth of track: 0.5 meter/pc
Applications: Door of kitchen and balcony, office, shop front and aisle; french window or other sliding windows

 Wiring Diagram:

wiring diagram with pet sensor
