Microwave Motion Sensor for Automatic Door 24.125Ghz, Autodoor Sensors Supplier

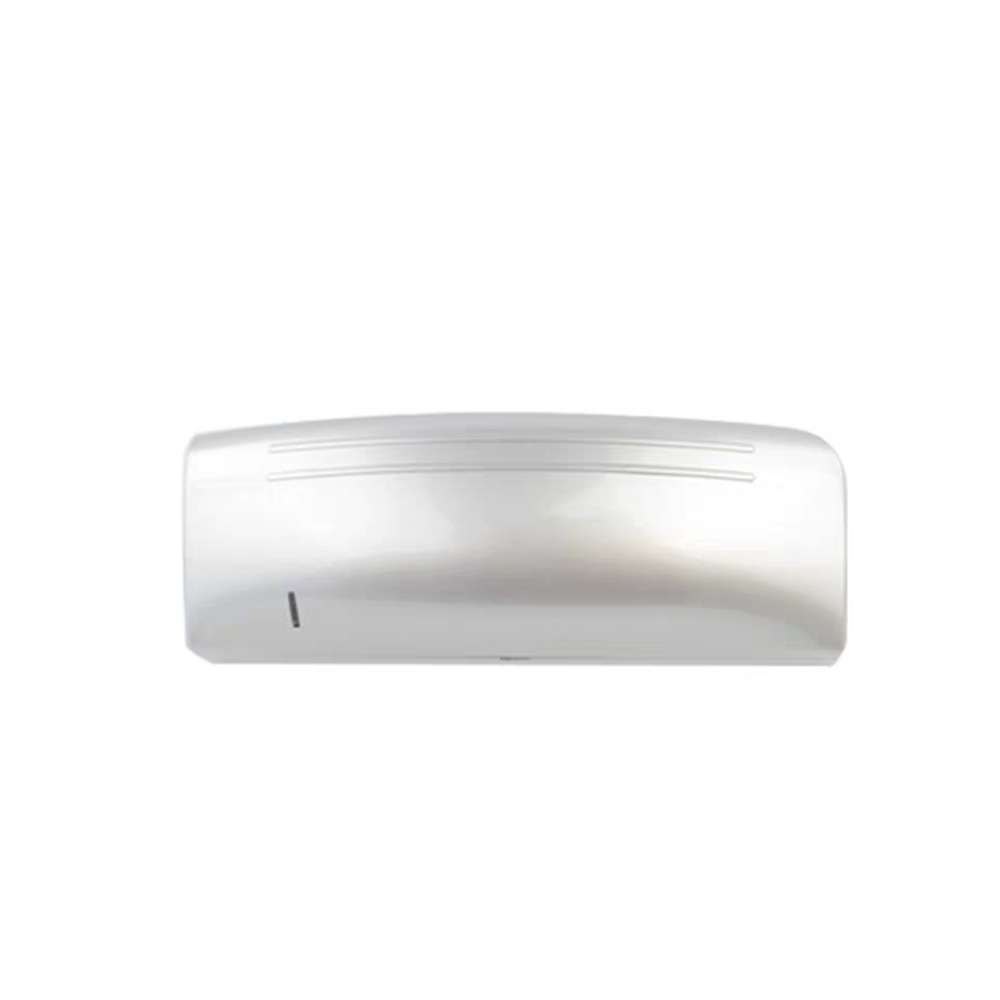

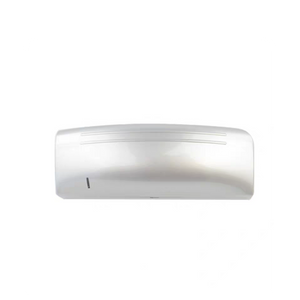

Automatic Door 24Ghz Microwave Motion Sensor
Please notice there are three type sensors on the above picture, we will send you one randomly if you do not specifty.
Automatic Door 24Ghz Microwave Motion Sensor Technicial Parameter
|
Implementation technology: |
Microwave and microwave sensors | Emission frequency: | 24.12GHz |
| Transmit power: | <20dBm E I RP> | Emission frequency density: | <5m W/cm2 |
| Maximum installation height: | 4m | Installation angle: | 15-45 |
| Maximum detection range: | 4mx2m (installation height 2.2m) | Detection mode: | motion |
| Supply voltage: | 12V-24V | Power frequency: | 50-60Hz |
| Power consumption: | <2W (VA) | Relay output: | Normally open signal |
| Maximum conversion current: | 1A resistance | Output hold time: | 0.5s |
| Operating temperature: | -20°C - 55°C | Case plastic: | ABS plastic |
| Shell color: | black/silver |
Automatic Door 24Ghz Microwave Motion Sensor Component Description
- X-Y axis flexible antenna adjustment mode
- Intelligent optimization of the detection control circuit
- Imported microwave sensor module
- ANS fire retardant material
- Adjustable angle of induction
Olide Automatic Door Microwave Sensor Application
This sensor is mainly used in induction automatic doors, electronic access control, machine tool equipment and so on.
