Phone APP Control Swing Door Operator Alexa Google Speaker Workable

  • $573.16
Shipping calculated at checkout.

Only 459 left!

Alexa Control Automatic Swing Door

Phone APP Control Swing Door Operator Alexa Google Speaker Workable

phone APP control automatic swing door opener

Equipped with WiFi access control switch, can connect with smart speaker Alexa and Google, will be able to control the opening and closing of the door by voice. Also with the network, you can through the phone APP to open and close your door at anywhere and anytime.

DSW120 Swing Door Opener Manual

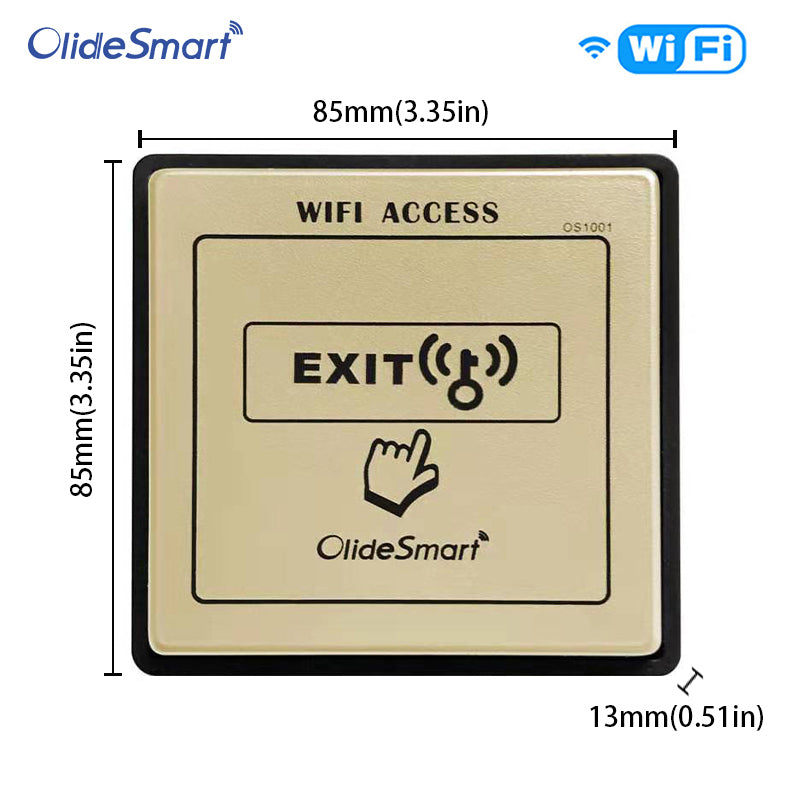

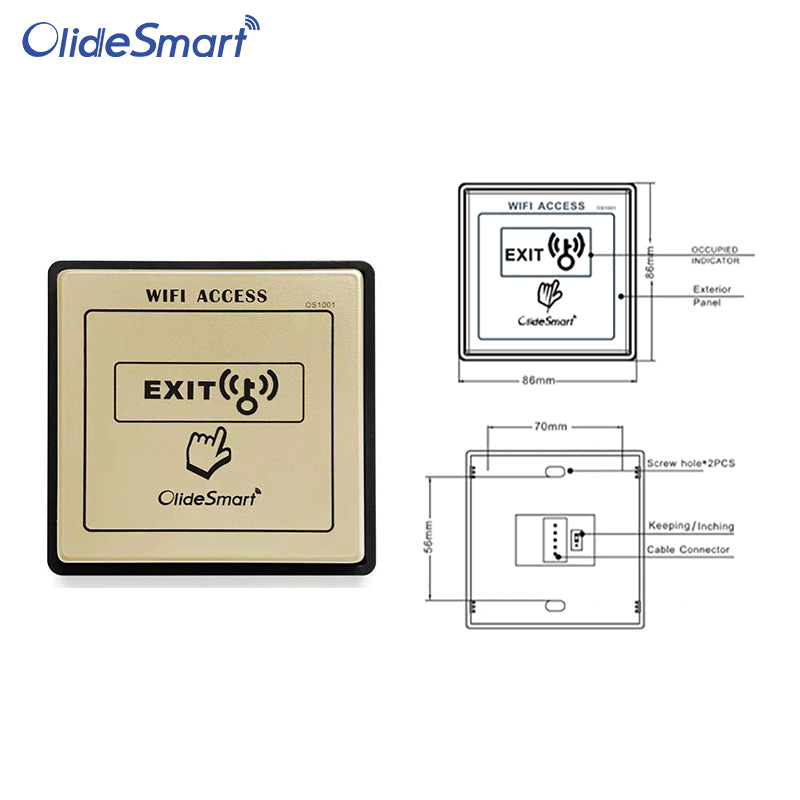

OS1001 WiFi Switch Manual

Excellent Option For Elderly/Disabled

smart wifi automatic swing door opener for disabled

For folks who are elderly or disabled, remote control and smart speakers can work with automatic door operator.Thanks to more innovative technology, they will not suffer anymore from inconvenience while passing across the door.

Set Parameters With Hand Programmer

automatic swing door operator

Wireless Remote Control

  • The remotes that come in this kit are Wireless and not hardwire;
  • The remotes working frequency is 433.92MHz;
  • You can add up to 15 wireless devices per automatic door opener.automatic swing door operator with wireless remote control

Door Open Direction

Inward open door use pull arm, outward open door use push arm;

automatic swing door operator open direction

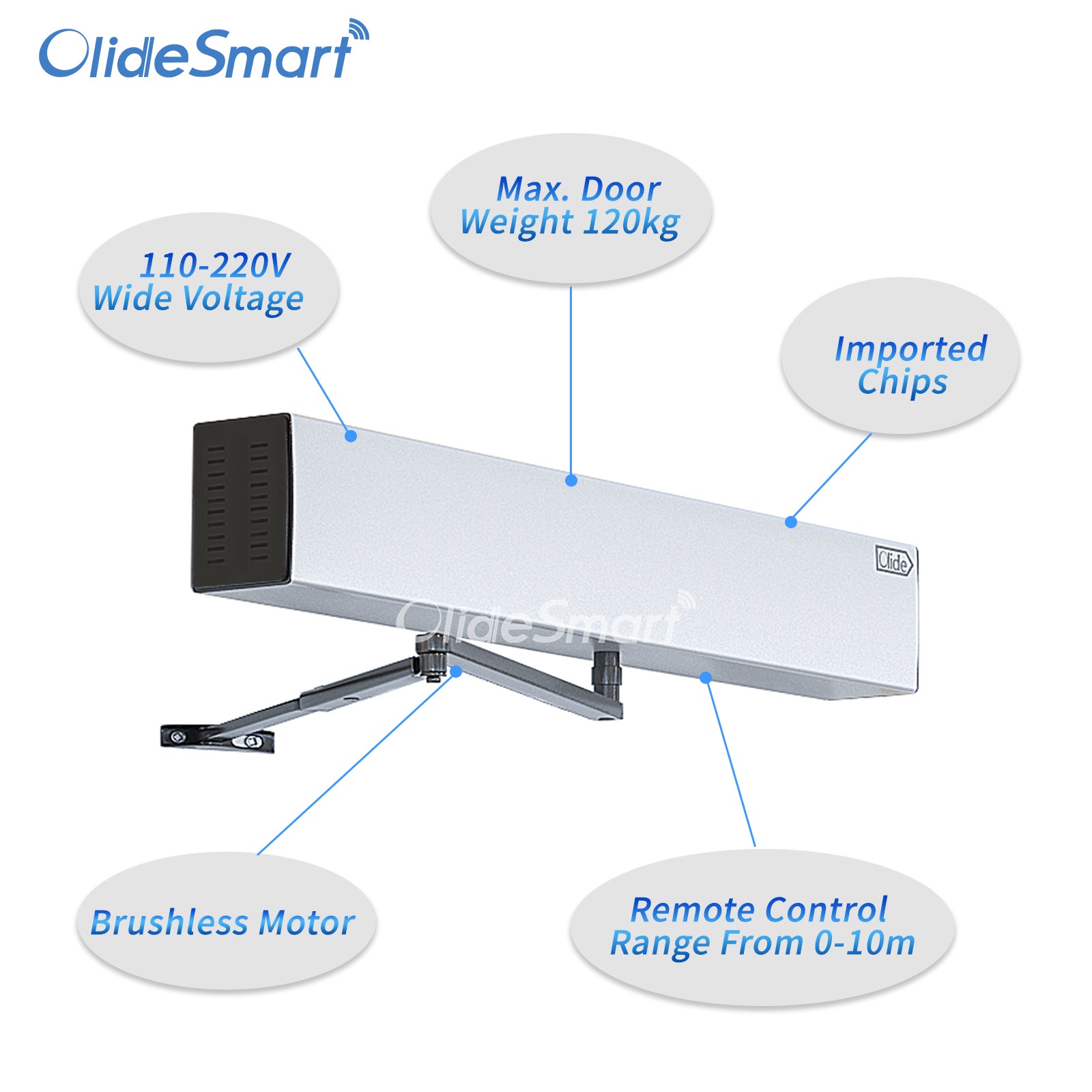

Olide-120bs Swing Door Operator Technical Specifications

Swing Application: one-way inswing or outswing open, single leaf and double leaf standard doors
Voltage: 110-220 VAC +/-10%
Motor: DC 24V brushless motor
Power Consumption: 50W
Opening Time: 3-7 sec. @ 90 degrees
Hold Open Time: 1-30 sec. Adjustable
Max. Door Frame Depth: 200mm / 7.87"(with push arm)
Door Width: Max. 1200mm / 47.2" ; Min. 660mm / 26"
Max. Opening Angle: 120 degrees
Environment Temperature: -20C to 50C -4F to 122F
Operation Noise: Less than 55db

Wiring Diagram with Wifi Switch

dsw120 automatic swing door opener with wifi switch wiring diagram
