Smart Residential Electric Swing Door Operator with WiFi RF Remote Control Work Tuya App

  • $563.00
Shipping calculated at checkout.

Only 85 left!

How to Connect with Tuyasmart APP


The principle is copy the handheld remote function to the WIFI remote controller.  Then it can work with your phone APP tuya to control your door by WIFI Function.

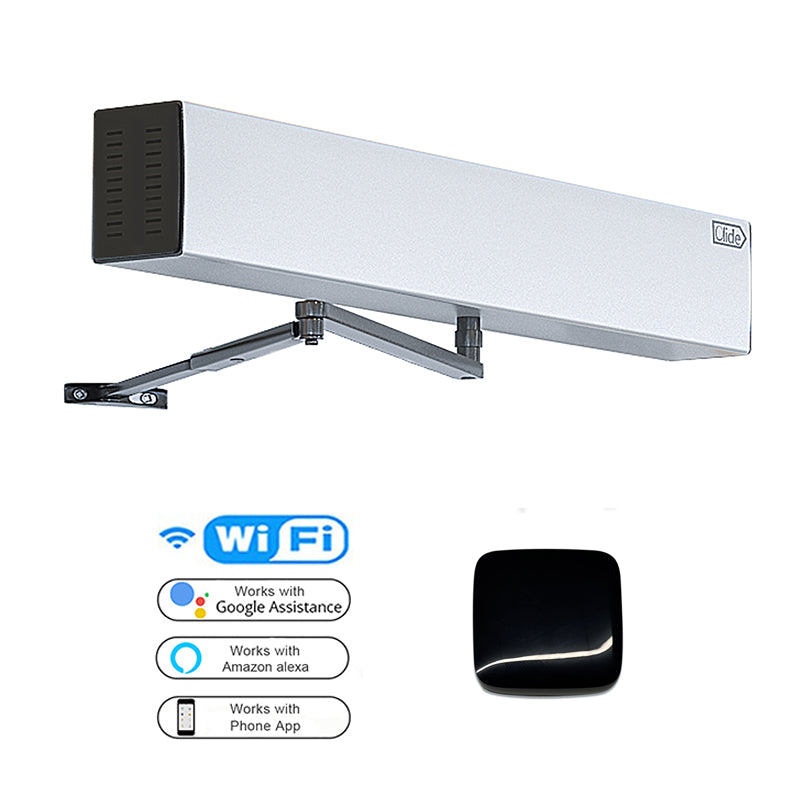

Residential Electric Swing Door Operator with RF Smart Remote Control Tuya App

smart phone control automatic swing door opener

Olide smart residential electric swing door operator with RF smart remote control, it has more complete functions than the previous WiFi switch, it can control RF household electrical appliances,such as doors, gates, electric curtains and other household appliances. It also can works with "Tuyasmart" App, you can remotely operated doors via mobilephone.



smart residential automatic swing door opener

Smart Residential Electric Swing Door Operator Features

  • Smart phone control, timing and smart things function are available in the app; Compatible with iPhone Siri and IFTTT;
  • No need wiring, it's code learning connection, convenient and fast;
  • Remotely control, you can control the door opener even you are not at home;

remote control door opener via phone app

  • Push and go function is available, and the door will stop and re-open when something in the doorway, more convenient and safer;
  • Both can automatically and manually open the door, closing force is adjustable, easily open the door by hand;
  • 100% wireless remote control, control distance is within 10m;
  • Easily adjust parameters with debugging handle, such as opening/closing speed, open directions;

residential electric swing door operator features

Olide Automatic Swing Door Advantages

residential electric swing door operator advantages

Installation and Technical Parameters

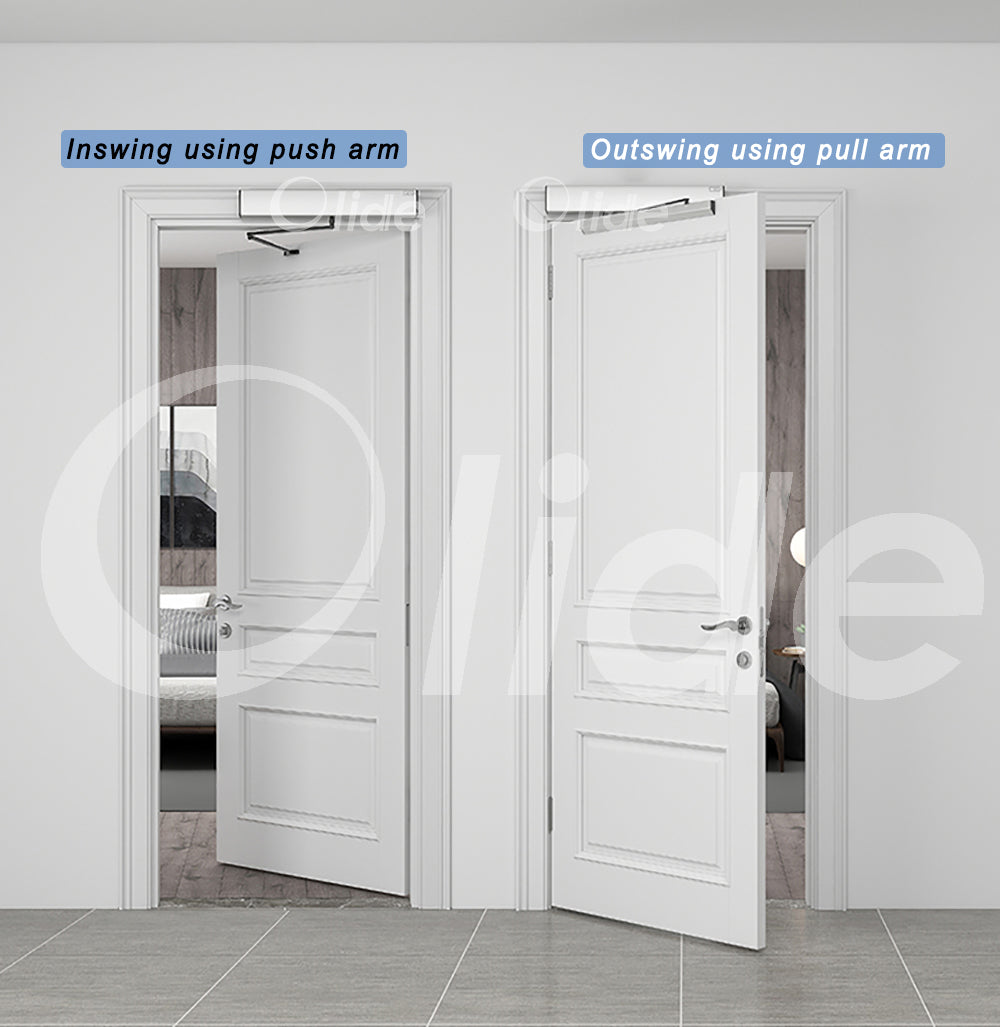

Olide automatic swing door opener both with pull and push arms, inswing and outswing door can use. The wifi universal remote is code matching use, no wiring is required.

olide automatic swing door opener opening directions

Olide-120B swing door opener

Swing Application: one-way inswing or outswing open, single leaf and double leaf standard doors
Voltage: 110-220 VAC +/-10%
Motor: DC 24V brushless motor
Power Consumption: 50W
Opening Time: 3-7 sec. @ 90 degrees
Hold Open Time: 1-30 sec. Adjustable
Max. Door Frame Depth: 450mm / 17.7"
Door Width: Max. 1200mm / 47.2" Min. 660mm / 26"
Max. Opening Angle: 120 degrees
Environment Temperature: -20C to 50C -4F to 122F
Operation Noise: Less than 55db
Opener Size: 21.45''(L)*3.35''(W)*3.74''(H)
Opener Weight: 9.5kg/ 20.9 LBS



WiFi Universal Remote Control

Type: Intelligent box Model: MX-IRRFA1
Material: PC/ABS Size:  Φ3.15" x H1.57"
Network: WiFi 2.4GHz/b/g/n Net weight: 0.1lb
Frequency:

IR:38KHz

RF range: 300MHz

~868MHz(OOk)

Working temperature: -20-55°C
Power input: DC5V, 1A-2A Micro USB Power consumption: less than 0.5W
Application:

Doors, gates, electric curtains and other home appliances;

Olide-120B Automatic Swing Door Manual


We Also Recommend


QUESTIONS & ANSWERS

Ask a Question
  • How do you remove cover to install unit

    Hi,
    Please refer to the video at point 1:50, just use a screwdriver to open it
    https://www.youtube.com/watch?v=_zJSqoB-x-E&t=209s

  • My door opens and closes and then opens again and keeps repeating.

    Hi, please add hold closing force and set the parameter manual open to o:n, can not open manually, to see if it works;
    If not, please also check the open direction, you can power off, and manually open the door in half open, then power on. If the door come close first, the open direction is correct. If the door come to open first, you need to change open direction by hand programmer in F2 Setting;

    If still not work, please send us video to confirm.

  • I am a contractor and I am looking for solutions for my customers with disabilities. Can the door be opened if the power goes out?

    Hi, the door can be operated manually if the power goes out.

  • My remote doesn't work, can you help?

    Hi,

    First, you can check if there is battery inside, and the battery is good;
    The second is confirm if the remote is paired with door opener; If still doesn't work, please check the parameter -- hold open time, if it's set to "--", it's infinity, the remote won't work in this situation.
    And the final reason is the signal not good, you can pull out the antenna from the door opener controller.

  • Can I use 1 remote control open 2 doors?

    Hi, Yes, one remote control can pair with multiple automatic door openers, and they can be opened and closed in tha same time. You can also use the phone APP to control them together.
