Olidesmart Hardwird Infrared Detector M237, Automatic Door Infrared Sensor

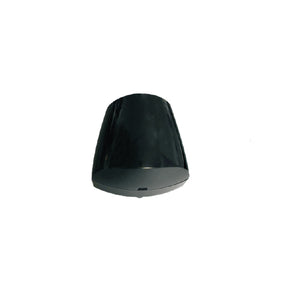

Olidesmart Hardwird Infrared Detector M237
- One-piece cover design, beautiful, dustproof, easy fixed and installation;
- Can be used in supermarkets, stores, and various kinds of automatic doorwhich pedestrian pass through frequently. can be used as Human existence detection in small space. Also has auto-induction and anti-pinch function;
- One way to emit ,one way to receive, intelligent adaptive infrared sensors;
- Induction area and Angle can be adjusted;
- Always self-correcting once be influenced by quake, distortion, move dark and sunshine. Ensure the sensor can work durable.
M237 Infrared Sensor Technical Parameters
Power supply | AC/DC 12-24V |
Quiescent currect | 11mA(12V) |
Dynamic currect | 45mA(12V) |
Working temps | -20°C+60°C |
Sensing method | Infrared scanning |
Scanning area | 100x80mm |
Detection distance(MAX) | 1000mm |
Installation height | <=2600mm |
Dimension | 63Lx 57Wx 52H mm |
