Electric Door Closer With Magnetic Lock, Automatic Swing Door Opener For Home

  • $589.99
Shipping calculated at checkout.

Only 82 left!

DSW120 Swing Door Opener Installation Video

Automatic Door Operator with Wireless Push Button Working Video

Magnetic Lock Automatic Swing Door Opener

automatic swing door opener

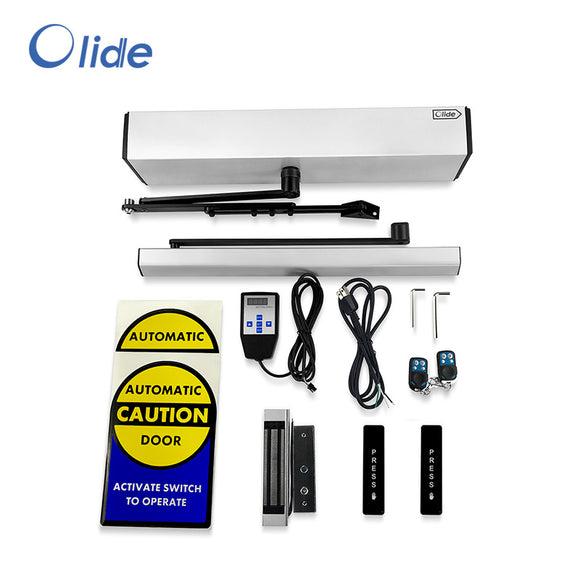

One set electric door opener includes: Opener,2pcs arm, 2pcs remote,1pc hand programmer,1pc magnetic lock,1set wireless push switch,1pc power plug;

Electric door closer with wireless push button switch, no need wiring with door opener, it is encoding use, beautiful and convenient. And the magnetic lock will produce a strong suction force to tightly attract the iron plate to lock the door. As long as a small current electromagnetic lock will produce a huge magnetic force, the access control system that controls the power of the electromagnetic lock will cut off the power after identifying the correct personnel, and the electromagnetic lock can open the door after it loses its suction.

Olide Electric Door Closer With Magnetic Lock Features

automatic swing door opener
1.Reinforced high strength aluminum alloy and imported original parts used.

2. Imported motor from Germany with fast speed and service life of more than 1 million times,it can work stable and with smooth operation.

3. Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage.

4. Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.

5. Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.

6. The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (lock, normally open, reset, automatic).

7. The swing door opener model SW120 can bear withstand the door weight of 120kgs(264.55lbs).

Automatic Swing Door Closer Actuator (2)

Automatic Swing Door Closer Actuator (2)

Automatic Swing Door Closer Actuator (2)

swing door opener

Parameters easily adjustable by hand programmer:
①Opening or closing speeds
​②Manually open force (Push go function)
③Opening direction
④Hold -open time

Features of Wireless Push Button

  • Use self-learning to code, convenient for customers to add push button switch;
  • High stability of wireless transmission and reception -- Adopting sound meter resonator frequency stabilization technology, good frequency consistency, high stability of wireless transmission and reception;
  • Beautiful and wear-resistant appearance -- PU varnish shell curing and thick film labeling, beautiful shell, wear-resistant and anti-dropping screw fixing;
  • Long battery life -- using low-power emission technology, low power consumption, long battery life;
  • The trigger is light and reliable -- the three-point press trigger design ensures that the wireless push button the entire panel strip is effective;

Olide Electric Door Closer With Magnetic Lock Wiring Diagram

magnetic lock door closer Wiring diagram

Olide Electric Door Closer With Magnetic Lock Technical Specifications

Push arm and pulling arm both available, can be mounted on the hinge side and opposite hinge side.

automatic swing door opener push and pull arms

DSW120 Swing Door Opener Manual

We Also Recommend


Ask a Question
  • Why my magnetic lock can not work?

    Hi Cris,
    You need to press lock button on remote for the first close for working with the magnetic lock .

  • I have no space above my door. Is it possible to reverse the installation and install the mechanism on the (inward opening) door and the push arm on the trim above?


    Is there no space both inside and outside of the door? Can you send me a photo? I can confirm for you. There is not much space need to install the door opener bottom plate.
