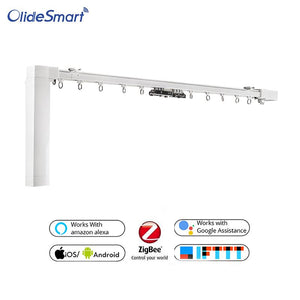

Phone Control Smart Curtain System ZigBee Gateway Version Work With Alexa
Phone Control Smart Curtain System ZigBee Gateway Version
Wireless connection: ZigBee, 2.4GHz
You can control the curtain motor through ZigBee gateway (not inclued in the set)
Notice: Need to add the ZigBee device in TuyaSmart APP at first.Then add the curtain device. Details as below.
Package contents
1.Motor X 1
2.Remote X 1
3.Tracks (can be customized based on your window length)
4.Mounting accessories
5.English Instruction
How to choose the length of tracks?
*2.2m track is suitable for 1.00m~2.16m curtains
*3.2m track is suitable for 2.16m~3.16m curtains
*4.2m track is suitable for 3.16m~4.16m curtains
*5.2m track is suitable for 4.16m~5.16m curtains
*6.2m track is suitable for 5.16m~6.16m curtains
*7.2m track is suitable for 6.16m~7.16m curtains
*8.2m track is suitable for 7.16m~8.16m curtains
Advantages Of Smart Curtain
- Smart Device Control By Mobile Phone, Alexa,Echo
- Excellent Choice For Disabled/Elderly
- Enjoy A Lazy Morning
- Set Timers And Holiday Mode
- Manual Control When Power Off
Smart Curtain System Features
- 【Silent Operation】Super quiet Smart Wifi motorized curtain system，no worry about the noises.
- 【Smart Control】Voice control,can work with Amazon Alexa and Google Home.Also can be controlled by Tuya APP.
- 【Easy installation】With detailed instructions and the installation video,you can start a DIY experience.
- 【Light trigger mode】Manually Pull to trigger the motor then it will operate automatically.
- 【Flexible length adjusting】Can adjust the length of track to meet you needs.
Installation For Smart Curtain System
- Single track and dual track installation
- Ceiling installation and wall installation
Technical Specifications
| Model Number: | BCM300D-TY | Wattage: | 40W |
| Rated Torque: | 1.2Nm | IP: | IP20 |
| Voltage: | AC110-240V 50Hz/60Hz | Is-customized: | YES |
| Nominal Consumption: | 40W |
FAQ
Question: Where is the reserved socket?
Auswer:The socket is reserved on the wall near the motor (the motor has its own power cord 1 meter long), as shown in the figure below. The reserved position shall be prevented from being blocked by the motor.
Question: How many ways do curtains open and close?
Auswer: Two kinds, single or dual.
Users can choose single or dual opening (the most common is dual opening) according to their personal needs.
Question: How many does the curtain box need to be reserved?
Auswer: 10cm reserved for single motor and 20cm reserved for dual motor.
Question: How to determine the track length?
Auswer: Full wall: track length = L- 4cm;
Not full wall: track length = L+ 60cm
We Also Recommend
QUESTIONS & ANSWERS
Ask a Question-
I've noticed that the motor in this package is referenced BCM300D-TY, just like the motor used in the Wifi smart curtain (OLIDE WIFI SMART CURTAIN MOTOR) I bought a while ago. Does this mean that the Zigbee motor and the Wifi motor are the same, but they are using a different dongle ? If yes, is it possible to replace the Wifi dongle with a Zigbee dongle ?
Hi,
No, you can not replace the wifi dongle with a Zigbee dongle; the inside chip of the controller are different. -
2 part question. 1). Is there a weight limit on the blinds that the motor can support? 2). How many runners are included in the package? Can additional runners be purchased?
Hi Todd,
1). The Max. bearing weight of blinds is 40kg;
2). Per meter is 8pcs runners, 2.2m is 16pcs, 3.2m is 24pcs, etc. It can be added if you need extra -
Are the wall mounts included, or does it only come with ceiling mounts?
2 mounting options, the standard package only includes ceiling mounting brackets, if you need two kinds of mounting accessories, you need to make a note in the order.
