Automatic Roller Blind of Intelligent Shade Kit, Multiple Terminal Control By One Controller
Intelligent Living Space Initiated By Electric Roller Blind
Multiple Terminals Are Contrled by One Controler, Automatic Electric Roller Blind of Intelligence
One button to control the rise and fall, instantly improving your quality of life.
Note: The price is determined by the size, so please contact us
A Complete Set of Intelligent Electric Roller Blind
First step to realize intelligent furniture
-
Upper round high-strength aluminum alloy with a diameter of 38mm
Solid and firm, bigger and more durable
-
Intelligent Furniture, Roller Blind
A curtain could never be excellent without an excellent motor
-
AC direct interpolation, without inner battery
Simple and convenient, always available when power flows
-
Lithium battery motor with high capacity
Various fields, always available to use no matter when power cut happens or not
-
One time charge could last for 1000-2000 hours of sleep mode
2-3 times of ascending and descending everyday(The wider the size or the larger the surface, the more the battery is consumed of the same product)
-
Driven by solar energy(The solar energy plate needs extra purchase)
Energy saving and environmental friendly; this product to be used in an area that fully saturated by sun ray
-
Driven by handheld pole control
Appropriate for those finding it hard to locate the remote controllers
Technical Specifications
Model of Motor: | K25-4E-1.1-26 | Protection Level: | IP44 |
Length: | 395mm | Ways of Installation: | Internal and External |
Application: | Charge Type and Non-charge Type | Force Distance: | 1.1Nm |
Rotation Rate: | 26r/min | Input Voltage: | 9V |
Input Current: | 150mA | Capacity of the Motor: | 10W |
Intelligent Automatic Roller Blinds Motor
-
Silenced
Effectively lower the noise at an extent of 5-15dB.
-
Intelligent
Micro controlling the system of industrial level controlling the system.Possible to resist d isturbance, heat, coldness and lower the malfunction rate. Ensure that the electric rooler blind could steadily work in long term usage and in various environments.
-
Low Consumption
Consumption of power is lowered thanks to the new nano modules which is environment friendly as well as energy saving.
-
Long Lifespan
Introduction Of Roller Blinds
Surface Material of the Roller Blind
Exquisite coating of laminates craftsmanship. Profesional shade ability
Apply exquisite coating of laminates craftsmanship, Printed by environmental friendly materials

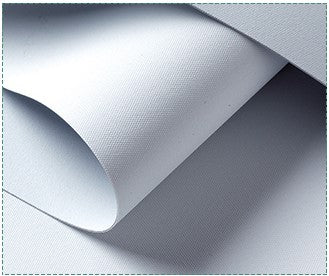

Foaming Material
The shade curtains could be mainly categorized into two types, silver coating and white coating
Silver coating: Nomally worn and losing color after 1 year. Scraps will fall like rains when folded. | Foaming coating: Healthy and environmental friendly. Long lifespan. Usually used for class roller blind. |
Image of high quality with water resistance and protection towards environment, customized images of uniqueness
Any image, whatever you want can be printed beutifully.
Healthy and environmental friendly (Water Soluble Pigments)
Half-shade/ Full-shade
The effect of half-shade / Pervious to light | The effect of full-shade / Impervious to light |
A Sincere Reminder: The standard width of your customized roller blind of pulling beads system contains the width of accessory parts on both sides which is measured as 3cm.
Half-shade: Weaken the light, bestow the light with softness
Full-shade: Absolutely cease the ray of sun and ultraviolet from penetrating, and get rid of the heat temperature.
Position to Install
External DisplayBoth sides+10cm, height +20cm, impervious to light |
Internal DisplayBoth sides exist a crack of 1.5cm, light leakage prevails |
Method of Measurement
External installation:
1.window width=window width (W)+20cm
2.curtain height=window height (H)+20cm
Internal installation / Top Installation
1.window width=window width (W)-0.5cm
2.curtain height=window height (H)+10cm
3.internal depth of window (D)>6cm
If you have special requirements for the length of the pulling beads, please contact the online customer service.
Note: The method of size measurement is only for reference, internal installation requires the depth (D) to be at least 7cm
Note: The non-punching systematic roller blind has a 2.5cm crack on both sides
Side-push window-external/internal installation |
External-push window-external/internal installation |
Inner-push window-possible to be installed externally |
Standard Punching System (Default)
P7 cycling operation system of strength saving ability in any direction
Stainless steel chip of high quality and technical innovation.
Parts and System
Scene application
Method of Installation
