Olide WiFi Access Control Kit Fingerprint Keypad and Microwave Sensor Door Open System Home&Office
Olide WiFi Access Control Kit Fingerprint Keypad and Microwave Sensor Door Open System Home&Office

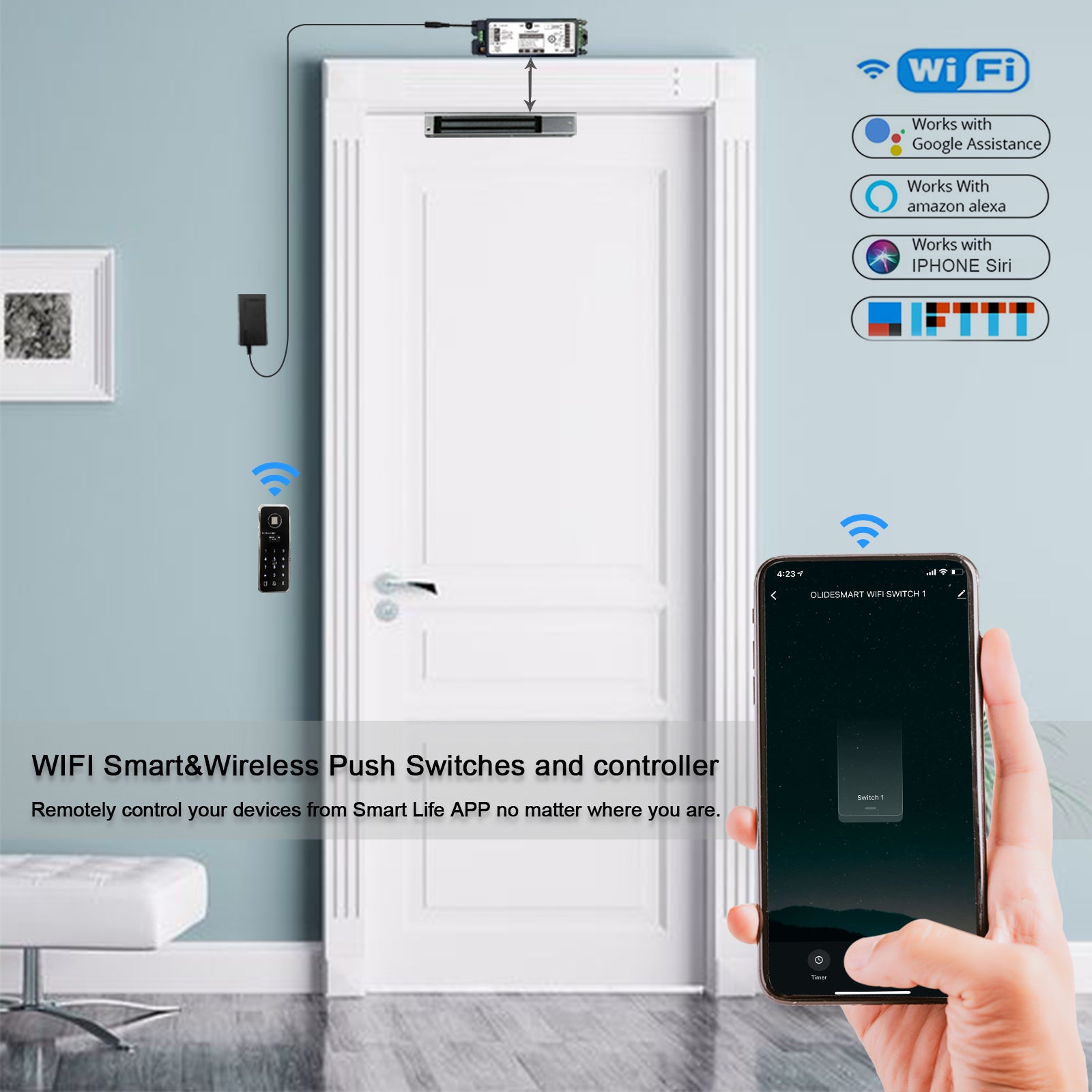

The wifi access control kit with fingerprint keypad is a good choice for outdoors and office. Doors can be activated by fingerprint access keypad and you don't have to bring the key. You can also unlock doors by your smartphone, anywhere you are, there is no distance limit.
- [CONVENIENT] When someone come to your home, such as cleaners, takeaways, or other guests, you can unlock the door for them remotely via your mobile phone;
- [SAFETY] Only those who know the password or have a card can enter, which can prevent irrelevant persons from entering important places;
- [Functional] The wireless fingerprint access keypad has the attendance function, 490 users can be recorded and the attendance data can be exported;
- [Timing and Share] The system is working with tuya smart app, and there is timing function available, you can set schedule to control doors; And you can share control with your family, friends and employees;
Technical Parameters
270 Fingerprint Keypad Specifications
| Working mode: | 2.4G wireless code alignment |
| Working voltage: | 4.2V-6.5V (4pcs A battery) |
| Static current: | <=35uA |
| Working current: | 70MA |
| User capacity: |
10 administrators, 490pcs users. (Fingerprint record: 200pcs) |
| Record capacity: | 120000pcs |
| Open door method: | Fingerprint, card, password |
| Fingerprint sensor: | Semiconductor |
| FRR: | <=1% |
| FAR: | <=0.001% |
| Card type: | 13.56MHZ M1 card |
| Password: | 6 digits |
| Virtual password: | 20 digits |
| System locking function: | Continously verify 10 times, system lock 2 mins. |
| Low voltage alarm: | Voltage lower 4.8V prompt |
| Externalemergency power supply: | Micro USB port |
| Working temp.: | -10°C - 60°C |
| Relative humidity: | 20%-90% |

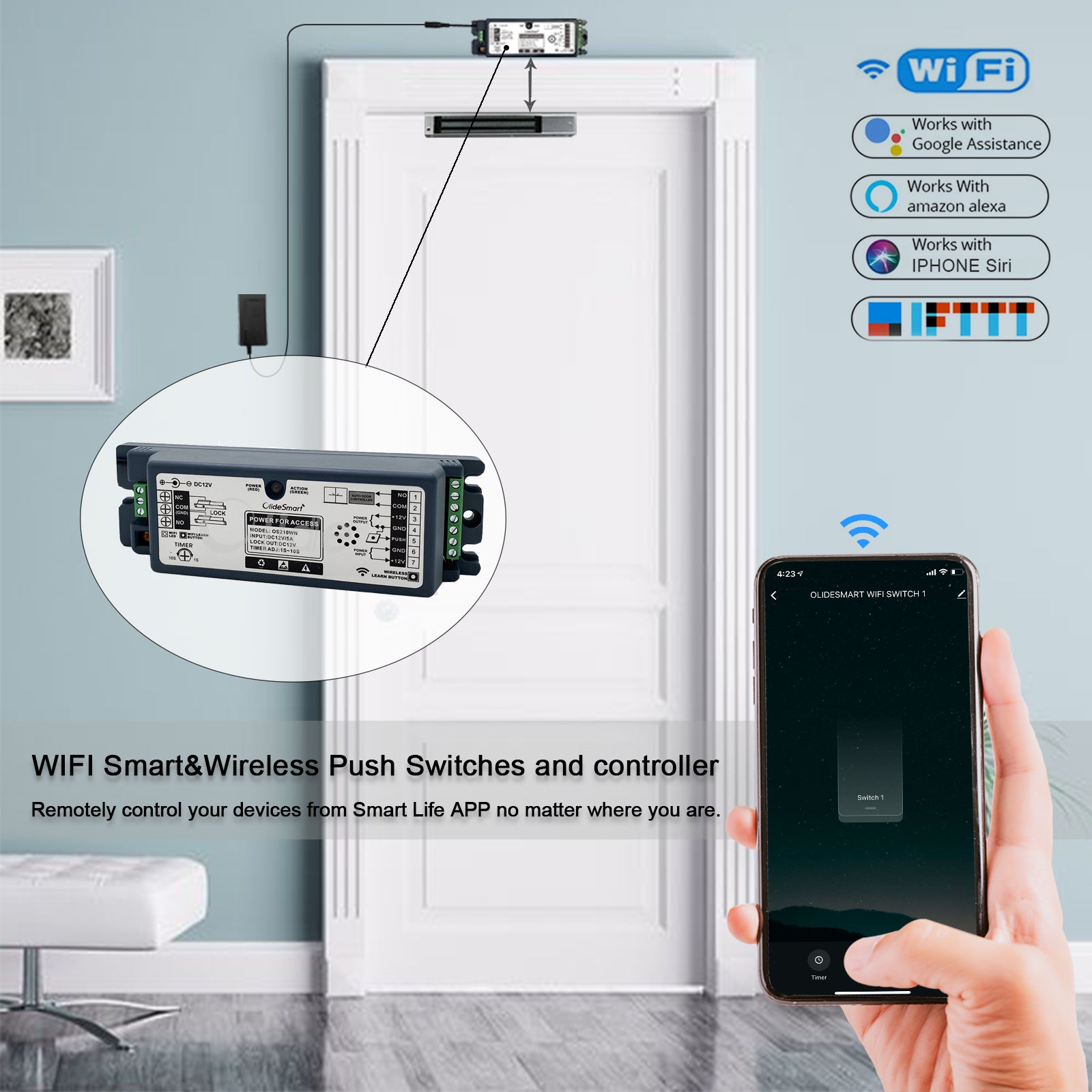

210WN Receiver
| Power supply: | DC12V |
| Static current: | 120mA(Electric lock is not included) |
| Unlock&door opening time difference: | 0.5 second |
| WiFi function: | only can connect 2.4GHz router |
| Overall dimension: | 175(L)x53(W)x37(H)mm |
Power Adapter
Power input: 100V-240V~50/60HZ
Power output: DC12V 3A
Wiring Diagram
We Also Recommend
QUESTIONS & ANSWERS
Ask a Question-
I want to order the OLIDE WIFI ACCESS CONTROL KIT FINGERPRINT KEYPAD AND MICROWAVE SENSOR DOOR OPEN SYSTEM HOME&OFFICE. When do you think it would be delivered to me with this post code, EC1V 7HX?
Hi, the delivery time to UK is about 6-9 days.
