Olidesmart Wireless Card Reader, Fingerprint Kaypad For Automatic Door System

  • $89.99
Shipping calculated at checkout.

Only 76 left!

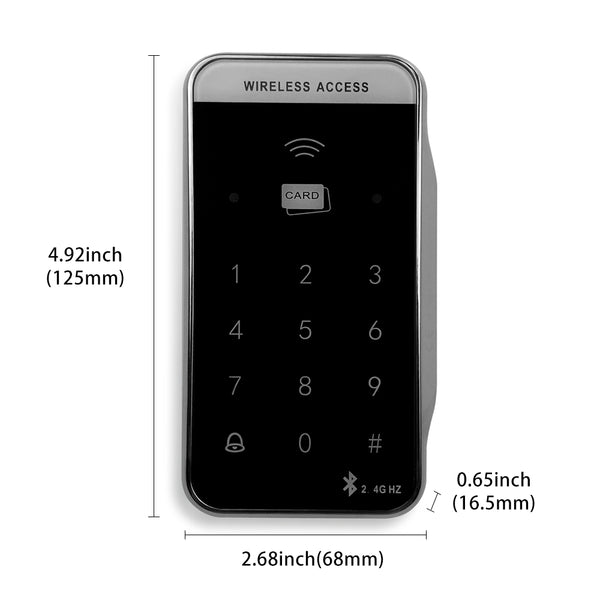

Olidesmart Wireless Card Reader For Automatic Door System

Olidesmart Wireless Access Keypad For Automatic Door Opener

Work with the receiver

receiver

Special function key description

1. Press "9" key 3 seconds for code alignment.
2. The doorbell key act as an exit cancel key during system operation. In standby mode, it can be used as the doorbell key, only when the doorbell key matching with the company’s 2.4G wireless doorbell, it can be effective.

Code Method

Code between power supply and the card reading password access control machine

Press the learning key on the power supply controller, the learning indicator light on the side of learning button lights up. Press the key “9” on the card read access control machine in 10 seconds, continously press for 3 seconds to hear the buzzer sound, then release the “9" button. The power learning light flashes to indicate successful learning.

Wireless Access Control Keypad Technical Specifications

Working Mode: 2.4G wireless code alignment
Working Voltage: 3V-6.5V (4pcs AAA battery)
Low Voltage Alarm: Voltage lower than 3.3V alarm
Static Current: <=50uA
Working Current: 23MA
User Capacity: 1000pcs standard users (IC cards)
Password: 1pcs public password (4 digits)
Open Door Method: Card, password and card+password



Card Type: 13.56MHZM1 or M1
Read Card Distance: 10mm-50mm
Launch Distance: 30 meters in no barrier place
Battery Life: >=12 months (100 times a day)
Output Time: 1-99 seconds adjustable
Working Temperature: -10°C-60°C
Relative Humidity:  20%-90%

Receiver Technical Specifications

Working Mode: 2.4G wireless code alignment Input Voltage: AC/DC12-30V
Static Current: 30mA/DC12V Action Current: 74mA/DC12V
Contact Holding Time: 2 seconds Working Temperature: -10°C-60°C
Relative Humidity: 20%-90% Receicing Sensitivity: -95dbm

Receiver Wiring with Automatic Sliding Door

wiring diagram with aitomatic sliding door

Wiring Diagram With Automatic Swing Door

wiring diagram with automatic swing door

We Also Recommend


QUESTIONS & ANSWERS

Ask a Question
  • Instructions on programming card readers?

    Hi,
    I have sent it to your email, please check.

  • How do you program the keypad codes, key fobs and cards?!

    Hi,
    Here is a video you can refer to:
    https://www.youtube.com/watch?v=8m_moOaLZQQ
