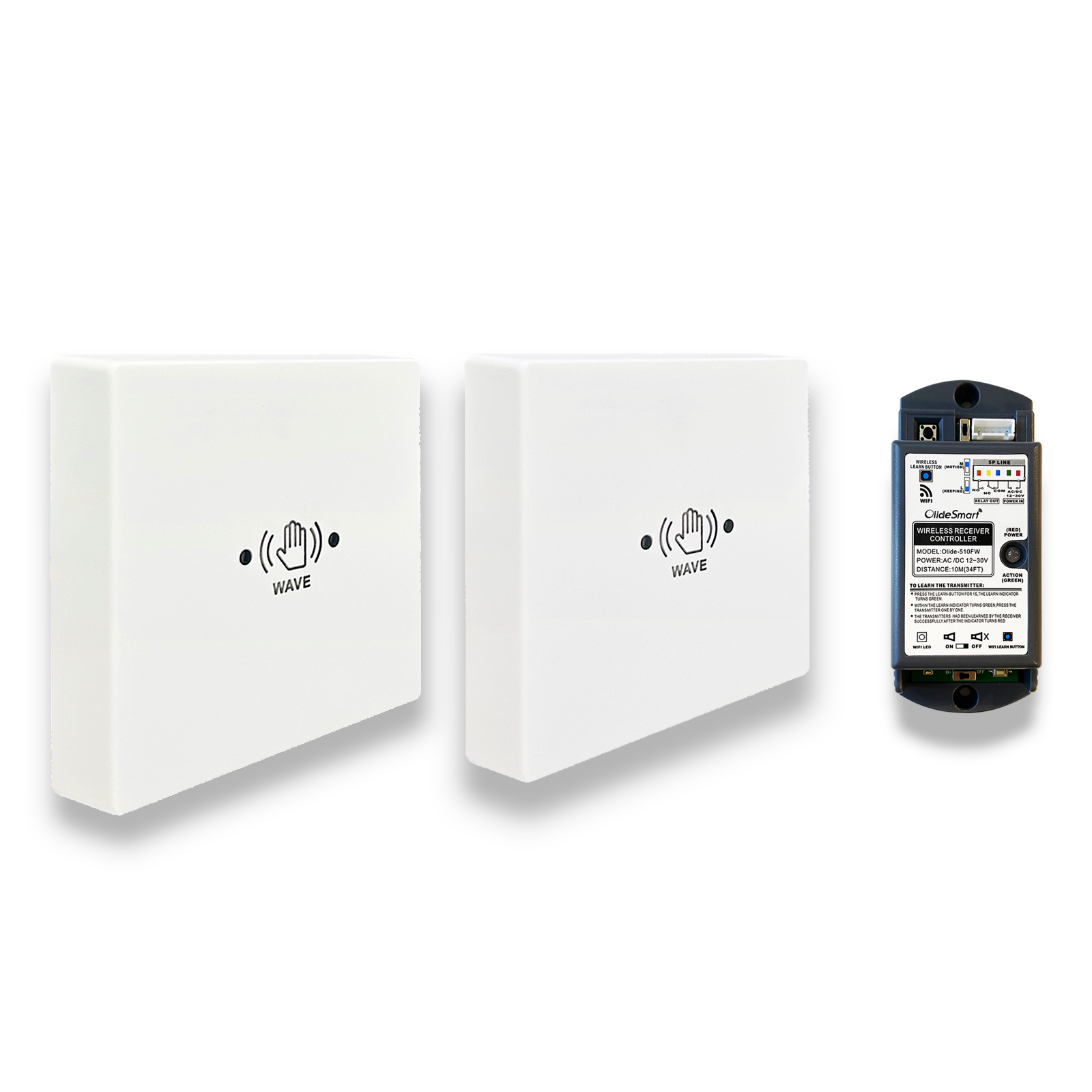

Olide Smart Infrared Touchless Switch, 86 Type Wave to Open Sensor Switch for Automatic Door System
Olide Smart Infrared Touchless Switch, 86 Type Wave to Open Sensor Switch for Automatic Door System
This Olide Smart Infrared Touchless Switch is an 86 type sensor switch that allows for touchless operation with a quick and easy wave. With adjustable sensing distance and the option for wireless or wired setup, it's a convenient addition to any automatic door system. Increase efficiency and reduce contact with this smart sensor switch.
86 Type Smart Touchless Infrared Sensor Switch Features
- Touchless Sensor Operation: This sensor switch allows for hands-free operation of automatic doors, providing a hygienic and convenient entry system without the need to physically touch the switch.
- Adjustable Detection Range: The sensor range can be adjusted from 0 to 30 cm, offering flexibility in how the switch responds to movement, ensuring it meets the specific needs of various environments.
- LED Light Indicator: Built-in LED lights provide visual feedback to indicate the status of the switch, making it easy to see when the sensor is activated or when the door is ready to open.
- Wireless and Wired Versions Available: The switch is available in both wireless and wired versions, allowing you to choose the best option based on your installation requirements and preferences.

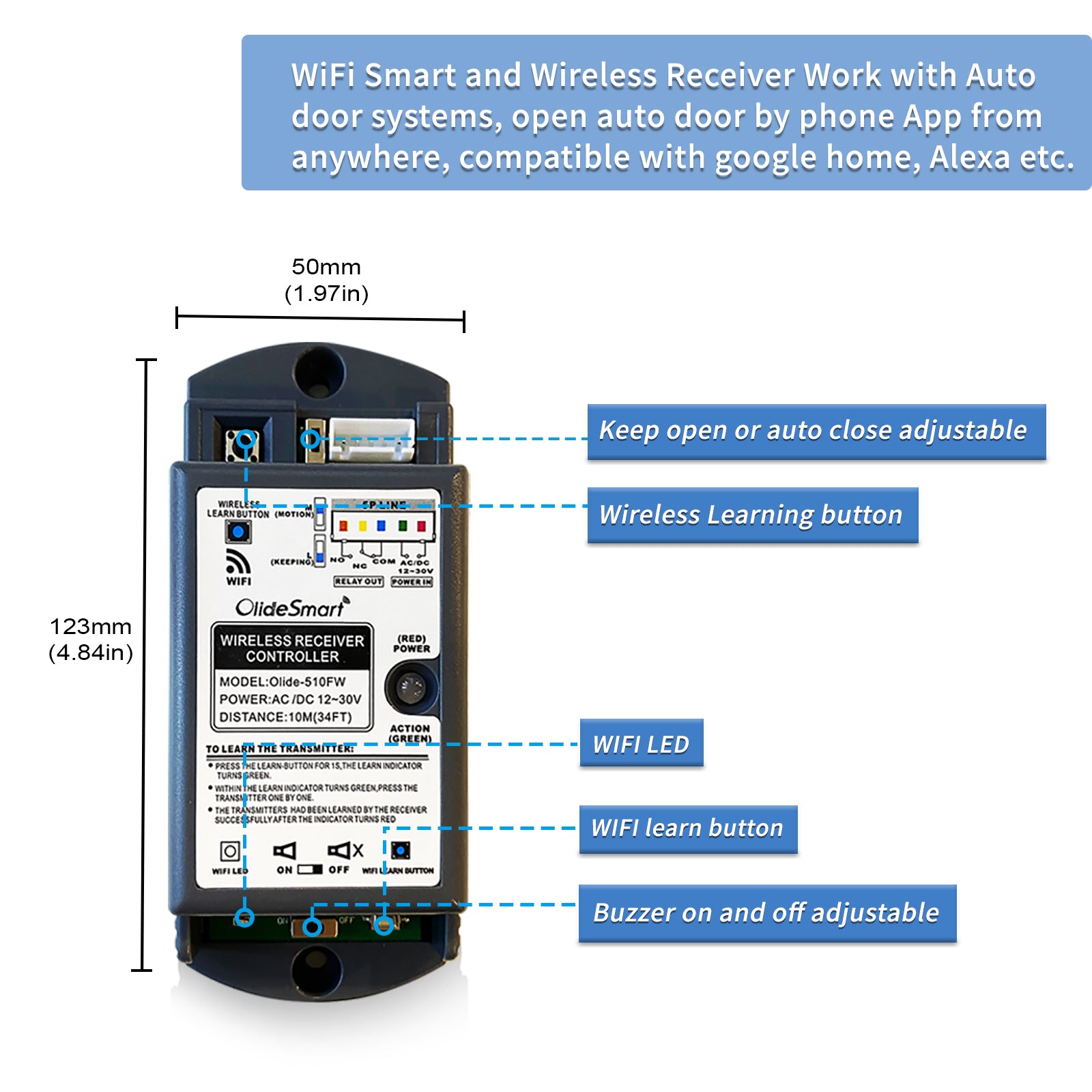

- Wireless Version Supports App Control: The wireless version can be connected to a smartphone app, enabling remote control of the door. This allows for convenient operation from a distance, adding an extra layer of accessibility and security.
Wireless M605MHW Technical Specifications
Power supply | 3V (2pcs 1.5V AAA battery) |
Standby current | <=75uA |
Emission currect | 12mA |
Battery life | 200 times every day, 220days |
Induction distance | 0-30 cm |
Emission distance | more than 30 meters |
External dimension | 86x86x14mm |
Hardwired M605MH Technical Specifications
Power input | AC/DC 12-24V |
Static current | 10mA(DC12V) |
Action current | 43mA(DC12V) |
Relay output | NO/NC |
Relay connect capacity | 1A 24V DC |
Infrared modulation frequency | 38KHz |
Response time | 30ms |
Output holding time | 100ms |
Work environment | -42°C to 45°, 10-90%RH |
Dimension | 86x86mm (panel) |
