Olide AD2000-M Kit For Single Automatic Door

  • $105.01
Shipping calculated at checkout.

Only 99 left!

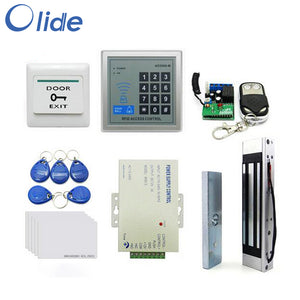

Olide AD2000-M Kit For Single Automatic Door Including

Access Keypad x1pcs, Magnetic Lock x1 pcs, Power Source x1pcs, Remote Controller x1pcs, Door Bell x1pcs, IC Cardx5 pcs, Exit Button x1 pcs

automatic access control kit for single door

Note:

  • This kit is our specific standard suit. Please contact customer service for any changes to the numbers and details of parts.
  • The kit is designed for single door. Please ask customer service for one more lock if it is used for double-door. (The number of holders increases accordingly.)

Product Technical Specifications

1. AD-2000M Card Reader(read card before entering)

Name: Card Reader Model: AD-2000M
Brand: Olide Color: Silver
Operational Voltage: DC12V +-10% Storage Capacity: 1000 cards, one code
Quiescent Current: <=60mA Card Type:  EM(ID) card or cards that are compatible with EM card
Unlocking Current: <=1000mA Reading Distance: 5-15cm
Working Temperature: -10°~+55° Working Humidity: 20%-90%
Dimension: 117*117*21cm

2.Magnetic Lock

Name: Magnetic Lock Model: AD-180GD
Brand: Olide Material: High intensity aluminum alloy
Tensile Strength:

180kg(350LBs)

Linear tension

Manufacturing Technique: Environmental zinc plating treatment
Operational Current: DC12V/300mA Security Type: Power on-lock, power off-unlock
Working Temperature: >=environment temperature-15°C Protective Properties:

Built-in protector

against reversal surge

Suitable Humidity: 0-90% relative humidity Size of Suction Board: 130*33*10cm
Application: Metal/glass/wooden/fire exit door  Suitable Temperature: -10°~+55°(14-131F)
Size of Lock Body: 170*38*20cm



3.Power Supply

Name: Power supply for access controller Model: AD-813
Brand: Olide Color: Silver
Input Voltage: AC 110V-220V  50-60KHz Unlock Delay: 0-15s
Output Voltage: DC12V/3A Working Temperature:  <=environment temperature +20°C
Voltage tuning Value: +/-10% - +/-15% Environment temperature: -20°C-65°C
Stable Load: 1% of the typical value Security Type: Prevent overload, wrong pressing and short circuit
Dimension: 104*68*34cm



4.Exit Button

Name: Exit button(on-off) Model: MC-301
Brand: Olide Color: White
Structure: 86cmx86cm Material: Plastic panel, copper contact
Circuit Junction: COM,NO Manufacturing Technique: Have the panel polished
Electricity: I(max) 3A/36V DC Service Life: More than 500000 pressing times
Application Type: Hollow frame or embedded electrical box Application: Match all kinds of access controllers
Dimension: 86*86*7mm



5.Remote Controller(Door operation is available even if you are not near the door.)

Name: Remote controller Model: AD-W133
Brand: Olide Color: Black
Operational Current: <=6mA Operational Voltage: DC-12V
Working Method: NC,NO Coding Style: Bonding pad
Received Frequency: 315mHZ  433mHZ Size: 50*30*13cm
Receiver Sensitivity: -95DB Application: Doors of rooms/buildings
Control Distance: 10-50m



6.IC Card(press the card on controller for entrance.)

Name: IC card(key ring-shaped) Model: EM-ID
Brand: Olide Color: Blue
Original Card: Have data recorded Chip: 4100ID
Carrier Frequency: 125KHZ Transmitted Frequency:  3.9kbps/THRC12
Induction Distance: 2-10mm Suitable Temperature: -10°~+50°
Packaging Materials: PVC,ABS Size: 36*30*6.6mm
Data Storage Time: >10 years Amount: 5pcs(specific amount refer to customer's requirement)



Standard Installation Method (this kind of door does not need holder.)

standard installation

1.The door frame provide space for magnetic lock installation. Therefore, no need holder.

2.This installation method suits both inward and outward opening doors.

3.Door frame should be more than 40mm for magnetic lock installation.(see picture)

4.Be sure to install the rubber pad when you install the suction boards, which is used for position correction (Refer to the above picture)

Other Installation Methods

  • Parallel Inside-frame (inward opening)

other installation

1.This method requires a set of Z and L-shape holder.

2.This installation method only suits inward opening door.

3.The height of door frame is expected more than 50mm for installation. (see picture)

4.Be sure to install the rubber pad when you install the suction boards, which is used for position correction. (see picture)



  • Glass Door (lower-side is frameless)
glass door installation

1.U-shape holder is needed.

2.This installation method suits both inward and outward opening door.

3.Door frame should be more than 45mm installation. (see picture)

4.The glass door whose thickness is less than 15mm matches U-shape holder.

5.Be sure to install the rubber pad when you install the suction boards, which is used for position correction. (see picture)

Lock Installations

1.Separate lock body from mounting plate by allen wrench.

2.Install mounting plate on the frame.

3.Fix lock body on mounting plate.

4.Place shim and rubber pad in order before suction boards installation.

5.Fix suction boards on the door.(Note: Do not over tighten screws. Room is reserved for rubber expansionfor automatical adjustment and match between suction boards and lock body.)

6.Effect picture for finished product.

Wiring Diagram

wiring diagram

wiring method

wiring diagram
