Olide SD1108 Automatic Garage Door Opener Swing Gate Closer Factory

  • $381.25
Shipping calculated at checkout.

Only 92 left!

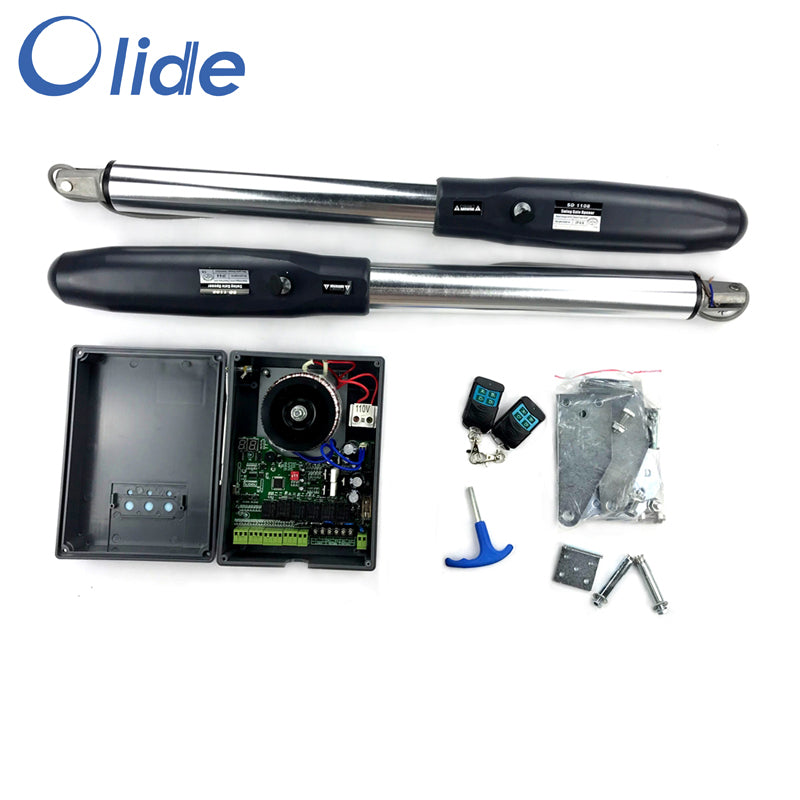

Olide SD1108 Garage Door Openers Include:

One pair electric fence gate opener includes: 2 swing gate openers, 2 remote control transmitters, 1 control box, 1 release key and Mounting accessories.The details plese refer to the following picture.

garage door openers introduction

SD1108 Automatic Swing Gate Opener Manual


Automatic Swing Gate Openers Features

  • High strength screw rotation,reinforced retainer and tailor-made 100% copper special powerful motor, the motor housing is made of integrated aluminum die casting, which is strong and durable, and it can be used for at least 3 years.
  • Professional and international- The product has obtained a number of national patents -- Olide automatic swing gate opener SD1108 includes two core technologies,the first is the mechanical structure (door machine part) which has obtained many national patents,and the second is the completely original electrical control system (controller part).
  • Manual releasy key open, easy to open when power failure.
  • Bad weather applies, applies in -20°C~+50°C. No matter rainy or snowy day can be used.
  • The international professional designer designs the appearance, has the appearance patent, pursues the simple practical, the fashion is generous. Let your door more modern high-end atmosphere.
  • Certificate authentication -- In terms of operation and management, our products have obtained iso9001-2000 quality system certification and passed strict European CE certification- Safety and Reliable.
  • The mode of single arm and double arm can be adjusted , which can realize the function of opening and closing a single door, or the function of opening and closing two doors at the same time.
  • Soft start and soft stop functions effectively reduce the impact on the door body when starting or stopping, lower noise and longer life.
  • New metal telescopic boom, adjustable opening Angle -- the maximum angle will open within 120 degree.  Strong bearing capacity -- Maximum weight within 350kgs(771.6lbs)/leaf.
  • Simple, quick setup and usage Settings.

electric swing gate opener for industry/garage

Control Box Detail

swing gate opener control box

Function Introduction Of Optional Accessories

A. Photo cell
It can detect the tiny obstruction during gate closing or openning and make the gate open automatically. Avoiding people and gate opener from hurting.  The valid detecting range of the photo cell is 10 meters.
B.Caution light
When the person force entering the house, the caution light will light and sound.
C. Access keypad
Connecting with the access keypad, you can set the code or using the card to control the gate access.

D. Electric latch
24V DC latch for additional safety of the gate. Release key to unlock the latch when power failure.

Olide SD1108 Swing Gate Opener Technical Specifications

Model: SD1108
Motor power supply: 24V DC
Rated power: 40W
Rod speed: 1.6 cm/speed
Max leaf width and weight: 3m & 350 kg
Max opening angle: 110°
Operating ambient temp: -20° - +55°
Gross weight: 18kg


Product Wiring Diagram

garage door remote control wiring diagram

Product User Guide

remote garage door opener

How to set transmitter code?

Sw1 and LED1 on the controller, A and B on the remote

SW1: leaening code

LED1: leaening code lamp

A: single-leaf open

B: double-leaf open


Learning process for adding the remote:

Please press Sw1(learning code) on the controller,

then press LED1(learning code lamp) will light on, then release the Sw1(learning code),then press any key on the remote.

If the LED1(learning code lamp) turn on again, which means you add the remote successfully. If no, which means you don't add the remote successfully.


Erasing the transmitter codes:

Press Sw1 (learning code) about 10 seconds, during this 10 seconds. LED1(learning code) light on,then LED1(learning code lamp) will off.

Then release the Sw1(learning code, then LED1(learning code lamp) will off, which means, you erase the remote.
