Olide Wireless Push Touch Switch,Autodoor Motion Switch Supplier

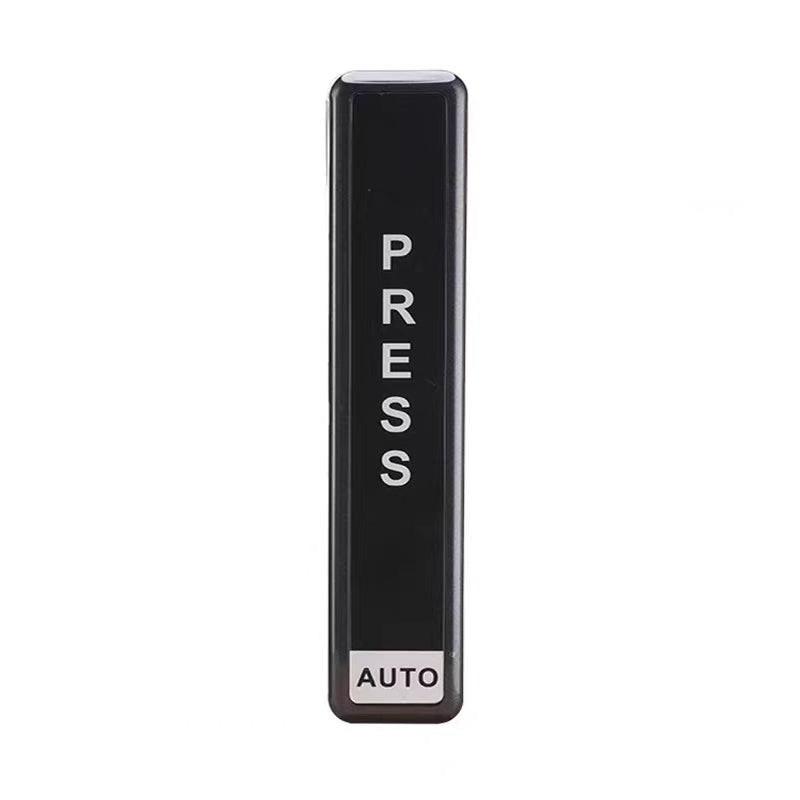

Automatic Door Wireless Touch Button
Product application
High sensitivity FM wireless touch switch is widely used in various types of autodoor and access controller, the wireless touch switch uses wireless wave to transmit signals and autodoor can operate when touching this switch, especially applicable for occasions that embedding wiring is inconvenient. The self-learning sensing is adopted to facilitate user to add any touch switch at any time.General characteristics
- The receiver is provided with a wide input voltage and both AC and DC12-36V power inputs are effective.
- The remote control switch has sound prompt, and the red indicator can turn green, if the selection is effective can be confirmed.
- It adopts the fixing design using captive screws.
- Pu oil shell curing and thick film labeling, exquisite and wear resistance appearance; fixing design using captive screws.
- Wireless and wire options.
Technical Specifications
|
Input voltage (receiver): |
DC12V+/- 5% | Receiver size: | 122.4(L)x50(W)x32(H)mm |
| Touch switch power: | 6V(two 3V button cells) | Touch switch size: |
203(L)x40.5(W)x12(H)mm <long type> 150(L)x40(W)x12.5(H)mm <short type> |
| Transmitting frequency: | 315MHz |
Product Size
We Also Recommend
QUESTIONS & ANSWERS
Ask a Question-
Can this operate two openers simultaneously? It will be used with the double automatic opener?
Yes, if two door openers connected to the same one receiver, the button can open two doors at the same time. And you can also pair to one remote, one remote can pair with multiple devices, they can be operated simultaneously.
-
Will this work with OLIDE-120B DOUBLE AUTOMATIC SWING DOOR OPENER
Yes, it can work with Olide-120B automatic swing door opener.
