Olide-512S Wireless Wave to Open Capacitive Sensor Switch, Non-touch Handicap Button for Automatic Door System

  • $265.89
Shipping calculated at checkout.

Only 100 left!

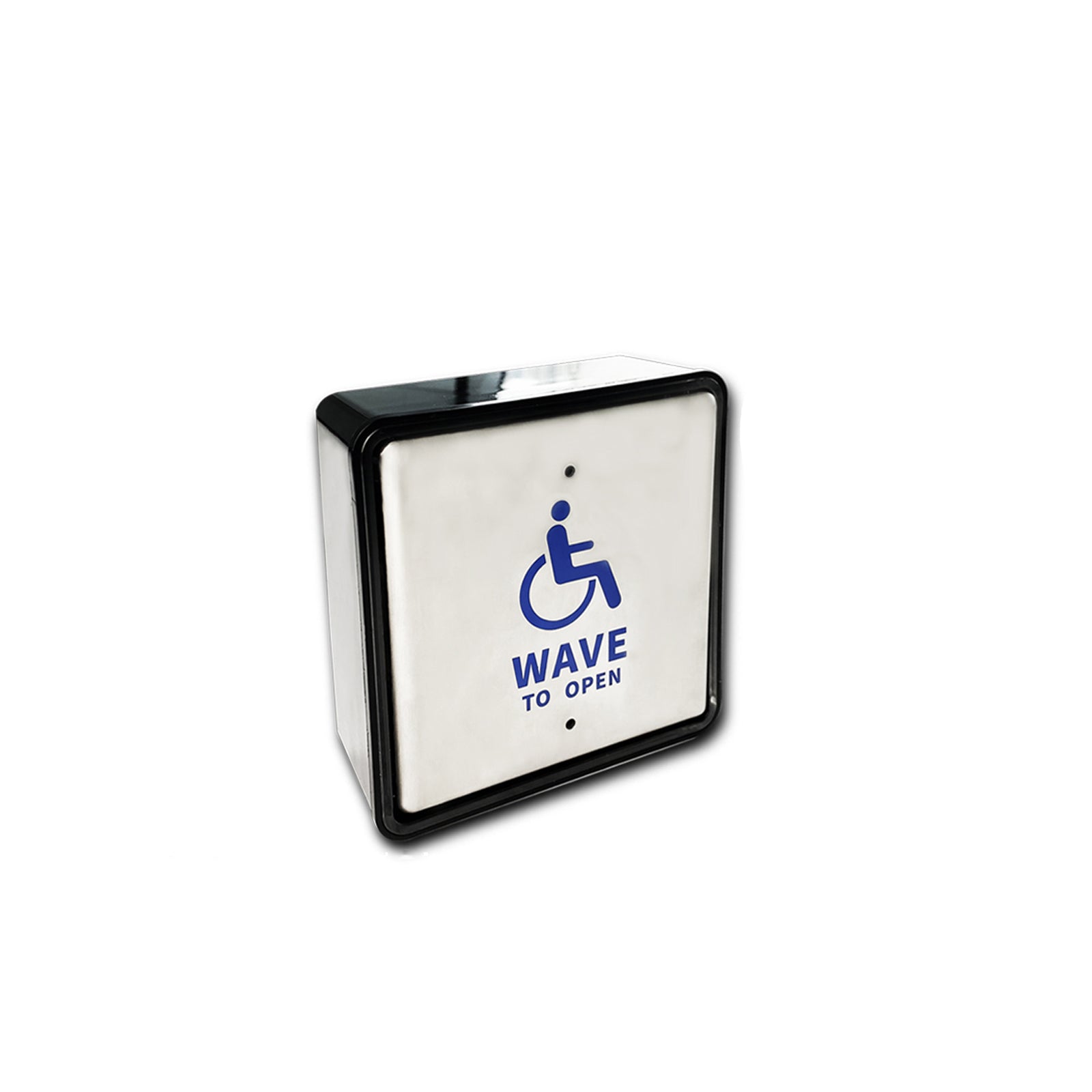

Olide-512S Wireless Wave to Open Capacitive Sensor Switch for Automatic Door System

Expertly navigate your environment with the Olide-512S Wireless Non-touch Button. With its capacitive sensor switch and adjustable sensing distance, easily open doors without physical contact. Its wireless design allows for easy installation and connection to a phone App for remote access. Enhance your daily routine with this innovative technology.

Olide-512S wireless non contact capacitive sensor switch

Olide-512S Capacitive Sensor Switch Features

  • Stainless steel metal large panel design;
  • The imported capacitive sensor chip is used, and the surface metal panel is used as the sensor antenna. The button function is realized by detecting the charge change brought by the human palm and judging the human hand sensing action;
  • Replace the traditional mechanical contact switch, non-contact sensing on the front of the hand, clean and hygienic;
  • Advanced software algorithm, strong anti-interference ability;
  • The sensing distance is adjustable from 0-8CM, and can be adjusted for different occasions;
  • Wireless transmission adopts 2. 4G wireless communication technology, unique frequency hopping technology, and high wireless transceiver stability;
  • Low power consumption sensor panel design, long battery life;
  • The receiver has a large capacity output, which can be used in conjunction with automatic doors and access controllers;
  • After the signal is received, it outputs a 1.5-second door opening signal, and is equipped with receiving LED lights;
  • Receiver wide voltage input design, 12 30V DC power input.

Technical Specifications

Receiver
Power supply DC12-30V
Static current 30mA
Action current 74mA(DC12V power supply)
Main contact capacity 1A   24VDC
Wireless switch
Power supply 6V (4pcs 1.5V AA batteries)
Static current <=50mA
Battery life 500 times/day, can use 330 days
Emission current 12mA
Launch distance >30M
Working temp. -42°C to 45°C
Working humidity 10-90%RH
Size

129L*129W*46H mm   Panel

123L*50W*32H mm    Receiver
