Olidesmart WiFi Wireless Card Reader, Fingerprint Kaypad For Automatic Door System, Phone App Control Access Keypad

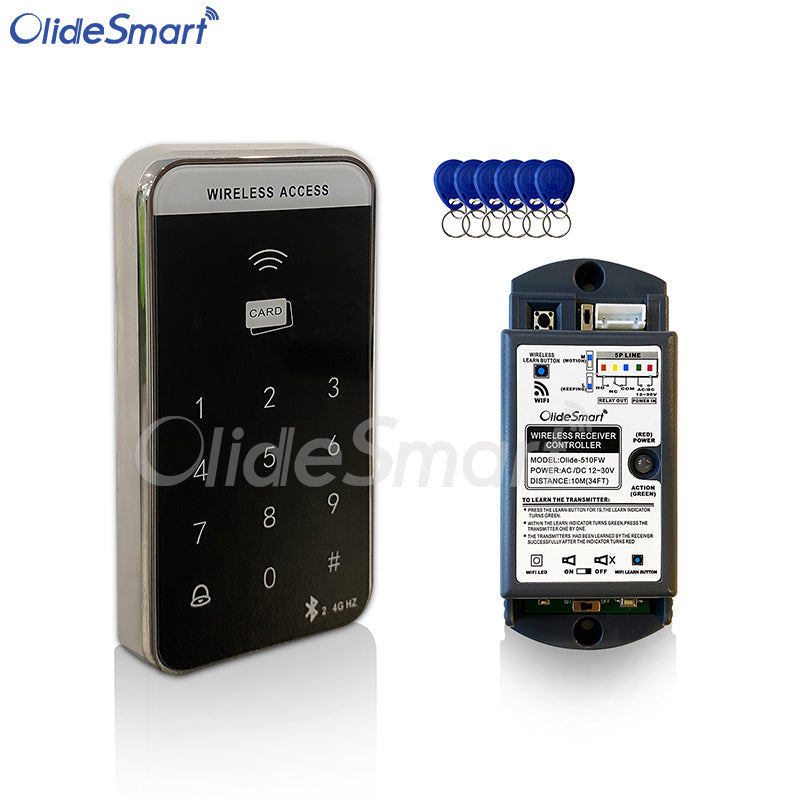

Olidesmart WiFi Wireless Card Reader For Automatic Door System
-
Control your keypad effortlessly through the phone app, allowing you the flexibility to manage access from anywhere. With compatibility with Alexa, you can also enjoy voice control capabilities for a truly hands-free experience.
-
No more hassle of complicated installations or drilling holes, wireless card reader and innovative pair code transmission technology. Say goodbye to tedious wiring and punching steps.
-

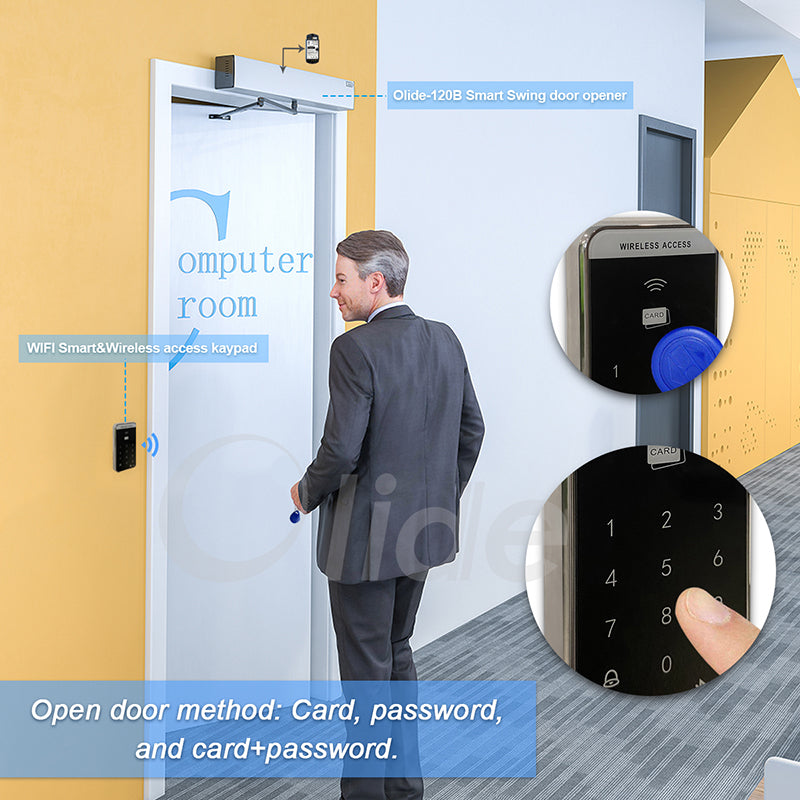

Unlock your door with ease using either a password or card. Choose the method that suits you best for hassle-free entry.
-
Equipped with a smart chip, this keypad ensures high recognition speed and efficient reading, providing you with quick and secure access. It's also designed to be energy-efficient, saving on power consumption while keeping your space safe.
Work with theM510FW receiver
Wireless Access Control Keypad Technical Specifications
| Working Mode: | 2.4G wireless code alignment |
| Working Voltage: | 3V-6.5V (4pcs AAA battery) |
| Low Voltage Alarm: | Voltage lower than 3.3V alarm |
| Static Current: | <=50uA |
| Working Current: | 23MA |
| User Capacity: | 1000pcs standard users (IC cards) |
| Password: | 1pcs public password (4 digits) |
| Open Door Method: | Card, password and card+password |
| Card Type: | 13.56MHZM1 or M1 |
| Read Card Distance: | 10mm-50mm |
| Launch Distance: | 30 meters in no barrier place |
| Battery Life: | >=12 months (100 times a day) |
| Output Time: | 1-99 seconds adjustable |
| Working Temperature: | -10°C-60°C |
| Relative Humidity: | 20%-90% |
M510FW Receiver Technical Specifications
| Wi-Fi function |
Only 2.4GHz routers ca be connected | Power supply |
AC/DC12-30V |
| Static Current: | 65mA/DC12V | Dynamic current | 140mA/DC12V |
| Connection capacity |
3A DC 30V |
External dimension |
123(L)x50(W)x32(H) mm |
Receiver Wiring with Olide120B Automatic Swing Door
We Also Recommend
QUESTIONS & ANSWERS
Ask a Question-
Instructions on programming card readers?
Hi,
I have sent it to your email, please check. -
How do you factory reset the keypad?
For factory reset, please first open the back cover, remove one battery, and press and hold the system button, put the battery in, buzzer rings continuously and both lights flash; Then release the button, the system password is restored to 12345, other data remains unchanged.
-
How do I reprogram my key code?
If you have the model M272 access keypad, after entering the system password, press the key "2" to enter the process of changing the door-opening password, then enter the password you want to change, and then press the bell key to exit; the password is changed successfully.
-
I have several 272 mag locks and have them programed to my alexa but have been able to get the key pad to work,I have no program instructions for key pad only videos on alexa and key card,any help would be great appreciated.
Please reply to this answer, and I'll send you instructions to your email.
-
How do you program the keypad codes, key fobs and cards?!
Hi,
Here is a video you can refer to:
https://www.youtube.com/watch?v=8m_moOaLZQQ
