Olide AD2000-M Kit For Single Automatic Door
Olide AD2000-M Kit For Single Automatic Door Including
Access Keypad x1pcs, Magnetic Lock x1 pcs, Power Source x1pcs, Remote Controller x1pcs, Door Bell x1pcs, IC Cardx5 pcs, Exit Button x1 pcs
Note:
- This kit is our specific standard suit. Please contact customer service for any changes to the numbers and details of parts.
- The kit is designed for single door. Please ask customer service for one more lock if it is used for double-door. (The number of holders increases accordingly.)
Product Technical Specifications
1. AD-2000M Card Reader(read card before entering)
| Name: | Card Reader | Model: | AD-2000M |
| Brand: | Olide | Color: | Silver |
| Operational Voltage: | DC12V +-10% | Storage Capacity: | 1000 cards, one code |
| Quiescent Current: | <=60mA | Card Type: | EM(ID) card or cards that are compatible with EM card |
| Unlocking Current: | <=1000mA | Reading Distance: | 5-15cm |
| Working Temperature: | -10°~+55° | Working Humidity: | 20%-90% |
| Dimension: | 117*117*21cm |
2.Magnetic Lock
| Name: | Magnetic Lock | Model: | AD-180GD |
| Brand: | Olide | Material: | High intensity aluminum alloy |
| Tensile Strength: |
180kg(350LBs) Linear tension |
Manufacturing Technique: | Environmental zinc plating treatment |
| Operational Current: | DC12V/300mA | Security Type: | Power on-lock, power off-unlock |
| Working Temperature: | >=environment temperature-15°C | Protective Properties: |
Built-in protector against reversal surge |
| Suitable Humidity: | 0-90% relative humidity | Size of Suction Board: | 130*33*10cm |
| Application: | Metal/glass/wooden/fire exit door | Suitable Temperature: | -10°~+55°(14-131F) |
| Size of Lock Body: | 170*38*20cm |
3.Power Supply
| Name: | Power supply for access controller | Model: | AD-813 |
| Brand: | Olide | Color: | Silver |
| Input Voltage: | AC 110V-220V 50-60KHz | Unlock Delay: | 0-15s |
| Output Voltage: | DC12V/3A | Working Temperature: | <=environment temperature +20°C |
| Voltage tuning Value: | +/-10% - +/-15% | Environment temperature: | -20°C-65°C |
| Stable Load: | 1% of the typical value | Security Type: | Prevent overload, wrong pressing and short circuit |
| Dimension: | 104*68*34cm |
4.Exit Button
| Name: | Exit button(on-off) | Model: | MC-301 |
| Brand: | Olide | Color: | White |
| Structure: | 86cmx86cm | Material: | Plastic panel, copper contact |
| Circuit Junction: | COM,NO | Manufacturing Technique: | Have the panel polished |
| Electricity: | I(max) 3A/36V DC | Service Life: | More than 500000 pressing times |
| Application Type: | Hollow frame or embedded electrical box | Application: | Match all kinds of access controllers |
| Dimension: | 86*86*7mm |
5.Remote Controller(Door operation is available even if you are not near the door.)
| Name: | Remote controller | Model: | AD-W133 |
| Brand: | Olide | Color: | Black |
| Operational Current: | <=6mA | Operational Voltage: | DC-12V |
| Working Method: | NC,NO | Coding Style: | Bonding pad |
| Received Frequency: | 315mHZ 433mHZ | Size: | 50*30*13cm |
| Receiver Sensitivity: | -95DB | Application: | Doors of rooms/buildings |
| Control Distance: | 10-50m |
6.IC Card(press the card on controller for entrance.)
| Name: | IC card(key ring-shaped) | Model: | EM-ID |
| Brand: | Olide | Color: | Blue |
| Original Card: | Have data recorded | Chip: | 4100ID |
| Carrier Frequency: | 125KHZ | Transmitted Frequency: | 3.9kbps/THRC12 |
| Induction Distance: | 2-10mm | Suitable Temperature: | -10°~+50° |
| Packaging Materials: | PVC,ABS | Size: | 36*30*6.6mm |
| Data Storage Time: | >10 years | Amount: | 5pcs(specific amount refer to customer's requirement) |
Standard Installation Method (this kind of door does not need holder.)

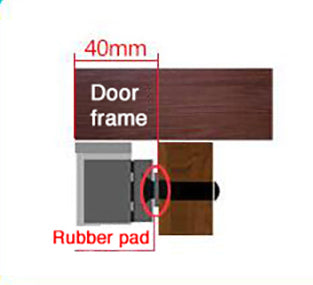

1.The door frame provide space for magnetic lock installation. Therefore, no need holder.
2.This installation method suits both inward and outward opening doors.
3.Door frame should be more than 40mm for magnetic lock installation.(see picture)
4.Be sure to install the rubber pad when you install the suction boards, which is used for position correction (Refer to the above picture)
Other Installation Methods
- Parallel Inside-frame (inward opening)
1.This method requires a set of Z and L-shape holder.
2.This installation method only suits inward opening door.
3.The height of door frame is expected more than 50mm for installation. (see picture)
4.Be sure to install the rubber pad when you install the suction boards, which is used for position correction. (see picture)

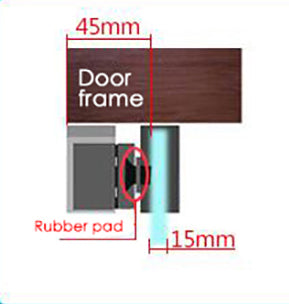

- Glass Door (lower-side is frameless)
1.U-shape holder is needed.
2.This installation method suits both inward and outward opening door.
3.Door frame should be more than 45mm installation. (see picture)
4.The glass door whose thickness is less than 15mm matches U-shape holder.
5.Be sure to install the rubber pad when you install the suction boards, which is used for position correction. (see picture)
Lock Installations
1.Separate lock body from mounting plate by allen wrench.
2.Install mounting plate on the frame.
3.Fix lock body on mounting plate.
4.Place shim and rubber pad in order before suction boards installation.
5.Fix suction boards on the door.(Note: Do not over tighten screws. Room is reserved for rubber expansionfor automatical adjustment and match between suction boards and lock body.)
6.Effect picture for finished product.

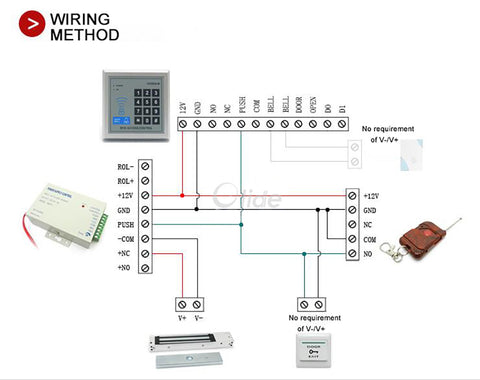

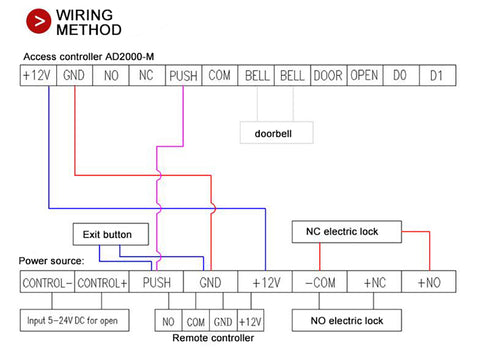

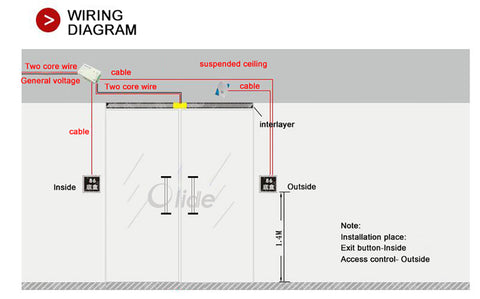

Wiring Diagram
