Control Box For SD1108 Automatic Swing Gate Opener

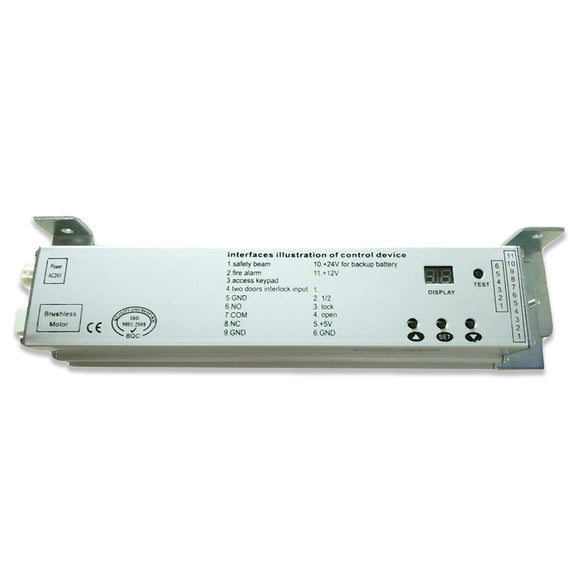

The transformer,control panel and some wires of the opener are included in the control box,please find the picture for reference.

• Soft start and stop, avoid damaging to gate, lower noise and longer service life
•  Adjustable opening/closing interval between master and slave gate.
• Stop/Reverse in case of obstruction during gate opening/closing
• Opening towards outside or inside is available when firstly install, only the direction is fixed,it can not be changed
• Control panel is adjustable to control 1 leaf or 2 leaves.
• Control panel have the terminals for photocell, caution light,IC card reader(access keypad) ,24 V back up battery,push button etc.

1 leaf or 2 leaves opening or closing can be adjusted by control panel

Diagram:

1)."LIGHT" for a flash lamp, 24VDC.

2)."MOTOR1", "MOTOR2" for 2 motors 24VDC.

3)."LIMIT1","LIMIT2" for the magnetic limit switch on motor1,motor2.(It is useful only for the motors with magnetic limit switch.)

4)."PHOTOCELL" for infrared protect device.

5)."BUTTON" for wall switch."PUSH1" control double-leaf gate, step-by-step "PUSH2" control single leaf gate which must be the priority of opening one step-by-step.

6)."E-LOCK" for electronic lock, It can be convected with electronic lock which power is 24VDC.
