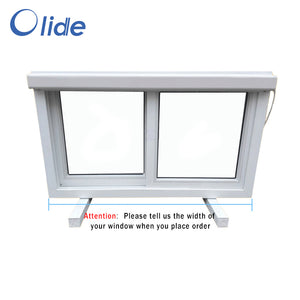

Automatic Sliding Window Opener Length Customizable
Automatic Sliding Window Opener Length Customizable
One complete set window opener include the accessory: window opener housing,chain,motor,bracket,screws,receiver,remote control,the details included in the following picture.
You can connect the electric sliding window opener with all kinds of sensors so that it can open and close automatically when it is rainy and gas leak.
Notice:the automatic sliding window opener can only work with total window width 1.6 meters,limited sliding distance is 5 meters,please contact with us to adjust the price for you if you need longer distance,per meter is $30 more.
Product Features
- The control function of single control or group control.
- Simple and fast installation.
- High-grade,beautiful,generous shell.
- Holographic intelligent digital remote control switch window (additional remote control is required)
- Wind,rain and snow automatically close the window (additional weather sensor is required)
Reasons for purchase:
1.The window could not be closed in time when it rained outside.
2.Thieves patronize, property damage.
3.Go out forget to close the window, distracting me from work.
4.You can't exchange air at home for half a mouth on a business trip.
Sliding Window Opener Technical Specifications
Voltage: | 24V | Push/Pull force: | 200N |
Max working current: | 1.5A | Travel distance: | 0-5000mm |
Driving speed: | 40-60mm/s | Working voltage: | DC24V+-10% |
Ambient temperature: |
-20° - 75°C | Protection grade: | 32IP |
How To Install Sliding Window Opener
Step 1.Ready for all needed tools,and then mount the window opener on the window frame.
Step 2.Close the window.
Step 3.Fix manual accessories.(The srew should be fixed on the groove of the slide track)
Step 4.Fix manual accessories.(The srew should be fixed on the groove of the slide track)
Product Applications
We Also Recommend
QUESTIONS & ANSWERS
Ask a Question-
Will this work on a vertical sliding window?
It can not work on vertical sliding window, it may not be able to drive the window open.
-
Will your sliding window operators work on a 46" wide sliding window (total window width, sliding portion 23")? Thanks
Yes, the rail can be customized, you can leave a note of the window width when placing order.
